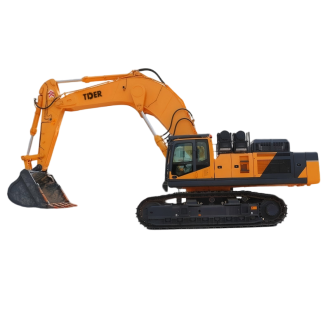

80 Ton Crawler Excavator
TCE800
Features
Ultra-High Output Mining Power Platform
The TCE800 is built on a 336kW Cummins QSX15 high-output power platform, engineered for sustained large-scale mining operations. Combined with a 4m³ ultra-capacity bucket system, the machine is designed to maximize material throughput per cycle, significantly increasing production efficiency in large open-pit and heavy earthmoving projects.
Heavy-Duty Hydraulic Coordination System
A Kawasaki hydraulic pump system integrated with Kawasaki swing and coordinated valve architecture delivers strong hydraulic response and stable multi-action control. This system improves digging force utilization, maintains smooth operational balance under extreme load conditions, and ensures consistent performance during continuous mining cycles.
German Travel Motor with Japanese Swing System
With an O&K travel system combined with Kawasaki swing drive architecture, the TCE800 achieves strong traction performance and controlled rotation stability. This configuration supports precise machine positioning and reliable movement under full-load conditions in large mining and bulk material handling sites.
Reinforced Frame for Extreme Mining Durability
Designed as a heavy mining platform, the TCE800 features a large-scale reinforced structural body with extended dimensional architecture (13m+ class machine frame). This structure enhances torsional resistance and impact durability, ensuring long-term stability in high-intensity excavation and rock handling environments.
Protective Operator Cabin for Mining Safety
The TCE800 is equipped with a reinforced protective operator cabin combined with air conditioning system, designed for long-hour mining operation comfort. The structure improves operator safety awareness while maintaining a controlled working environment in high-temperature and high-dust conditions.
Specifications
| Operating Weight | Kg | 80000 |
| Engine Model | Cummins QSX15 | |
| Rated Power | Kw | 336KW/2100rpm |
| Bucket Capacity | m³ | 4 |
| Max Digging Force | Kn | 325 |
| Swing Speed | rpm | 7.2 |
| Traveling Speed | km/h | 3-4.8 |
| Gradeability | ° | 35° |
| System Working Pressure | Mpa | 34.3 |
| Hydraulic pump | K3V280DH | |
| Boom Length | mm | 7100 |
| Arm length | mm | 3020 |
| Operating Range | ||
| Max. Digging Radius | mm | 11762 |
| Max. Digging Depth | mm | 6868 |
| Max. Digging Height | mm | 11762 |
| Max. Dumping Height | mm | 7642 |
| Max. vertical digging depth | mm | 5070 |
| Overall Dimensions | ||
| Overall Length | mm | 13104 |
| Overall Width | mm | 4256 |
| Overall Height | mm | 3530 |
| Mini.Ground Clearance | mm | 602 |
| Track Width | mm | 650 |
| Axle base(Track length on ground) | mm | 4021 |
| Track Gauge | mm | 2760 |
| Swing radius at tail | mm | 3760 |

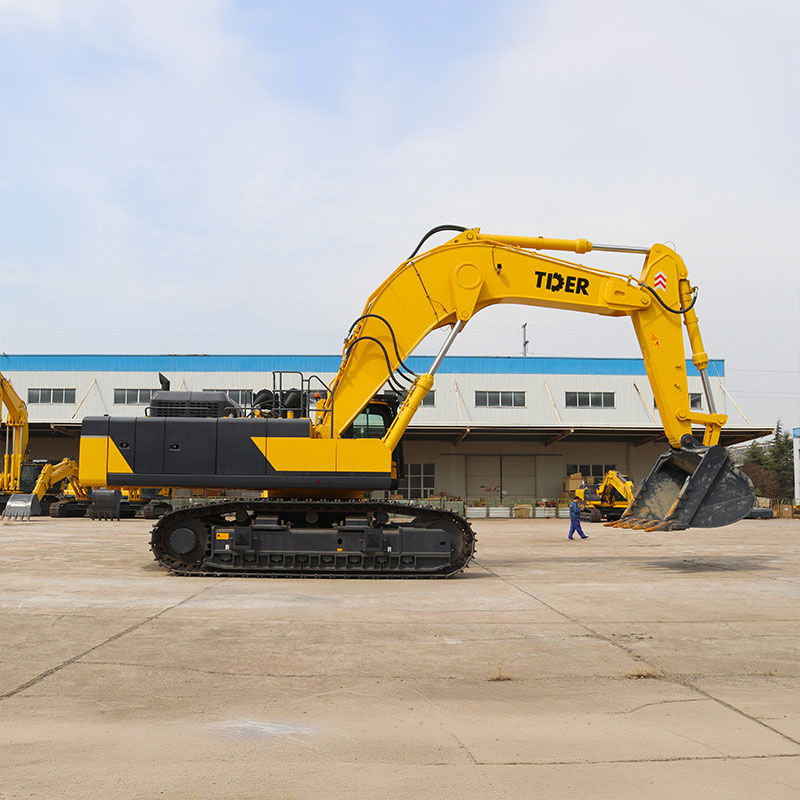

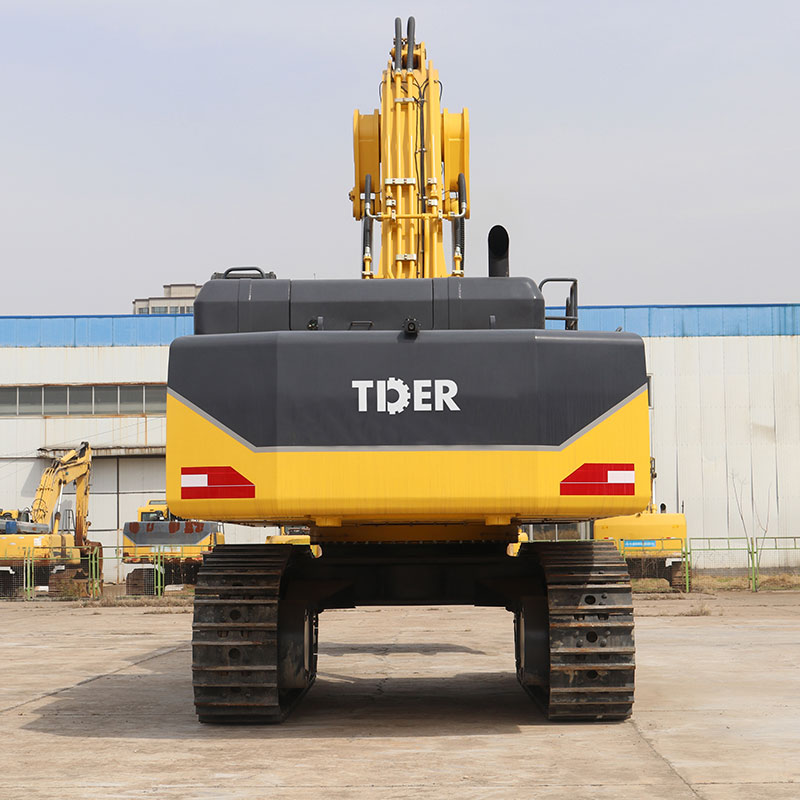

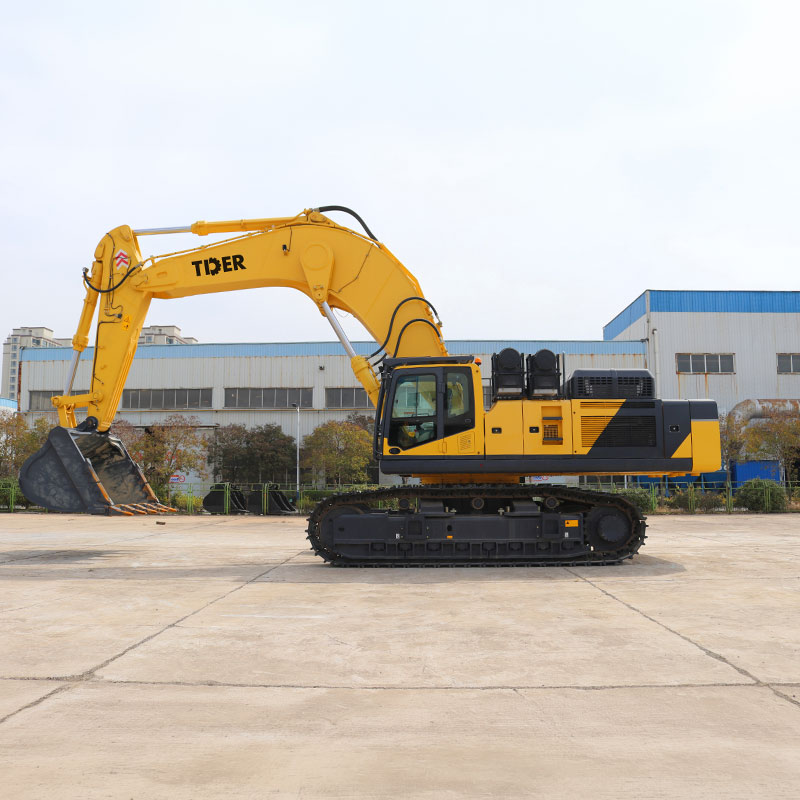

Product Showcase
