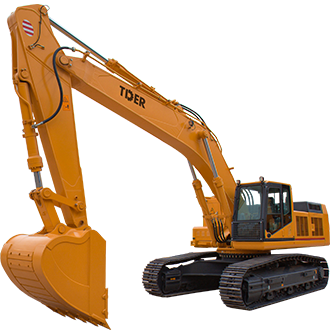

Name: 48 Ton Electric Mining Excavator with Dual Bucket Options
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

48-Ton Platform for High-Volume Excavation

The TCE480EV is a 48-ton electric mining excavator with a 200 kW electric motor, providing the machine capacity required for demanding excavation and material-handling operations. Its large machine platform is designed to support continuous work on demanding job sites.

Dual Bucket Options for Different Materials

The machine can be configured with either a 2.8 m³ soil bucket or a 2.3 m³ rock bucket, allowing the working attachment to match the material being excavated. This gives contractors greater flexibility when moving between general earthmoving and rock-oriented applications without changing the base machine.

Kawasaki KPM Hydraulic System for Coordinated Control

The TCE480EV uses Japanese Kawasaki KPM main pumps and main valve, together with a Kawasaki KPM swing motor. The matched hydraulic components support coordinated digging, swinging and attachment movements, giving the operator predictable control of the machine.

Variable-Frequency Drive for Efficient Power Use

The electrical system uses a variable-frequency drive to adjust motor operation according to electrical conditions and power demand. Variable-speed operation helps reduce unnecessary power consumption while maintaining efficient electric drive performance.

Independent Motor Cooling for Easier Service

The 200 kW main electric motor uses imported bearings and an independent axial-flow fan. This cooling arrangement supports reliable motor operation while keeping the motor structure practical for inspection and routine servicing.

Central Collector for Organized Tethered Power

The central collector serves as the transfer point between the upper and lower electrical circuits. It helps organize the external power connection and reduces the risk of cable short circuits and entanglement during tethered operation.

Extended Working Range for Deep and High-Level Excavation

The TCE480EV-Tethered offers a 10,880 mm maximum digging height, 7,605 mm dumping height and 7,758 mm digging depth. Combined with its 48-ton platform, this working range supports demanding excavation and high-volume material-handling operations.

Specifications

Basic Specifications	Operating Weight	t	48
	Bucket Capacity (Earthmoving Bucket)	m³	2.8
	Bucket Capacity (Rock Bucket)	m³	2.3
Electric Motor	Electric Motor Model	—	YVF315L2-4
	Rated Power / Speed	kW / rpm	200 / 1800
	Rated Voltage	V	380
Travel & Performance	Travel Speed (High / Low)	km/h	4 / 2.3
	Swing Speed	r/min	7.5
	Gradeability	°	35
	Bucket Digging Force (ISO)	kN	256
	Arm Digging Force (ISO)	kN	212
	Ground Pressure	kPa	88.5
	Traction Force	kN	404
Hydraulic System	Hydraulic Pump Model	—	K5V200TH
	Maximum Flow Rate	L/min	300 × 2 + 22.5
	Working Pressure	MPa	34.3
	Hydraulic Tank Capacity	L	360
Overall Dimensions	Overall Length	mm	12180
	Overall Width	mm	3340
	Overall Height (Boom Top)	mm	3640
	Overall Height (Cab Top)	mm	3280
	Counterweight Ground Clearance	mm	1300
	Minimum Ground Clearance	mm	722
	Tail Turning Radius	mm	3845
Undercarriage	Track Grounding Length	mm	4378
	Track Length	mm	5390
	Track Gauge	mm	2740
	Track Width	mm	3340
	Track Shoe Width	mm	600
	Turntable Width	mm	3045
Working Range	Maximum Excavation Height	mm	10880
	Maximum Dumping Height	mm	7605
	Maximum Excavation Depth	mm	7758
	Maximum Vertical Wall Excavation Depth	mm	—
	Maximum Excavation Depth at 2.5 m Horizontal Plane	mm	—
	Maximum Excavation Distance	mm	11970
	Maximum Excavation Distance on Ground	mm	11815
	Minimum Turning Radius	mm	4825
	Maximum Height at Minimum Turning Radius	mm	9250
Upper Structure	Distance from Rotation Center to Rear End	mm	3845
	Track Tooth Thickness	mm	36
	Counterweight Height	mm	2835
Transportation	Grounding Length During Transportation	mm	6650
Dozer Blade	Dozer Blade Width	mm	/
Front Attachment	Arm Length	mm	3380
Front Attachment	Boom Length	mm	7060

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

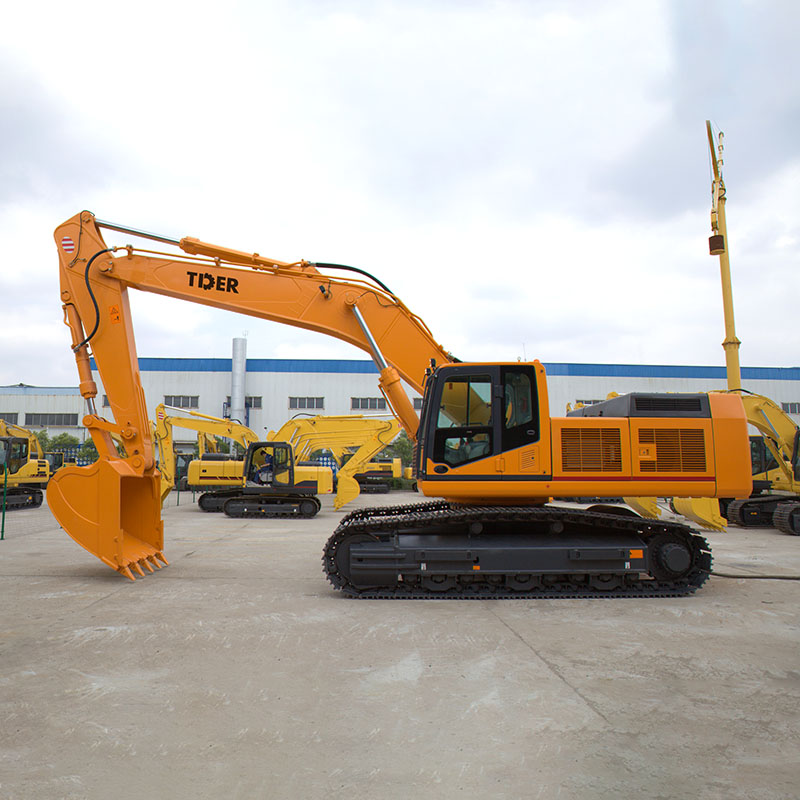

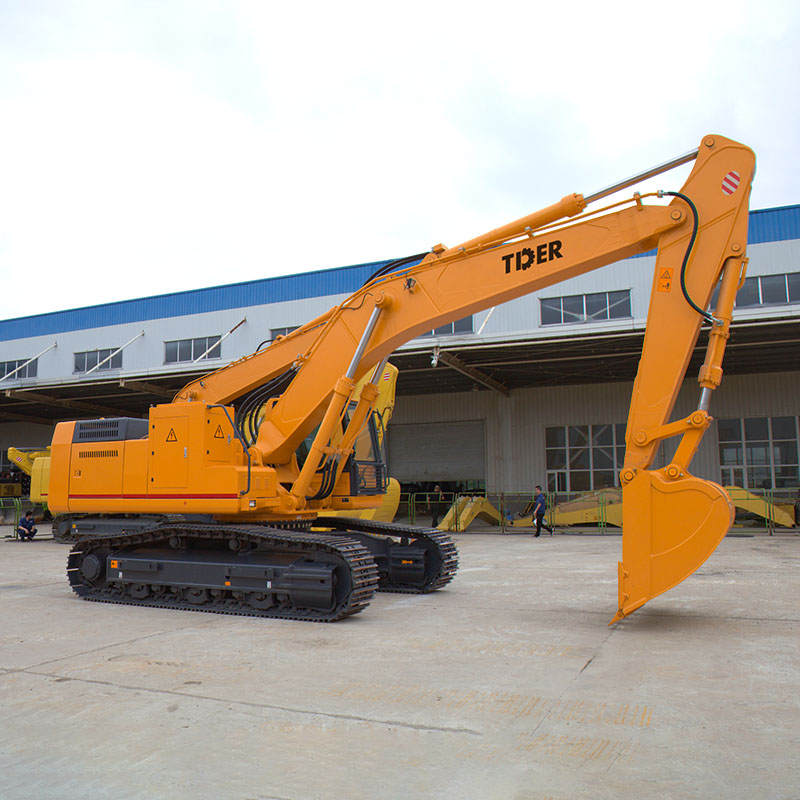

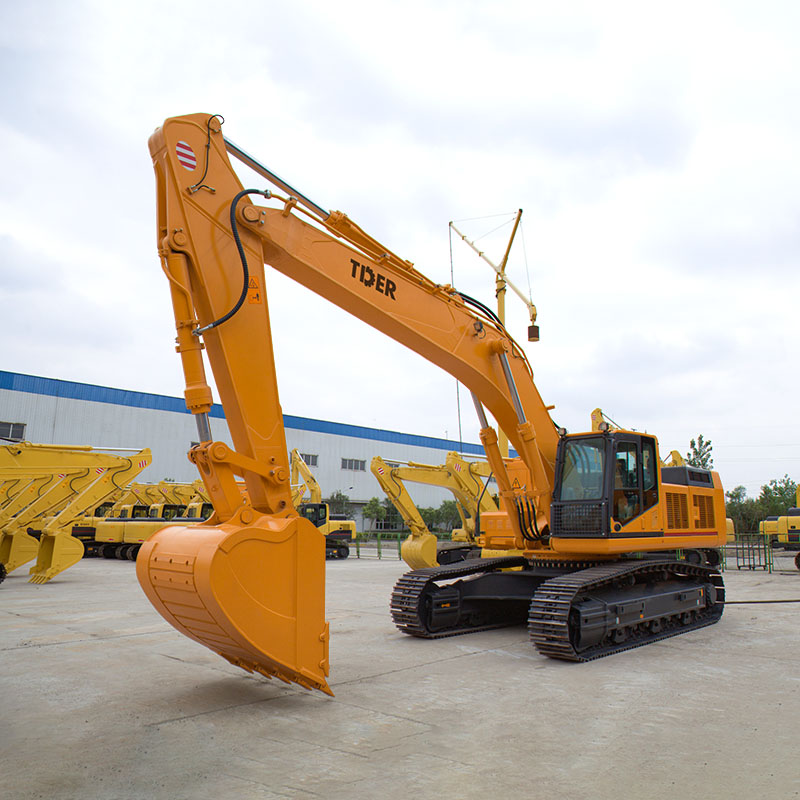

Product Showcase
