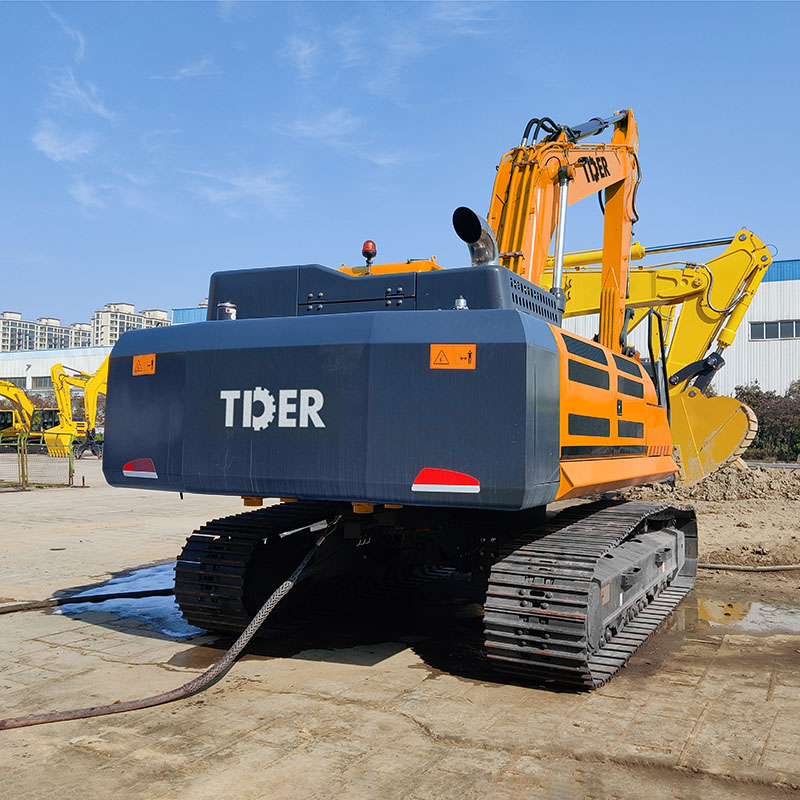

Name: 24 Ton Tethered Electric Excavator with 70% Energy Savings
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Zero-Emission Electric Power

Powered directly by electricity, the TCE240EV produces zero tailpipe emissions and lower operating noise than conventional diesel excavators, making it suitable for work areas where emissions and noise need to be controlled.

Up to 70% Lower Energy Consumption

Under the same working conditions, the electric power system can achieve up to 70% lower energy consumption compared with a diesel-powered system, helping reduce energy costs during continuous excavation operations.

Minimal Maintenance for the Electric Powertrain

The electric drive system significantly simplifies routine maintenance. The main motor requires only bearing lubrication every 2,000 operating hours under normal conditions, reducing regular service requirements and maintenance workload.

Safer Electrical System with Four-Pole Leakage Protection

The electrical control cabinet uses a four-pole leakage protection device to provide comprehensive electrical protection. Combined with the central collector, the system helps reduce the risks of electrical short circuits and cable tangling during tethered operation.

Soft Start and Flexible Cable Management

The CMC-MX soft starter reduces starting current and required power-distribution capacity, while cable reels and cable-boom configurations provide flexible ways to manage the external power cable. Together, these features make the tethered power system easier to operate across different job-site layouts.

Specifications

Basic Specifications	Operating Weight	t	24
Basic Specifications	Bucket Capacity	m³	1.2–1.4
Electric Motor	Electric Motor Model	—	YVE3-315M-4
	Rated Power / Speed	kW / rpm	90–132 / 1480
	Rated Voltage	V	—
Travel & Performance	Travel Speed (High / Low)	km/h	5.2 / 3.5
	Swing Speed	r/min	11.1
	Gradeability	°	35
	Bucket Digging Force (ISO)	kN	151
	Arm Digging Force (ISO)	kN	115
	Ground Pressure	kPa	48.6
	Traction Force	kN	174
Hydraulic System	Hydraulic Pump Model	—	AP4VO140
	Maximum Flow Rate	L/min	280 × 2
	Working Pressure	MPa	34.3
	Hydraulic Tank Capacity	L	246
Overall Dimensions	Overall Length	mm	9740
	Overall Width	mm	2980
	Overall Height (Boom Top)	mm	3190
	Overall Height (Cab Top)	mm	3120
	Counterweight Ground Clearance	mm	1065
	Minimum Ground Clearance	mm	442
	Tail Turning Radius	mm	2810
Undercarriage	Track Grounding Length	mm	3640
	Track Length	mm	4450
	Track Gauge	mm	2380
	Track Width	mm	2980
	Track Shoe Width	mm	600
	Turntable Width	mm	2700
Working Range	Maximum Excavation Height	mm	9310
	Maximum Dumping Height	mm	6438
	Maximum Excavation Depth	mm	6875
	Maximum Vertical Wall Excavation Depth	mm	5860
	Maximum Excavation Depth at 2.5 m Horizontal Plane	mm	6680
	Maximum Excavation Distance	mm	10170
	Maximum Excavation Distance on Ground	mm	9990
	Minimum Turning Radius	mm	3975
	Maximum Height at Minimum Turning Radius	mm	7775
Upper Structure	Distance from Rotation Center to Rear End	mm	2810
Upper Structure	Counterweight Height	mm	2120
Transportation	Grounding Length During Transportation	mm	5257
Dozer Blade	Dozer Blade Width	mm	3050
Front Attachment	Track Tooth Thickness	mm	26
	Arm Length	mm	3050
	Boom Length	mm	5850
Hydraulic Cylinders	Boom Cylinder Bore × Rod Diameter × Stroke	mm	130 × 90 × 1275
	Arm Cylinder Bore × Rod Diameter × Maximum Stroke × Minimum Stroke	mm	140 × 100 × 1635
	Bucket Cylinder Bore × Rod Diameter × Stroke	mm	130 × 90 × 1020

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

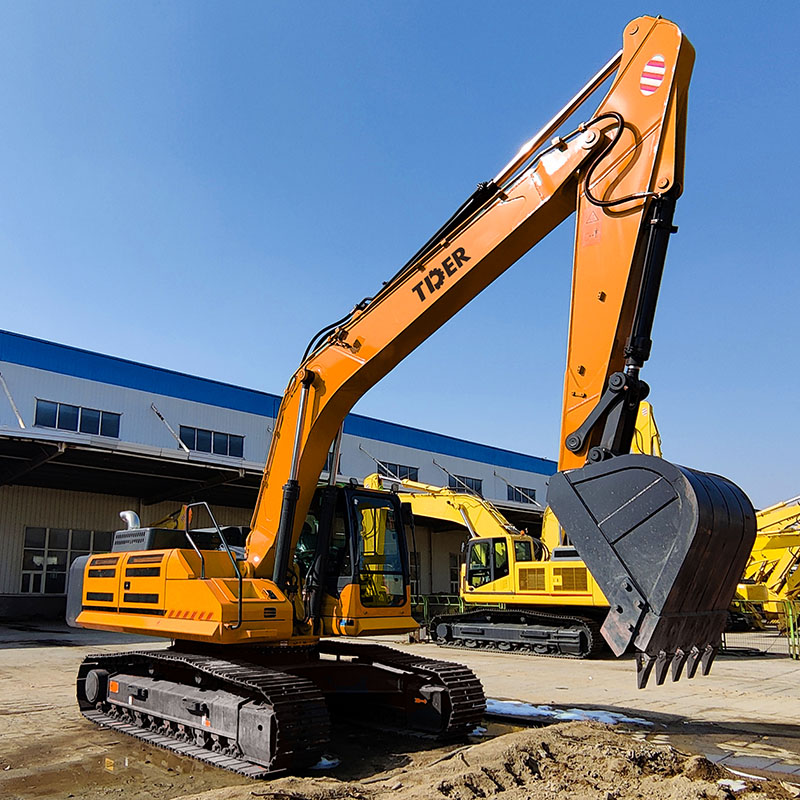

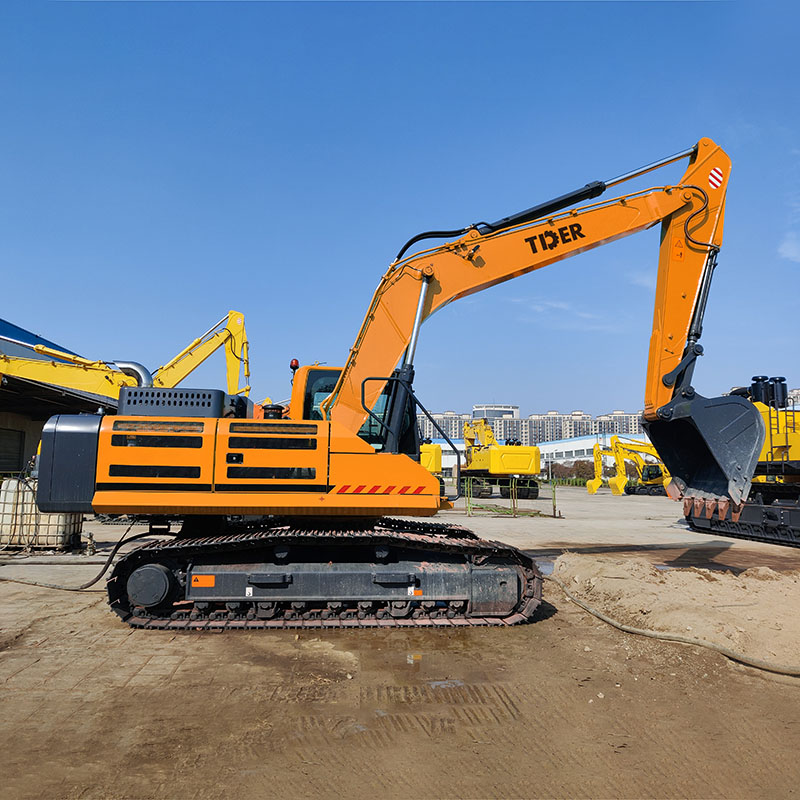

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
