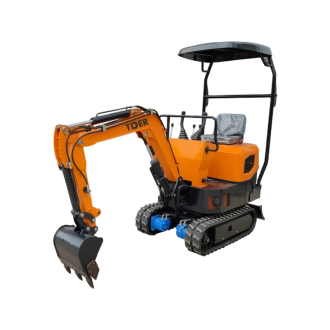

1 Ton Mini Excavator
TCE10
Features
Reinforced Structural Design Engineered for Extended Service Life
Based on finite element analysis optimization, the TCE10 features an improved undercarriage and working arm structure that enhances durability under repeated digging cycles. This reinforced design helps reduce structural fatigue over time, making the machine more reliable for long-term use in small construction and agricultural applications.
Flexible Engine and Track Configuration for Different Jobsite Needs
To adapt to different working environments, the TCE10 offers optional configurations including gasoline engines and Kubota EPA/Euro V dual-compliance engines. Users can also choose between rubber tracks or steel tracks, allowing the machine to perform effectively on both finished surfaces and rugged terrain conditions.
Hydraulic Readiness with Standard Breaker Line for Multi-Use Applications
Equipped with standard breaker piping, the TCE10 is ready for hydraulic attachments such as breakers, expanding its functionality beyond digging. Combined with a hydraulic oil cooler system, the machine maintains stable performance during continuous operation, making it suitable for light demolition, trenching, and utility maintenance tasks.
Compact Control Layout with Practical Operator Protection
The TCE10 comes standard with a canopy design that provides basic operator protection while maintaining excellent visibility. The simple mechanical control system ensures easy operation, while the compact layout allows precise maneuvering in confined spaces such as gardens, orchards, and urban job sites.
Specifications
| Operating Weight | Kg | 1000 |
| Engine Model | KOOP192F | |
| Rated Power | Kw | 10.3 |
| Bucket Capacity | m³ | 0.02 |
| Bucket Width | mm | 400 |
| Max Digging Force | Kn | 10.3 |
| System Working Pressure | Mpa | 18 |
| Swing Speed | rpm | 12 |
| Traveling Speed | km/h | 2 |
| Gradeability | ° | 30 |
| Ground Pressure | Kpa | 22 |
| Operating Range | ||
| Max. Digging Distance | mm | 2450 |
| Max. Digging Depth | mm | 1320 |
| Max. Digging Height | mm | 2500 |
| Max. Dumping Height | mm | 1820 |
| Min. Swing Radius | mm | 1190 |
| Overall Dimensions | ||
| Overall Length | mm | 2200 |
| Overall Width | mm | 940 |
| Overall Height | mm | 2150 |
| Min. Ground Clearance | mm | 380 |
| Track Ground Length | mm | 1200 |
| Track Width | mm | 180 |
