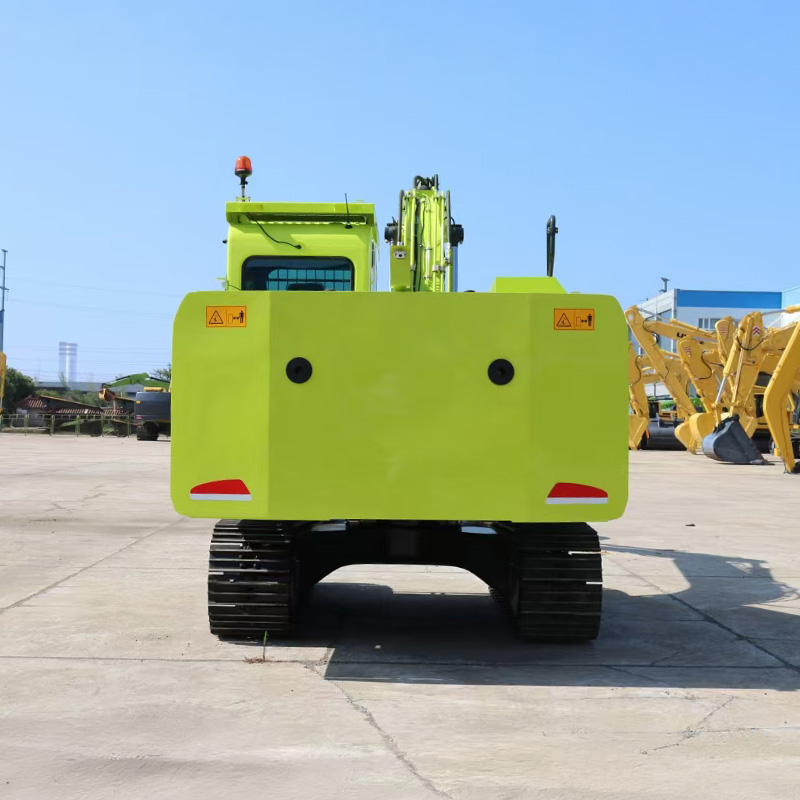

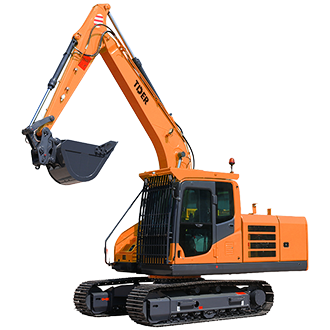

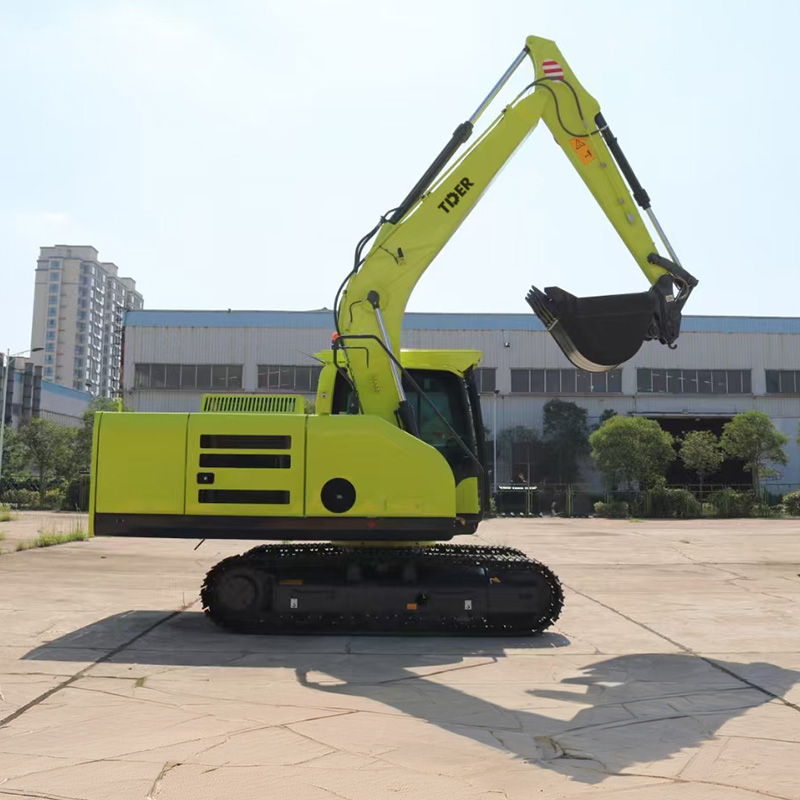

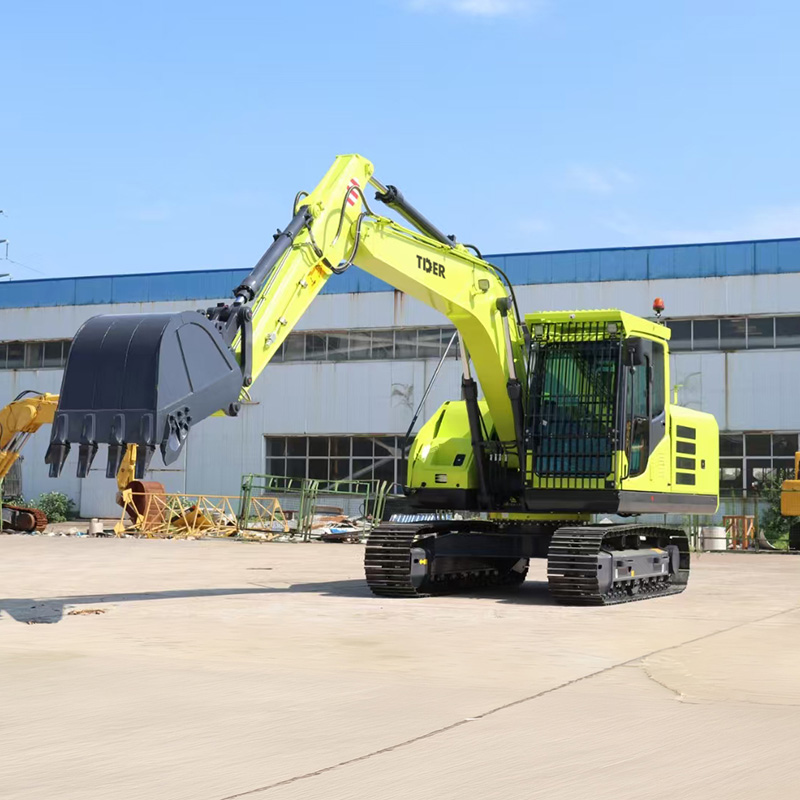

Name: 13 Ton Chinese Electric Excavators with Kawasaki Hydraulic System
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Electric High-Efficiency Excavation System

The 37kW 380V grid-powered electric drive system delivers consistent high-torque output with optimized energy transmission, ensuring stable excavation performance under continuous heavy-duty working conditions. Its zero-emission and low-noise operation makes it suitable for urban construction, tunnels, and environmentally sensitive job sites.

Kawasaki KPM Hydraulic Power System

Equipped with Kawasaki KPM main pump, control valve, and rotary motor system, the hydraulic platform ensures stable high-flow output with strong resistance to contamination. It delivers precise and responsive control performance, maintaining reliability in dusty, high-temperature, and harsh excavation environments.

Independent Dual Cooling Architecture

The machine adopts a fully independent cooling system for hydraulic oil and electric drive components, reducing thermal interference and improving heat dissipation efficiency. This ensures stable operation during long-hour continuous excavation and heavy-load working cycles.

Heavy-Duty Excavation Structure System

A reinforced boom and frame structure combined with a 0.53–0.65m³ bucket provides strong digging force and excellent material handling efficiency. The system is engineered for continuous impact resistance, supporting mining, earthmoving, and large-scale construction applications.

Operator Comfort and Full Visibility Cabin

The ROPS-certified cabin features panoramic glass design for improved jobsite visibility and reduced blind spots. Ergonomic controls, air-conditioning system, and suspension seat work together to reduce operator fatigue and enhance precision during extended operation.

Reinforced Undercarriage Stability System

Equipped with 500mm steel tracks and 7 carrier rollers, the reinforced undercarriage improves ground contact stability and load distribution. It ensures reliable performance on uneven, high-resistance, and complex terrain conditions

Specifications

Total Weight	kg	13000
Bucket capacity		0.53-0.65m³
Motor model		YE-225S-4 VE1（37KW）
Rated voltage	V	380
Max displacement	L/min	128*2
Working pressure	Mpa	34.3
Hydraulic tank volume	L	130
Walking speed (high/low)	km/h	5.3/3.1
Swing speed	r/min	12.6
Climbing ability	°	35
Bucket excavation force	KN	64
Arm digging force	KN	80
Ground specific voltage	KPa	38
Traction force	KN	86
Max. excavation height	mm	8630
Max. unloading height	mm	6180
Max. excavation depth	mm	5501
Max. vertical arm mining depth	mm	4940
The distance when digging 2.5 horizontal plane	mm	5287
Max. excavation distance	mm	8309
Min. turning radius	mm	2495
Max. height at Min. turning radius	mm	6433
Total length	mm	7576
Counterweight ground clearance	mm	870
Min. ground clearance	mm	433
Track grounding length	mm	2750
Track length	mm	3480
Rail gauge	mm	1960
Track width	mm	2460
Arm length	mm	2500
Boom length	mm	4600

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
