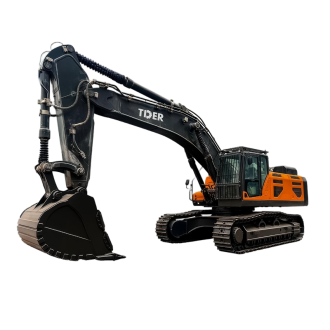

Name: 60 Ton Crawler Excavator with High Flow System
Availability: InStock

Features
Specifications
Product Showcase
Gallery
FAQs
Related Products

Features

Mining Power System with Cummins Engine

Powered by the Cummins QSM11 6-cylinder engine (298kW/2000rpm), the TCE600 delivers strong and stable torque output for continuous heavy-duty mining operations. With wet cylinder liner design and advanced four-stroke architecture, it enhances durability, reduces operating noise, and improves fuel efficiency while maintaining reliable performance under extreme load conditions. For different market requirements, the machine also supports optional engine configurations including Perkins, Weichai, and Fiat power systems, allowing flexible compliance with emission standards and working preferences across global mining applications.

Rexroth Hydraulics for Fast Response and Precise Control

Equipped with an imported Rexroth A8VO225 variable displacement main pump and RCS35 electro-hydraulic control valve, the TCE600 provides higher flow capacity and faster system response. This advanced hydraulic architecture ensures precise control, smooth multi-action coordination, and improved digging efficiency in demanding mining environments.

Advanced Hydraulic Cooling Architecture

The TCE600 is equipped with an independent hydraulic cooling design featuring variable fan speed regulation based on real-time oil temperature. This system optimizes thermal balance, reduces unnecessary energy consumption, and maintains stable hydraulic performance even under extreme ambient conditions up to 40°C, ensuring consistent output during long-hour mining operations.

High-Capacity Triple Filtration System for Fuel Adaptability

A large-capacity three-stage fuel filtration system (over 600L flow capacity) ensures strong adaptability to different fuel qualities. It effectively protects the engine and hydraulic components from contamination, improving system durability and reducing maintenance risks in remote or harsh mining sites.

Kawasaki Dual Swing Motors for High Torque Rotation

Fitted with dual Kawasaki 130 swing motors, the TCE600 delivers stronger rotational force and smoother swing performance. This enhances efficiency in loading, leveling, and material repositioning tasks, ensuring stable operation under heavy bucket loads and continuous cycle work.

Reinforced Undercarriage with Double-Grouser Track System

Built with double-grouser track shoes, reinforced anti-drop chain guards, and an X-structure heavy-duty undercarriage, the TCE600 provides superior ground grip and structural strength. This design significantly improves durability and stability in rocky, muddy, and high-impact mining environments.

Specifications

Operating Weight	Kg	60000
Engine Model		Cummins QSM11
Rated Power	Kw	298KW/2000rpm
Bucket Capacity	m³	3
Max Digging Force	Kn	325
Swing Speed	rpm	0-11
Traveling Speed	km/h	2.4-4.4
Gradeability	°	35°
System Working Pressure	Mpa	35
Boom Length	mm	6500
Arm length	mm	2550
Operating Range
Max. Digging Radius	mm	10726
Max. Digging Depth	mm	5756
Max. Digging Height	mm	11142
Max. Dumping Height	mm	7779
Max. vertical digging depth	mm	5064
Overall Dimensions
Overall Length	mm	11690
Overall Width	mm	3360
Overall Height	mm	3810
Mini.Ground Clearance	mm	602
Track Width	mm	600
Axle base(Track length on ground)	mm	4021
Track Gauge	mm	2760
Swing radius at tail	mm	3760

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

Gallery

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
