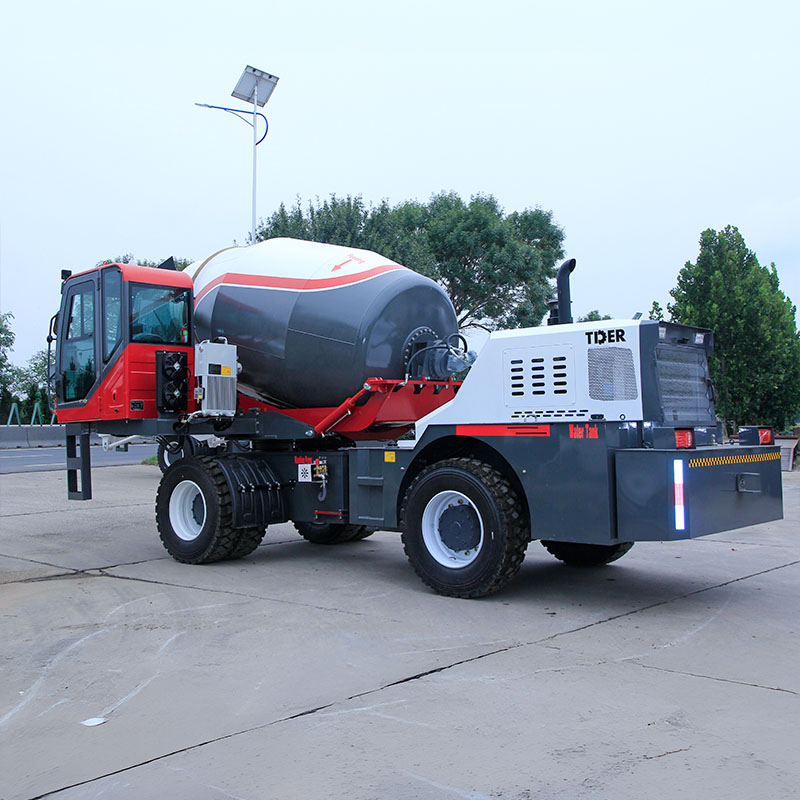

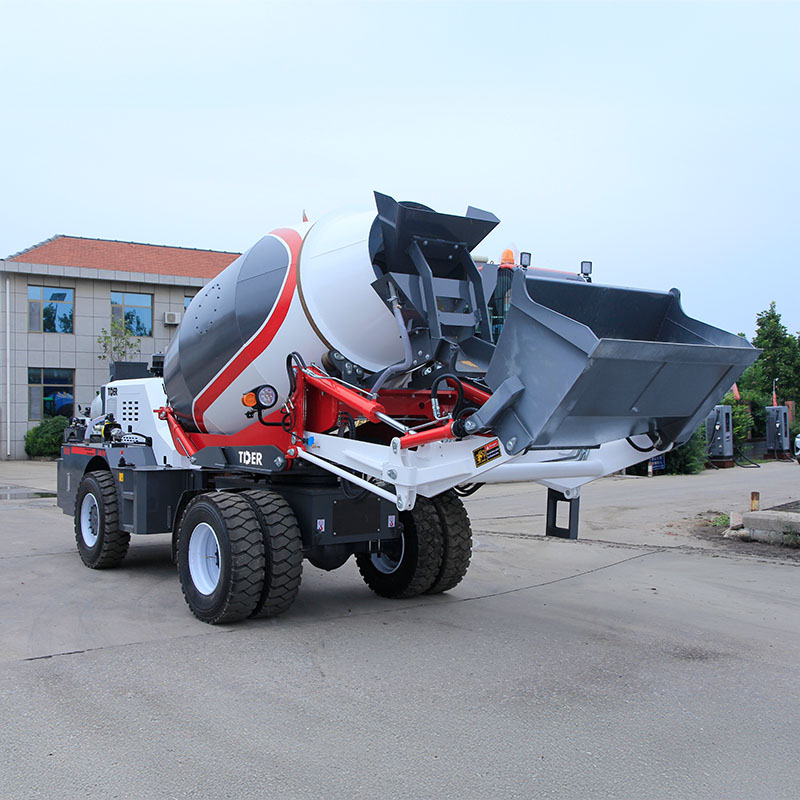

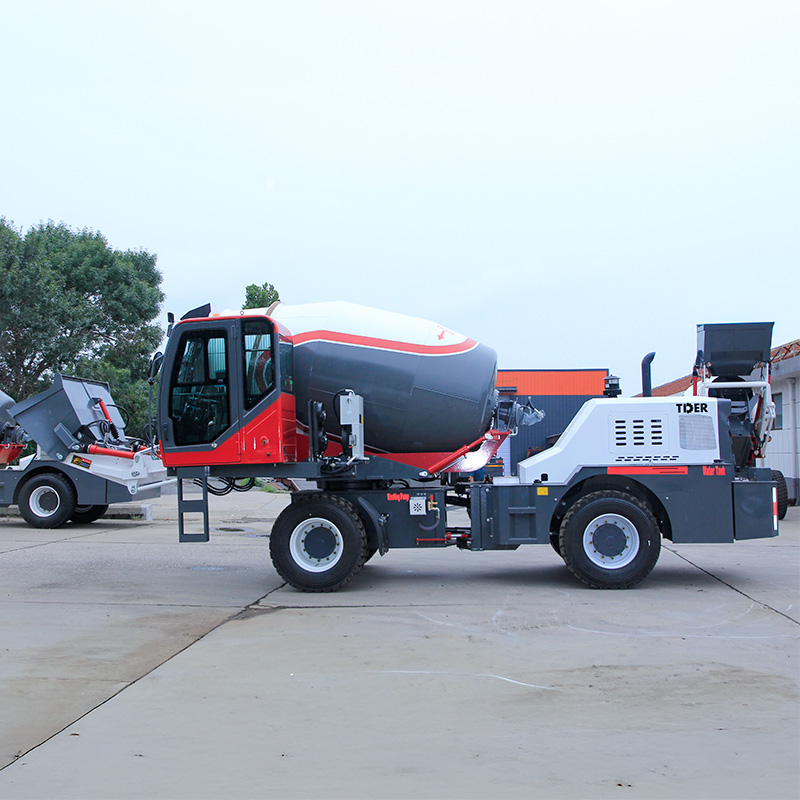

5.0m³ Concrete Mixer Truck
TCM50
Features
Dual-Drive Capability for Limited-Space Operations
The TCM50 features a synchronized cabin and drum rotation system that enables dual-direction driving. By rotating the cabin and switching the steering mode, operators can drive back in the opposite direction without turning the machine around, making it ideal for narrow roads, mountain areas and sites where turning space is limited.
Large-Scale Concrete Supply Capability
The TCM50 is designed for projects requiring a continuous concrete supply on site. Its large mixing capacity and high-volume discharge capability help reduce interruptions between mixing, transportation and pouring, supporting smoother workflow for infrastructure and large construction projects.
Heavy-Load Transport Confidence
The reinforced transport system is designed to maintain stability when carrying large concrete loads across construction sites, supporting safer movement between material areas and pouring locations.
Professional Operator Environment
The spacious operator environment with pilot controls and digital monitoring helps operators manage multiple functions efficiently during extended production cycles.
Specifications
| Overall Dimensions | mm | 7360 × 3100 × 4640 |
| Wheelbase | mm | 3200 |
| Operating Weight | kg | 12500 |
| Engine | — | Yudong 6105 Turbocharged |
| Engine Power | kW | 92 |
| Transmission | — | 315 Split Transmission |
| Drive Axle | — | Front Axle: 305 Split Axle / Rear Axle: 30 Series |
| Tire Size | — | 16/70 R22.5 Dual Tires |
| Bucket Capacity | m³ | 0.7 |
| Mixing Capacity | m³ | 5 |
| Reduction Ratio | — | 0.113194444 |
| Drum Rotation Speed | rpm | ≥15 |
| Reducer | — | HL6F-B2700 |
| Travel Speed | km/h | 35 |
| Drive Type | — | 4×4 Four-Wheel Drive |
| Water Tank Capacity | L | 1070 |
| Fuel Tank Capacity | L | 180 |
| Hydraulic Oil Tank Capacity | L | 180 + 35 |
