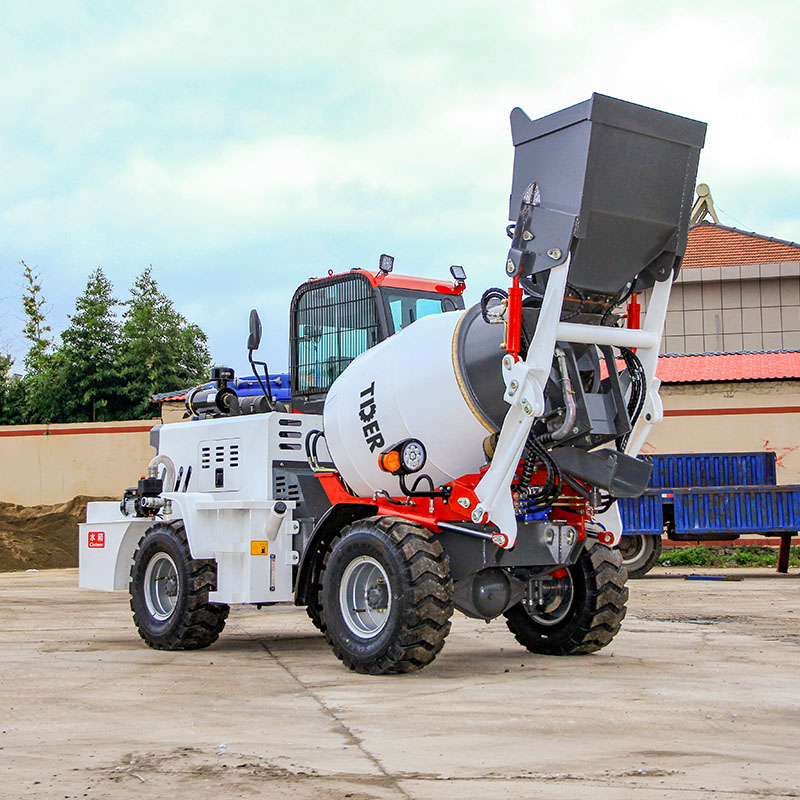

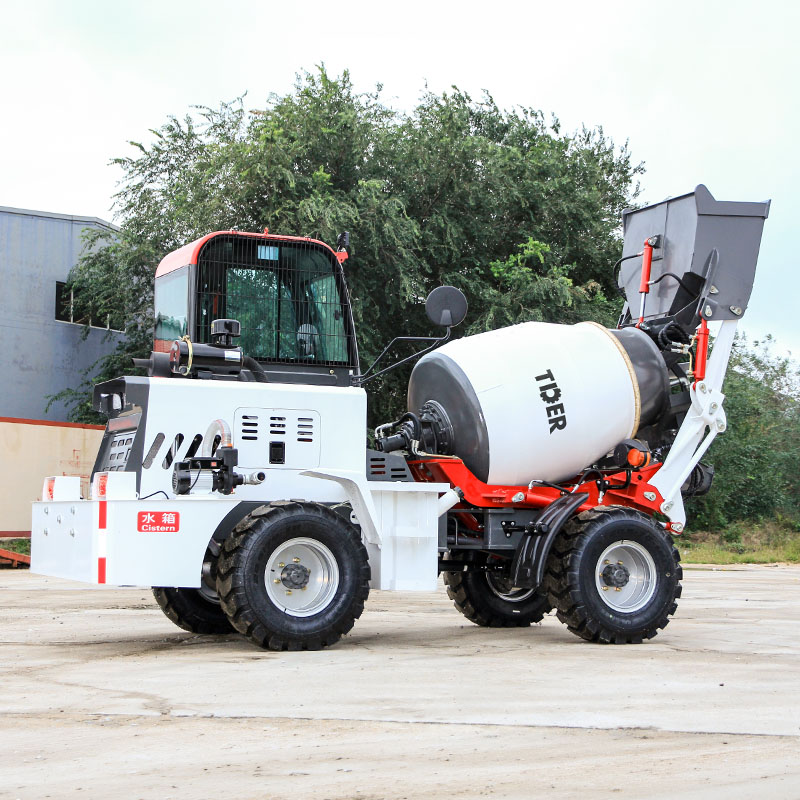

0.7m³ Concrete Mixer Truck
TCM07
Features

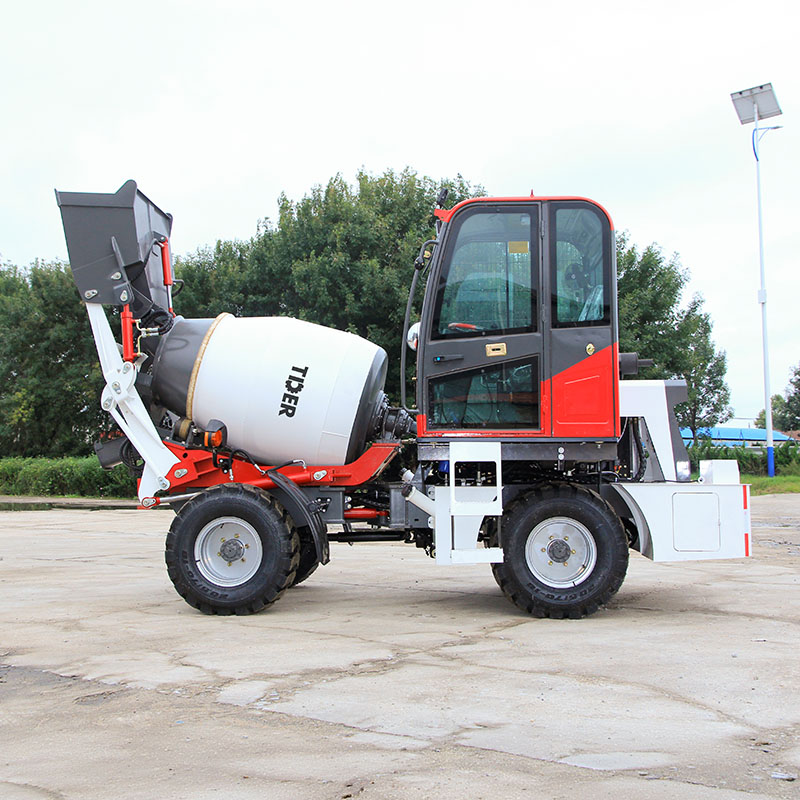

Rear-Mounted Cab Design for Better Visibility and Control
TCM07 features a rear-mounted operator cab layout, providing operators with a clearer working view during loading, driving, and concrete discharge operations. This design improves machine awareness in confined construction areas while making daily operation safer and more efficient.
Articulated Chassis with Isuzu-Type Drive Axle for Tough Terrain
The front and rear articulated frame improves maneuverability on narrow roads and uneven ground, while the Isuzu-type drive axle provides reliable load support and traction. This structure allows stable operation in construction sites where space and terrain conditions are challenging.
Operator Comfort and Safety Package for Long Working Hours
The cab integrates a suspension seat, digital dashboard, LED lighting, front and rear cameras, display monitor, and pilot joystick control. These features improve visibility, simplify operation, and reduce operator fatigue during extended construction shifts.
Integrated Water and Discharge System for Faster Concrete Handling
Equipped with automatic water supply, diesel self-priming pump, hydraulic external suction, and discharge vibrator, TCM07 simplifies the concrete preparation process and improves efficiency from mixing to final discharge.
Reliable Diesel Power with Easy Maintenance
Powered by a 37kW Yunnei or Xichai diesel engine, TCM07 delivers stable power output for daily mixing and transportation tasks. The proven engine platform offers simple maintenance, economical fuel consumption, and reliable operation for long-term construction use.
Hydraulic System Optimized for Smooth Mixing Operation
The matched hydraulic system provides stable power transmission for mixing, loading, and discharge functions. The optimized hydraulic layout ensures smooth operation and reduces unnecessary maintenance during continuous working cycles.
Specifications
| Overall Dimensions | mm | 4800 × 2220 × 3080 |
| Wheelbase | mm | 2100 |
| Operating Weight | kg | 3500 |
| Engine | — | Yunnei 490 / Xichai 490 |
| Engine Power | kW | 37 |
| Transmission | — | 240 Integrated Transmission |
| Drive Axle | — | Isuzu |
| Tire Size | — | 20.5-16 |
| Bucket Capacity | m³ | 0.3 |
| Mixing Capacity | m³ | ≥0.6 |
| Reduction Ratio | — | 0.058333333 |
| Rotation Speed | rpm | ≥15 |
| Travel Speed | km/h | 35 |
| Drive Type | — | 4×4 Four-Wheel Drive |
| Water Tank Capacity | L | 230 |
| Diesel Tank Capacity | L | 70 |
| Hydraulic Oil Tank Capacity | L | 60 + 18 |
