TCP50-13-72R
Features
S-Valve Technology for Consistent Concrete Flow
The TCP50-13-72R uses an advanced S-valve system with floating seal compensation, which automatically compensates for wear at the sealing interface. This helps maintain effective sealing as operating hours accumulate, supporting consistent concrete flow and reducing leakage-related interruptions during continuous pumping.
Wear-Resistant Pumping Components for Longer Service Life
The wear plate and cutting ring use high-hardness wear-resistant alloy materials to withstand the abrasive nature of concrete. This helps slow component wear and maintain pumping performance over extended operating cycles, reducing the frequency of wear-part replacement.
Air-Cooled Hydraulic System for Independent Site Operation
The hydraulic oil cooling system uses an air-cooled heat dissipation design, eliminating the need for an external water source for hydraulic cooling. This makes the pumping system easier to deploy and particularly practical for remote sites where access to water is limited.
Reverse Pumping Function to Help Clear Blockages
The integrated reverse pumping function allows the concrete flow to be reversed when necessary. This provides operators with a practical way to relieve pressure and help clear potential pipeline blockages, reducing unnecessary downtime during pumping operations.
Remote Control for Easier Pumping Management
A remote-control handle is provided with the electrical control box, allowing operators to control the pumping equipment from a more convenient position around the work area. This improves operational flexibility when monitoring concrete placement and managing the pumping process.
Diesel-Powered Cement Pump for Off-Grid Construction
Powered by a 72 kW Weichai WP4.1D80E201 diesel engine, the TCP50-13-72R operates independently in outdoor and off-grid environments where external electrical power may not be readily available. As a cement pump, it is well suited to infrastructure projects such as roads, railways, bridges, tunnels, hydropower and mining.
Specifications
| Whole Machine Performance | Maximum Theoretical Concrete Output (Low / High Pressure) | m³/h | 48 / 29 |
| Maximum Concrete Pumping Pressure (High / Low Pressure) | MPa | 13 / 7 | |
| Maximum Delivery Distance (Vertical / Horizontal) | m | 180 / 550 | |
| Concrete Valve Type | — | S Valve | |
| Concrete Cylinder Diameter × Stroke Length | mm | Φ180 × 1000 | |
| Outlet Inner Diameter | mm | Φ125 | |
| Delivery Pipe Inner Diameter | mm | Φ125 | |
| Maximum Aggregate Diameter | mm | Pebble: 50 / Gravel: 40 | |
| Hopper Capacity × Loading Height | L × mm | 500 × 1100 | |
| Lubrication System | — | Automatic Greaser | |
| High / Low Pressure Conversion | — | Yes | |
| Remote Control | — | Wireless Remote Control | |
| Power System | Diesel Engine Model | — | Weichai WP4. 1D80E201 |
| Rated Power | kW | 72 | |
| Rated Speed | r/min | 1800 | |
| Rated Fuel Consumption | L/h | 12.5 | |
| Hydraulic System | Hydraulic Circuit Type | — | Open Circuit |
| Main Hydraulic Pump Displacement | mL/r | 112 | |
| Pumping System Pressure | MPa | 32 | |
| Mixing System Pressure | MPa | 12 | |
| Hydraulic Tank Capacity | L | 320 | |
| Dimensions & Weight | Overall Dimensions (L × W × H) | mm | 4850 × 1670 × 1700 |
| Main Machine Weight | kg | 3360 | |
| Total Weight | kg | 4500 |
*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

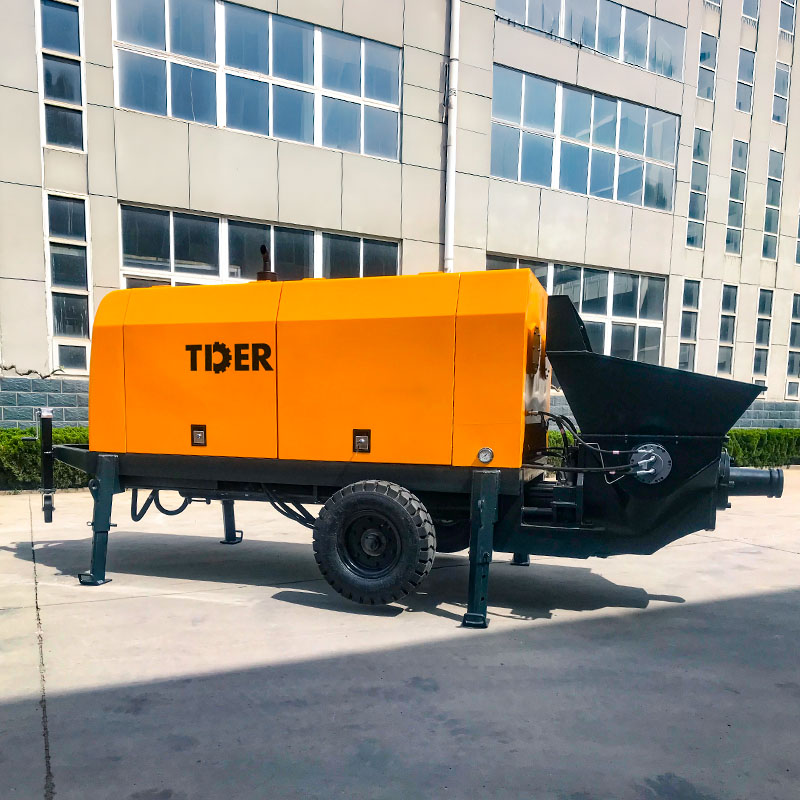

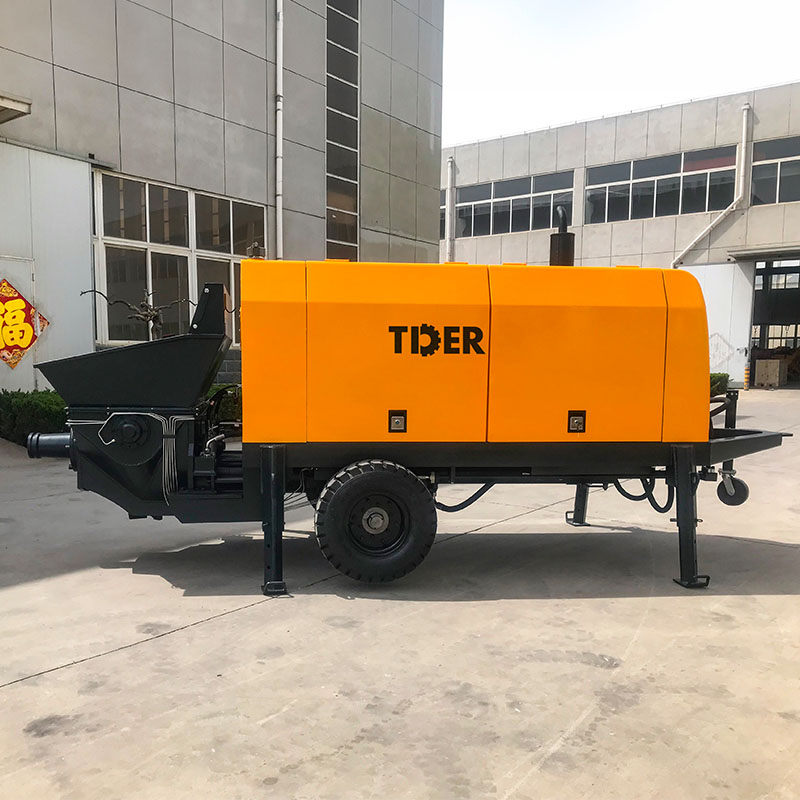

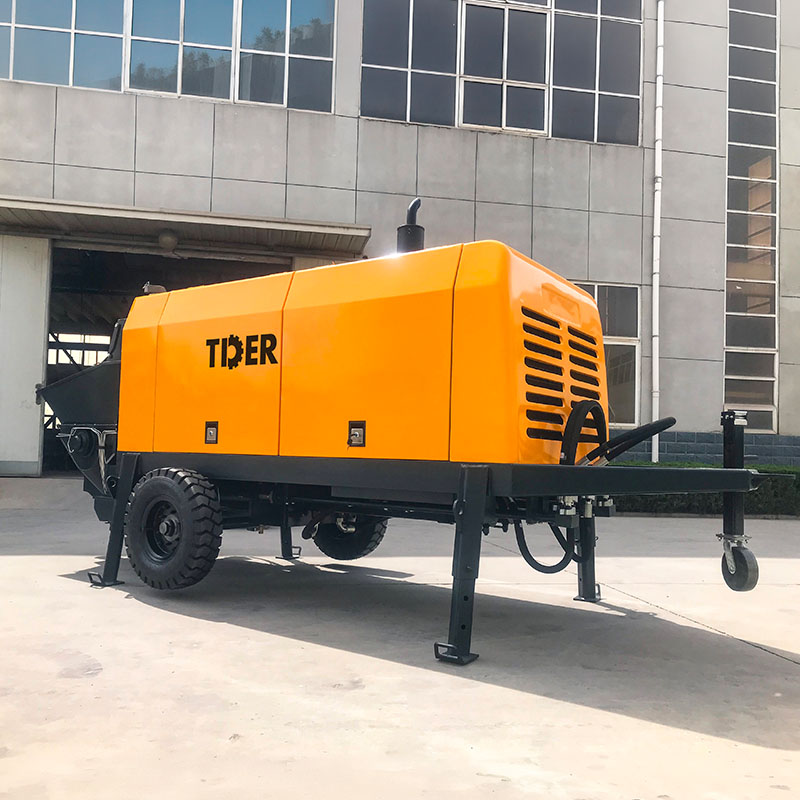

Product Showcase
