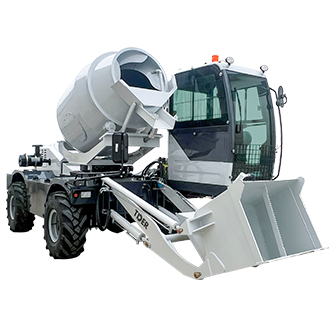

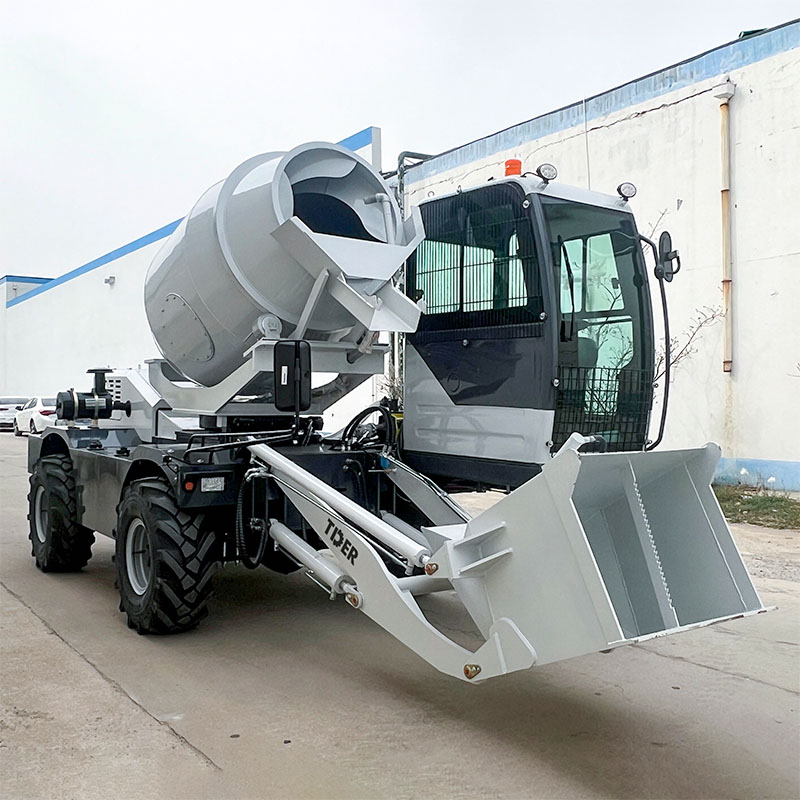

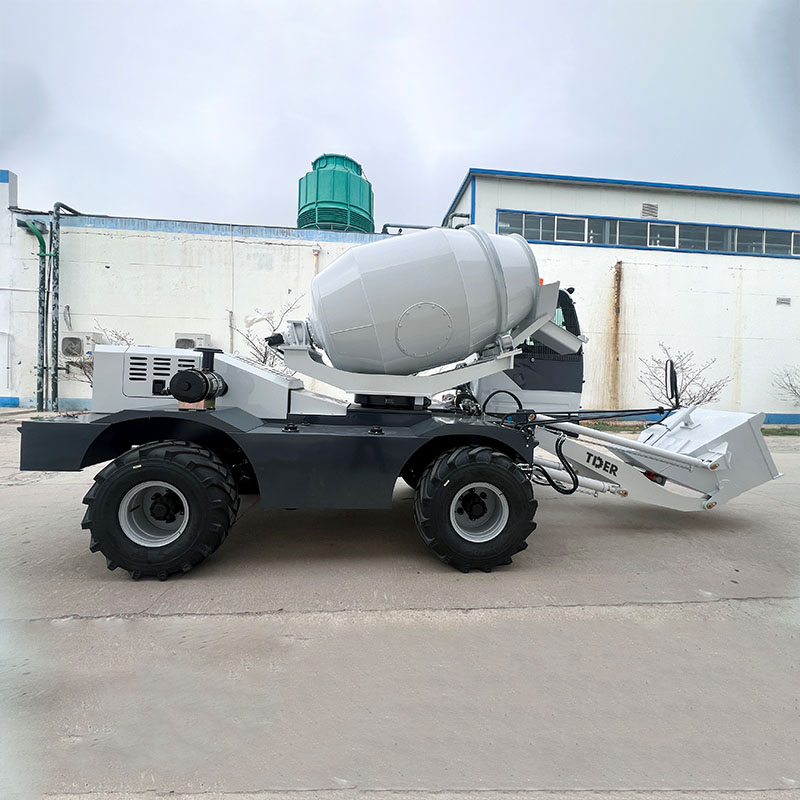

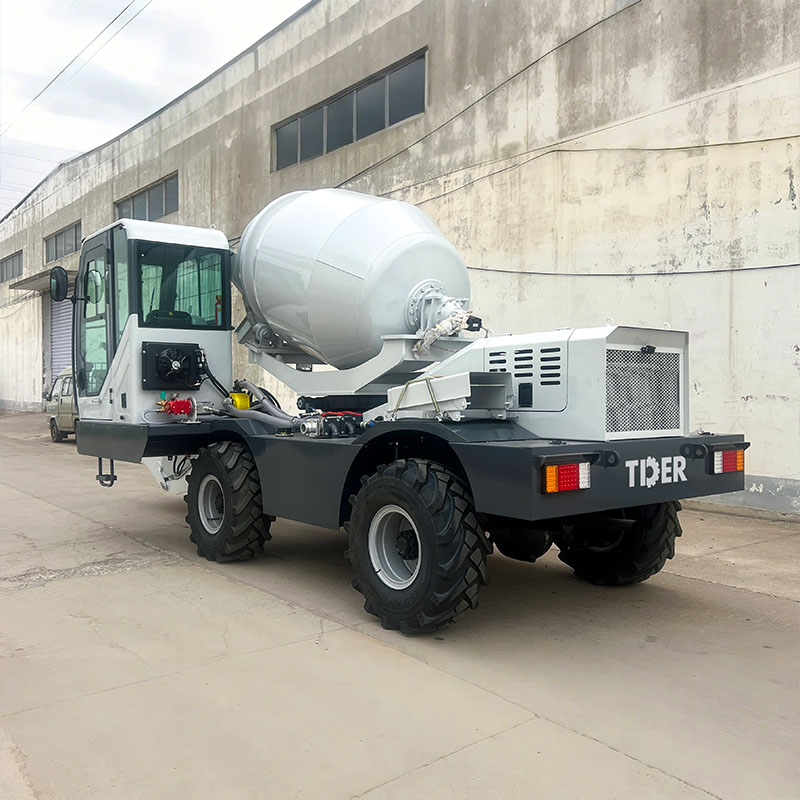

1.5m³ Concrete Mixer Truck
TCM15
Features
2.2m³ High-Capacity Mixing System for Higher Productivity
TCM15 features a 2.2m³ mixing capacity with 1.5m³ maximum discharge volume and up to 6m³ concrete output per hour. The larger mixing capacity reduces loading cycles and improves concrete supply efficiency, helping contractors complete more construction tasks with fewer interruptions.
Flexible Discharge System for Wider Construction Coverage
The 270° rotating drum combined with front and rear hydraulic discharge hopper provides flexible concrete delivery positions without frequent machine repositioning. This design improves efficiency when working around buildings, foundations, and restricted construction areas.
4WD System with Hydraulic Steering for Challenging Terrain
Equipped with four-wheel drive, rear-wheel steering, and a 10-ton hydraulic steering drive axle, TCM15 delivers strong traction and precise maneuverability on muddy, uneven, and complex job sites. The reinforced drive system ensures stable transportation even under demanding working conditions.
Smart Concrete Control System for Consistent Quality
The integrated electronic weighing system and resettable digital water meter help operators accurately control concrete materials and water ratio. Combined with the hydraulic mixing and cleaning system, TCM15 improves concrete consistency while reducing material waste and daily maintenance effort.
Heavy-Duty Structure & Comfortable Cab for Long-Term Operation
TCM15 adopts an integrated seamless steel tube frame and a stable hydraulic system to withstand continuous construction workloads. The protective cab features air conditioning, adjustable seat, reversing camera, LED lighting, safety belt, and waterproof wiring harness, improving durability, safety, and operator comfort.
Specifications
| Operating Weight | kg | 5600 |
| Engine | — | YUNNEI Engine, Four-Cylinder |
| Engine Power | kW | 58 |
| Transmission | — | TDER Torque Converter |
| Drive Axle | — | LIUFENG |
| Tire Size | — | 23.5-16 (Steel Wire Tyre) |
| Bucket Capacity | m³ | 0.35 |
| Mixing Capacity | m³ | 1.2–1.5 |
| Reduction Ratio | — | TDER Speed Reducer |
| Reducer | — | TDER |
| Travel Speed | km/h | High: 30; Low: 4 |
| Drive Type | — | 4×4 Four-Wheel Drive, Rear Steering |
| Water Tank Capacity | L | 240 |
| Fuel Tank Capacity | L | 110 |
