1m³ Concrete Mixer Truck
TCM10
Features
Turbocharged Diesel Power for Continuous Mixing Operations
Equipped with a 55kW turbocharged diesel engine, TCM10 delivers stronger torque output for mixing, loading, and transportation tasks. The optimized power system provides reliable performance during long working cycles while maintaining economical fuel consumption.
Articulated Chassis with Heavy-Duty Reduction Axle for Tough Terrain
The articulated frame design improves maneuverability on uneven construction sites, while the small wheel-side dual-caliper reduction axle provides stronger traction and load support. This combination enables stable operation in narrow spaces, muddy areas, and challenging ground conditions.
Fixed Cab and Drum Structure for Higher Stability and Easy Maintenance
The integrated fixed cab and mixing drum design eliminates unnecessary rotation mechanisms, improving structural stability and reducing maintenance complexity. This layout provides reliable operation for daily concrete production and transportation tasks.
Pilot Control System for Precise Multi-Function Operation
The pilot control system allows smoother operation of loading, mixing, and discharge functions with reduced operator effort. Combined with the integrated hydraulic system, it improves control accuracy and working efficiency during repetitive construction tasks.
Integrated Water and Discharge System for Efficient Concrete Handling
The machine is equipped with automatic water supply, diesel self-priming pump, hydraulic external suction, cement chute, and discharge vibrator. This integrated system simplifies concrete preparation and improves efficiency from mixing to final discharge.
Specifications
| Overall Dimensions | mm | 5050 × 2350 × 3500 |
| Wheelbase | mm | 2180 |
| Operating Weight | kg | 4500 |
| Engine | — | Yunnei 490 Turbocharged |
| Engine Power | kW | 55 |
| Transmission | — | 265 Integrated Transmission |
| Drive Axle | — | 1.8T Wheel Side Reduction Axle |
| Tire Size | — | 20.5-16 |
| Bucket Capacity | m³ | 0.35 |
| Mixing Capacity | m³ | ≥0.9 |
| Reduction Ratio | — | 0.058333333 |
| Drum Rotation Speed | rpm | ≥15 |
| Reducer | — | Domestic Brand |
| Travel Speed | km/h | 35 |
| Drive Type | — | 4×4 Four-Wheel Drive |
| Water Tank Capacity | L | 300 |
| Fuel Tank Capacity | L | 90 |
| Hydraulic Oil Tank Capacity | L | 120 + 18 |

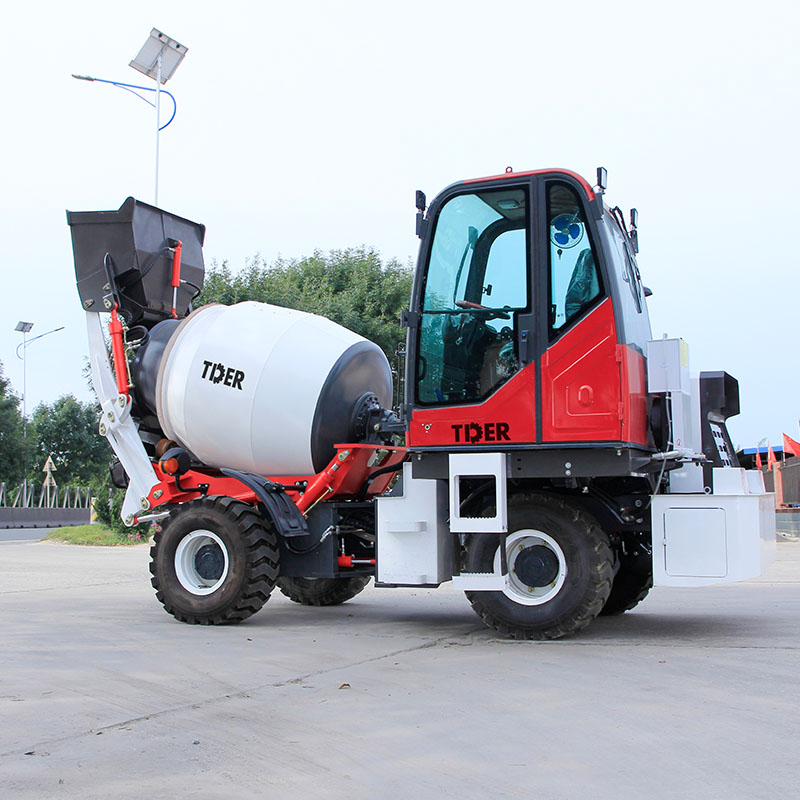

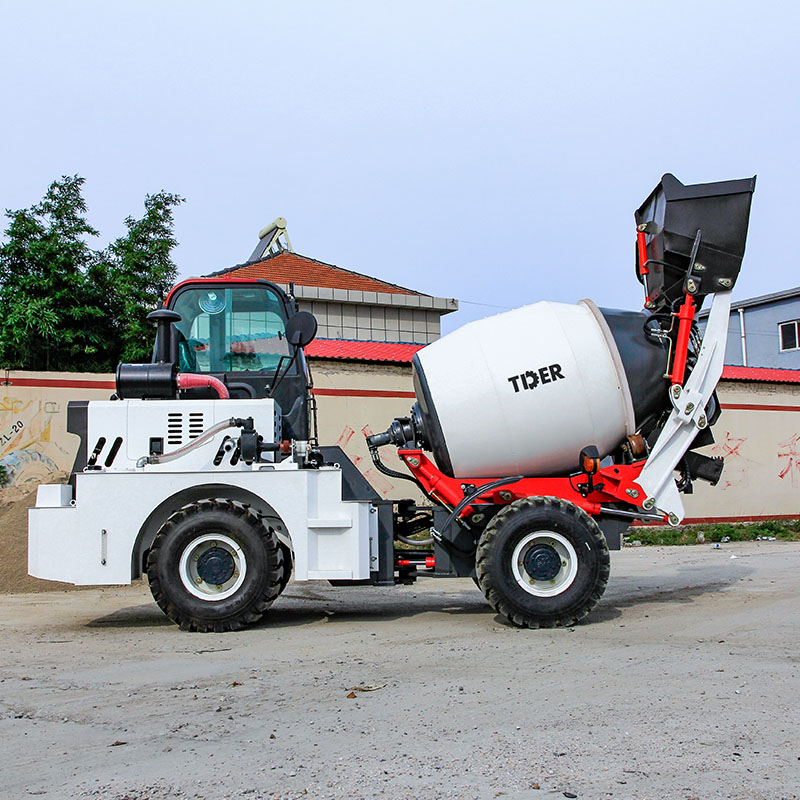

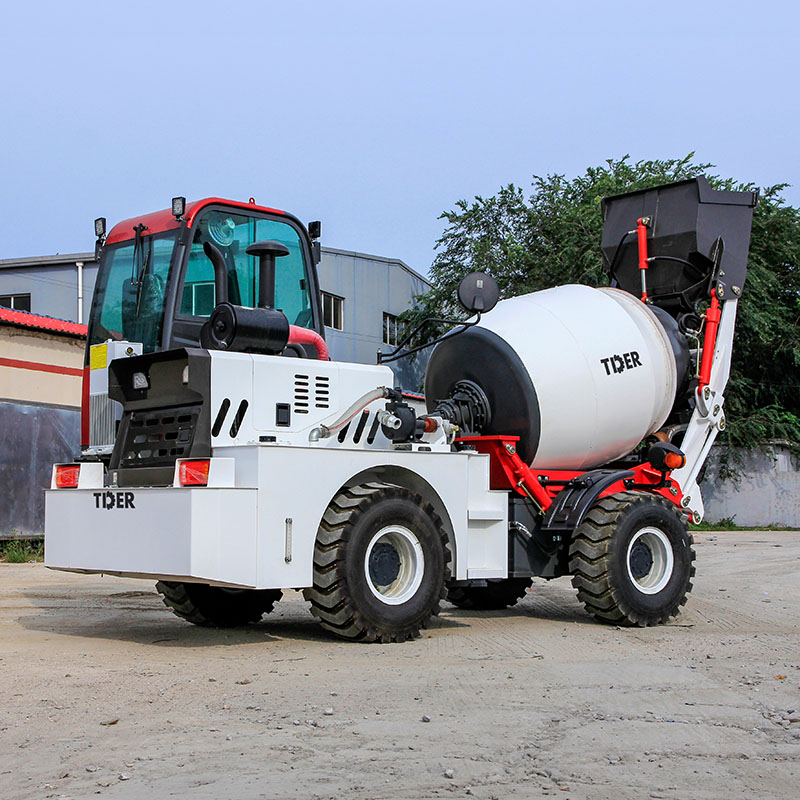

Product Showcase
