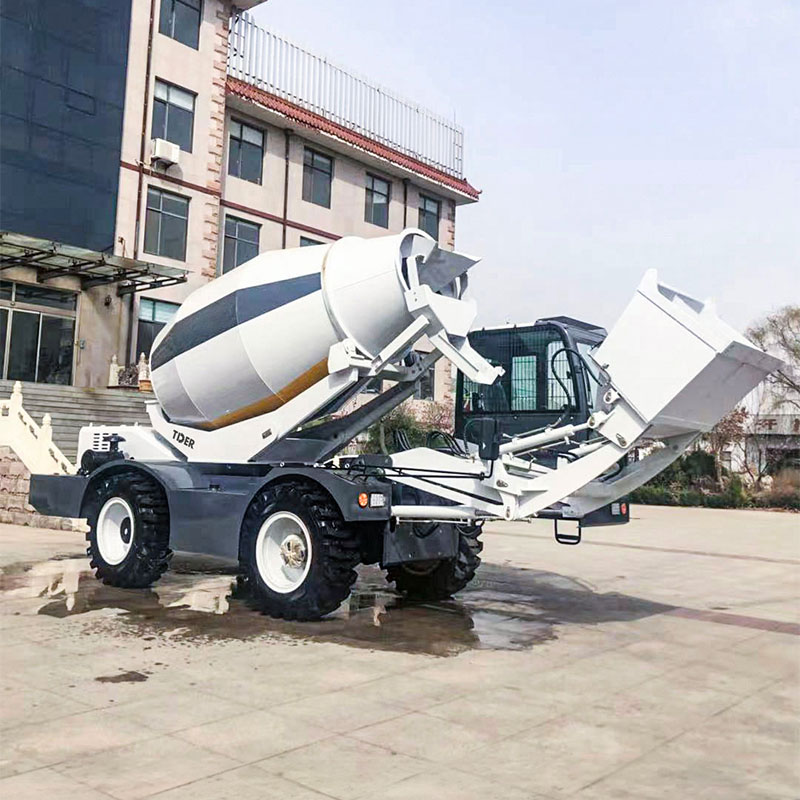

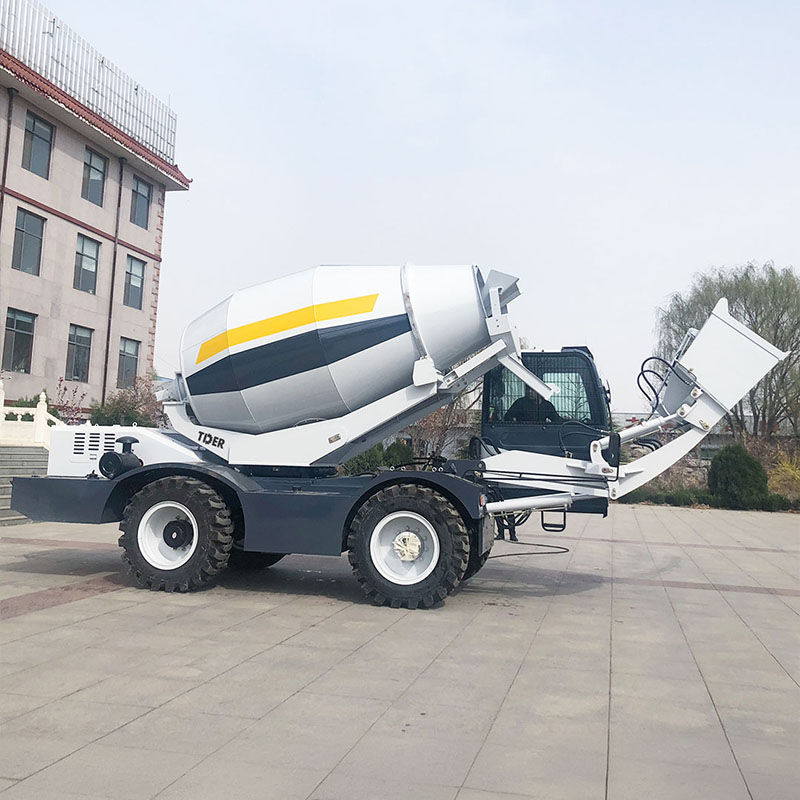

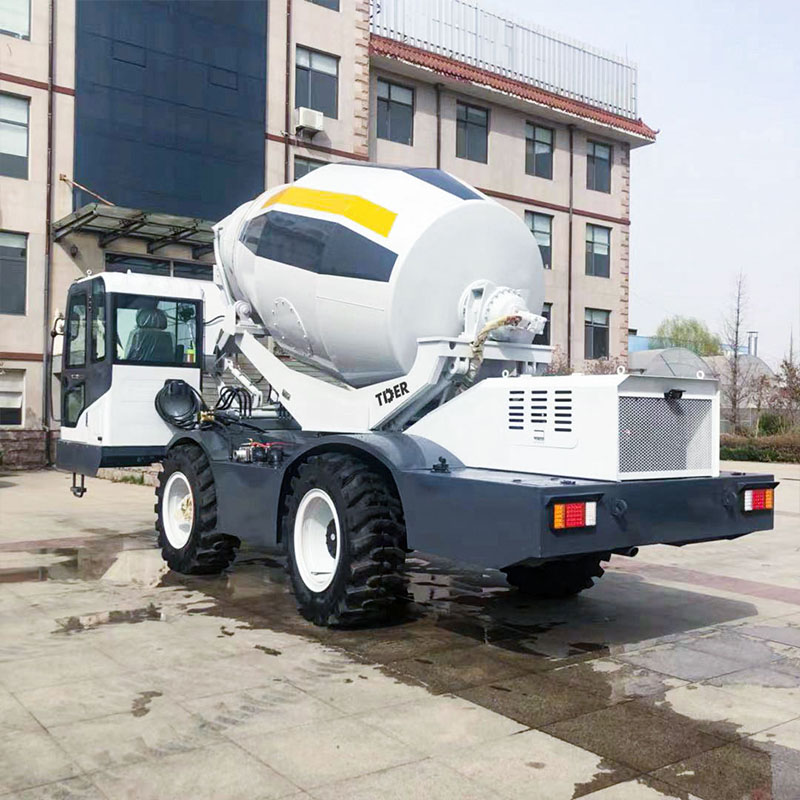

5.5m³ Concrete Mixer Truck
TCM55
Features
High-Output Engine with Flexible Global Options
The TCM55 is equipped with a 115kW Yuchai turbocharged engine as standard, providing strong power reserves for frequent loading, mixing and transportation cycles. With Cummins and Yuchai Euro V engine options, it allows customers to select power solutions according to local emission regulations and operating requirements. The internationally recognized engine options improve service accessibility, spare parts availability and long-term machine value in global markets.
Integrated Steel Tube Frame for Long-Term Structural Integrity
The one-piece seamless steel tube frame provides a rigid structural platform that helps maintain alignment and durability during repeated construction cycles.
Electric Travel Control for Smoother Machine Handling
The electric travel control system improves operating response and simplifies machine movement management, helping operators position the mixer more efficiently on different job sites.
Intelligent Mixing Control for Consistent Concrete Quality
The electronic weighing system, digital water measurement and two-speed mixing function allow operators to better control material proportions and mixing processes, improving concrete consistency on site.
Specifications
| Operating Weight | kg | 9200 |
| Engine | — | Yuchai, 4 Cylinders, Intercooler Turbocharged |
| Engine Power | kW | 115 |
| Transmission | — | Torque Converter |
| Tire Size | — | 16/70-24 (Steel Wire Tyre) |
| Bucket Capacity | m³ | 0.72 |
| Mixing Capacity | m³ | 5.5 |
| Reduction Ratio | — | Speed Reducer |
| Reducer | — | Speed Reducer |
| Travel Speed | km/h | High: 38.5; Low: 7.5 |
| Drive Type | — | 4×4 Four-Wheel Drive, Rear-Wheel Steering |
| Water Tank Capacity | L | 620 |
| Fuel Tank Capacity | L | 190 |
Product Showcase
Why Choose TDER?
20+ Years of Expertise
158 Countries Served
42,000㎡ of Advanced Production
Over $91M+ Annual Sales
