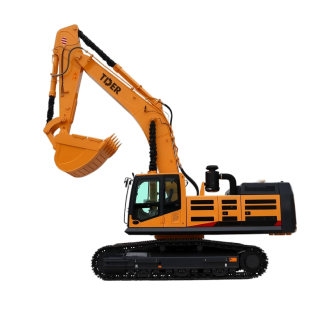

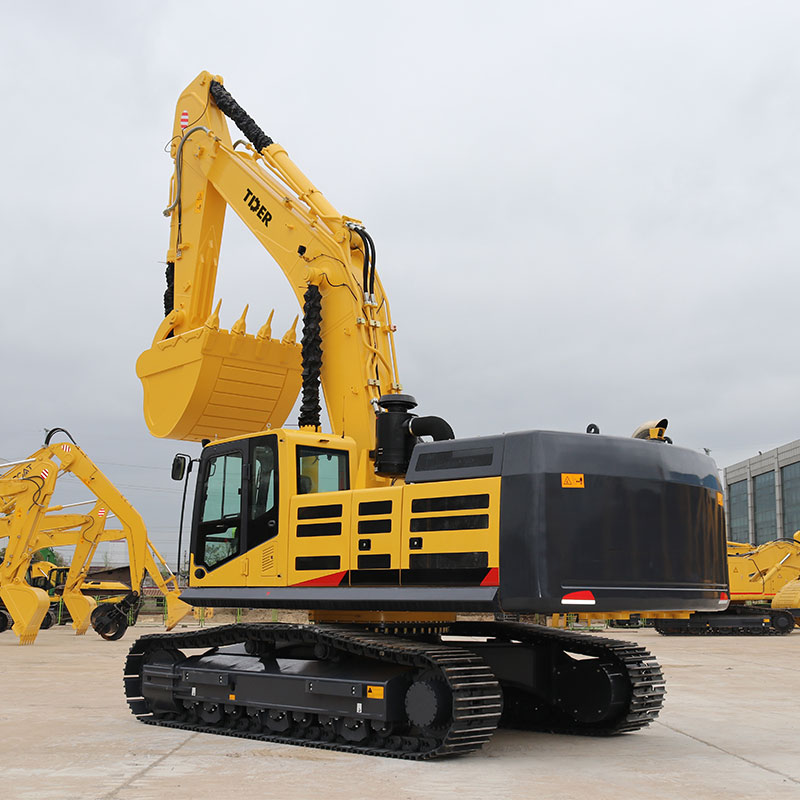

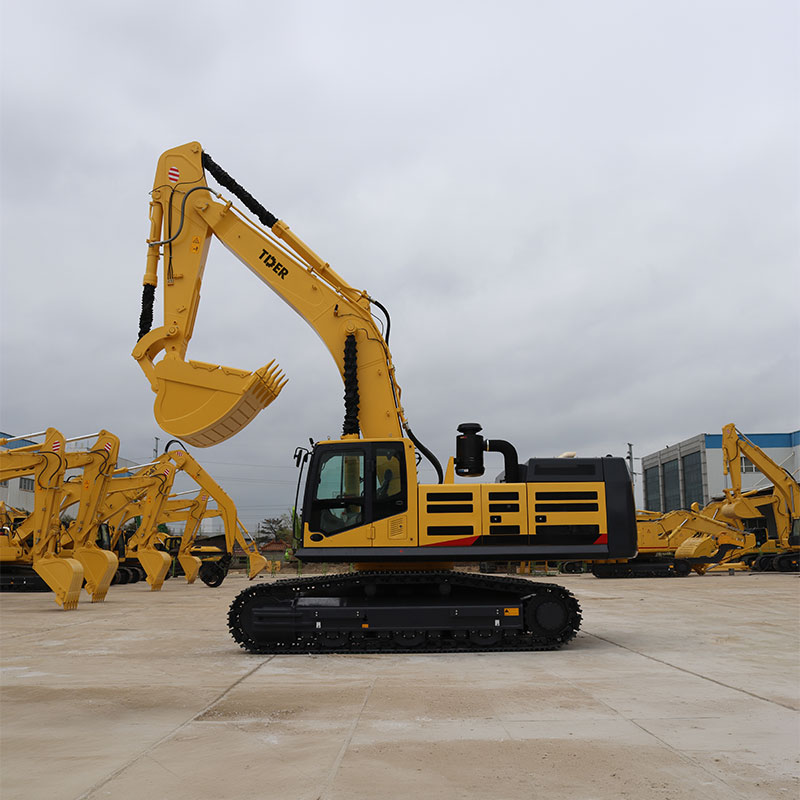

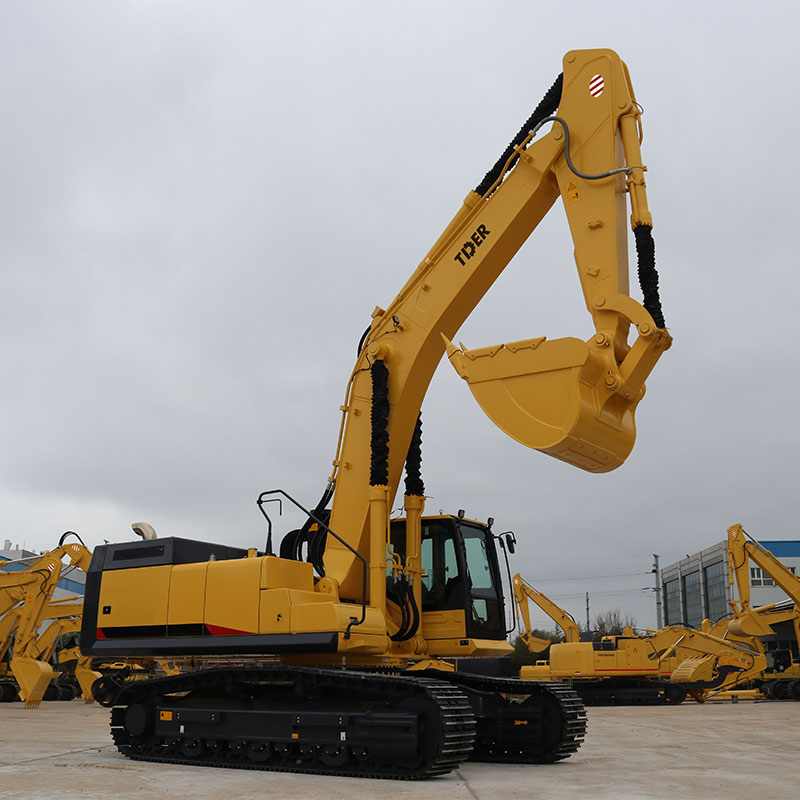

Name: 52 Ton Crawler Excavator with Isuzu Engine
Availability: InStock

Features
Specifications
Product Showcase
Gallery
FAQs
Related Products

Features

High-Capacity Earthmoving Production System

The TCE520 is engineered as a large-scale production machine combining a 52-ton class Isuzu GH-6WG1 power platform with a 3m³ bucket system, delivering strong material handling capacity for continuous earthmoving operations. The integrated machine layout is optimized for high-volume loading efficiency, reducing cycle counts and improving overall site productivity in quarry and infrastructure projects.

Multi-Brand Integrated Drive and Hydraulic Coordination System

A combined architecture of Kawasaki hydraulic core components with Doosan travel system integration ensures balanced power distribution between digging, swinging, and traveling operations. This coordinated system enhances load response stability, improves multi-action efficiency, and maintains consistent performance under full-load working conditions.

Heavy-Duty Structural Stability System for Extreme Working Conditions

Built on a reinforced 52-ton class frame with wide-track 600mm crawler system and multi-roller ground support layout, the machine delivers strong load distribution and structural rigidity. This design improves machine stability on uneven terrain and ensures durability under long-term high-impact excavation cycles.

Hydraulic Cooling System for Continuous Heavy-Duty Operation

The integrated hydraulic oil cooling system is designed to maintain stable thermal balance during long-hour excavation work. By improving heat dissipation efficiency under high-load conditions, it helps prevent performance degradation caused by temperature rise, ensuring consistent hydraulic response and reliable operation in high-intensity environments such as mining and quarry applications.

Auxiliary Hydraulic Line System for Attachments

The machine is equipped with a factory-installed auxiliary hydraulic pipeline system, enabling direct compatibility with breakers and other hydraulic attachments. This configuration allows faster tool switching, reduces installation requirements, and expands machine versatility for demolition, rock breaking, and multi-application construction tasks.

Specifications

Operating Weight	Kg	52000
Engine Model		Isuzu 6WG1X
Rated Power	Kw/rpm	300/1800
Bucket Capacity	m³	3
Swing Speed	(r/min)	8.10
Traveling Speed	km/h	5.1/2.9
Gradeability	°	35
Hydraulic System
Hydraulic system working pressure	Mpa	34.3
Hydraulic Pump		Kawasaki
Hydraulic tank volume	L	450
Swing Motor		Kawasaki
Traveling Motor		Doosan
Operating Range
Max. Digging Radius	mm	10517
Max. Digging Depth	mm	6435
Max. Digging Height	mm	9637
Max. Dumping Height	mm	6634
Min. Swing Radius	mm	4580
Overall Dimensions
Overall Length	mm	11865
Overall Width	mm	3490
Overall Height	mm	3280
Track Width	mm	3349
Track length	mm	5388

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

Gallery

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
