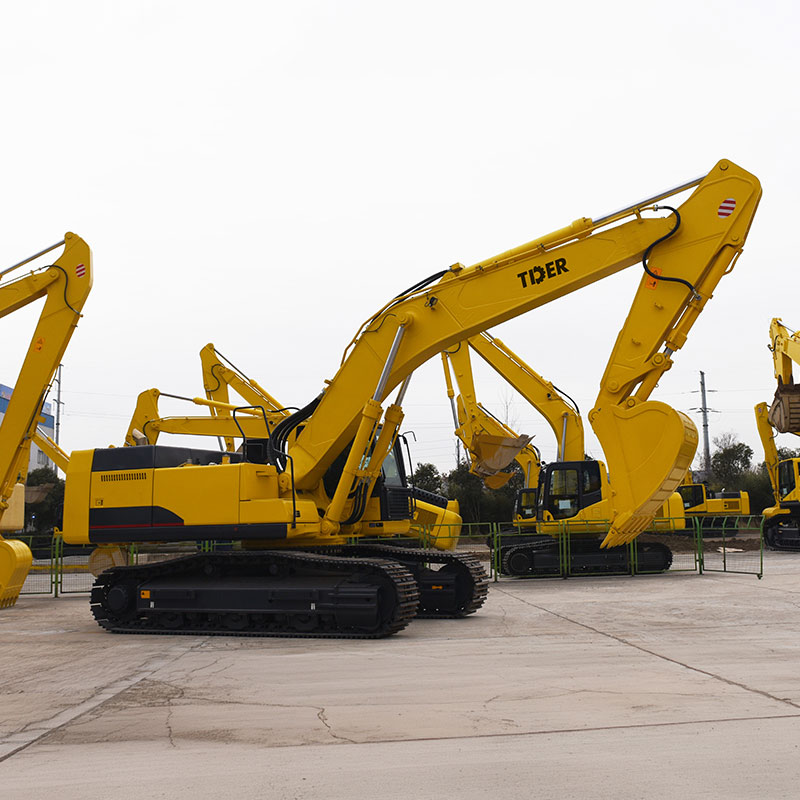

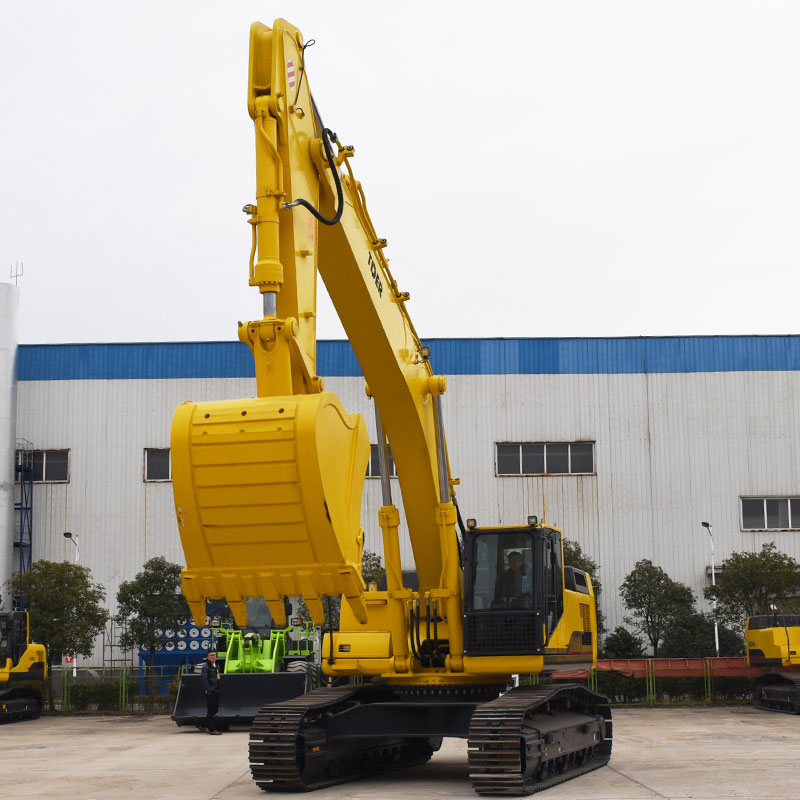

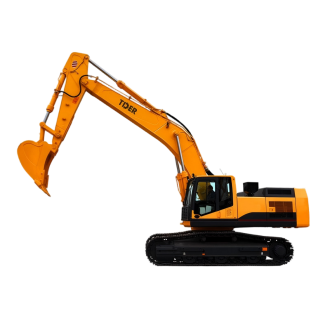

48.5 Ton Crawler Excavator
TCE485
Features

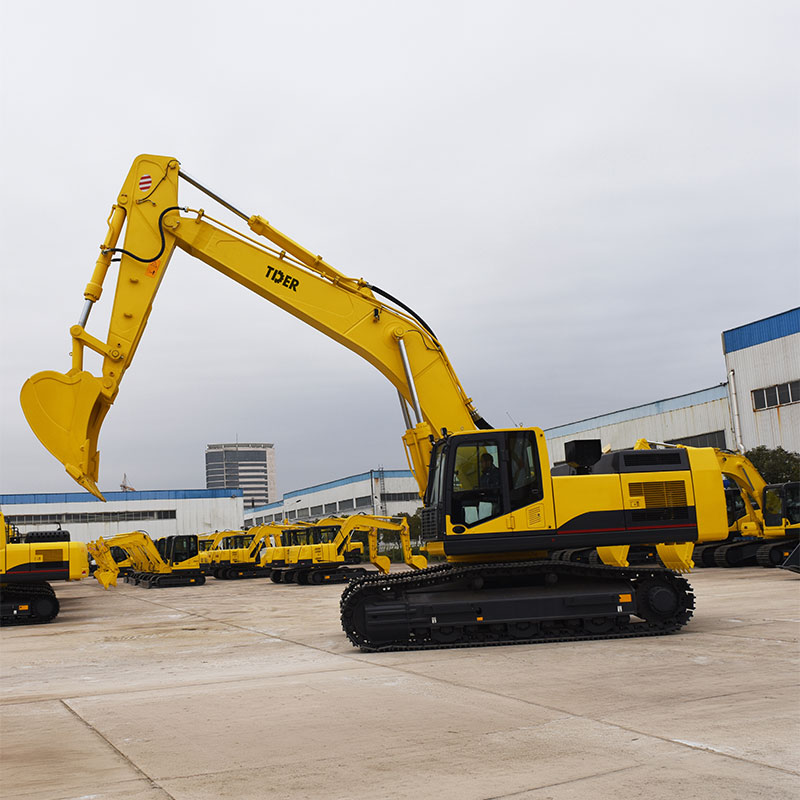

International-Grade Powertrain & Core Components Integration
The TCE485 adopts a combination of internationally recognized components, including a Cummins engine, Doosan travel system, and Kawasaki hydraulic swing and control elements, ensuring strong coordination across power, travel, and hydraulic functions. This integrated configuration enhances overall machine reliability and supports stable operation in demanding heavy-duty environments.
Dual-Speed Travel System for Flexible Jobsite Efficiency
A high and low travel speed configuration allows the machine to adapt to different working conditions. Low speed provides strong traction for heavy load movement, while high speed improves relocation efficiency across large job sites, reducing non-productive time during operations.
Reinforced Operator Cabin with ROPS-Style Protection
The TCE485 is equipped with a reinforced protective cabin structure combined with air conditioning, providing improved operator comfort and environmental control. The structural design enhances safety awareness during operation, while the climate system supports reduced fatigue in long-hour working conditions.
Heavy-Duty Undercarriage with 9-Roller Stability Architecture
Featuring a 9-roller undercarriage layout, the TCE485 achieves improved ground contact distribution and structural balance. This design increases stability under heavy loads, reduces track wear, and improves adaptability in uneven or soft terrain commonly found in mining and large-scale earthmoving sites.
Specifications
| Operating Weight | Kg | 48500 |
| Engine Model | Cummins QSM11 | |
| Rated Power | Kw/rpm | 280/2100 |
| Bucket Capacity | m³ | 2.3 |
| Swing Speed | (r/min) | 8.90 |
| Traveling Speed | km/h | 4.8/2.7 |
| Gradeability | ° | 35 |
| Hydraulic System | Kawasaki | |
| Hydraulic system working pressure | Mpa | 34.3 |
| Hydraulic Pump | KSV200DT | |
| Hydraulic tank volume | L | 335 |
| Swing Motor | Kawasaki | |
| Traveling Motor | Doosan | |
| Operating Range | ||
| Max. Digging Radius | mm | 9850 |
| Max. Digging Depth | mm | 7300 |
| Max. Digging Height | mm | 10680 |
| Max. Dumping Height | mm | 7428 |
| Min. Swing Radius | mm | 5015 |
| Overall Dimensions | ||
| Overall Length | mm | 12260 |
| Overall Width | mm | 3490 |
| Overall Height | mm | 3755 |
| Track Width | mm | 3349 |
| Track Height | mm | 5388 |
