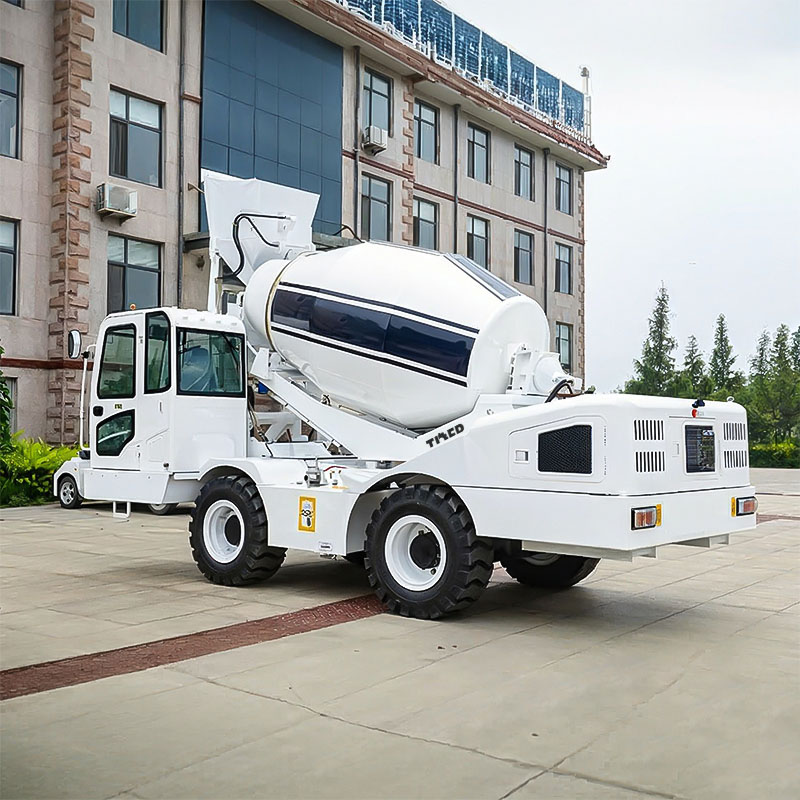

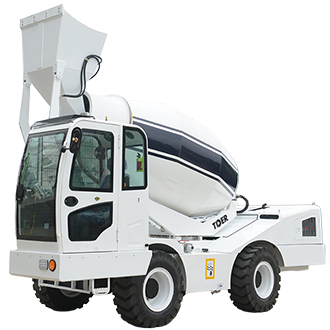

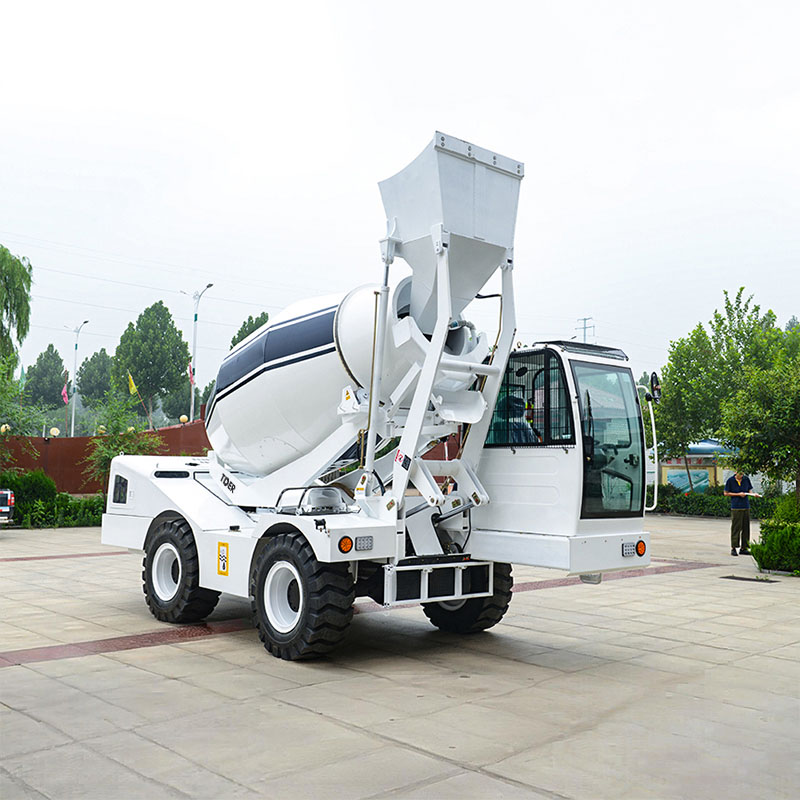

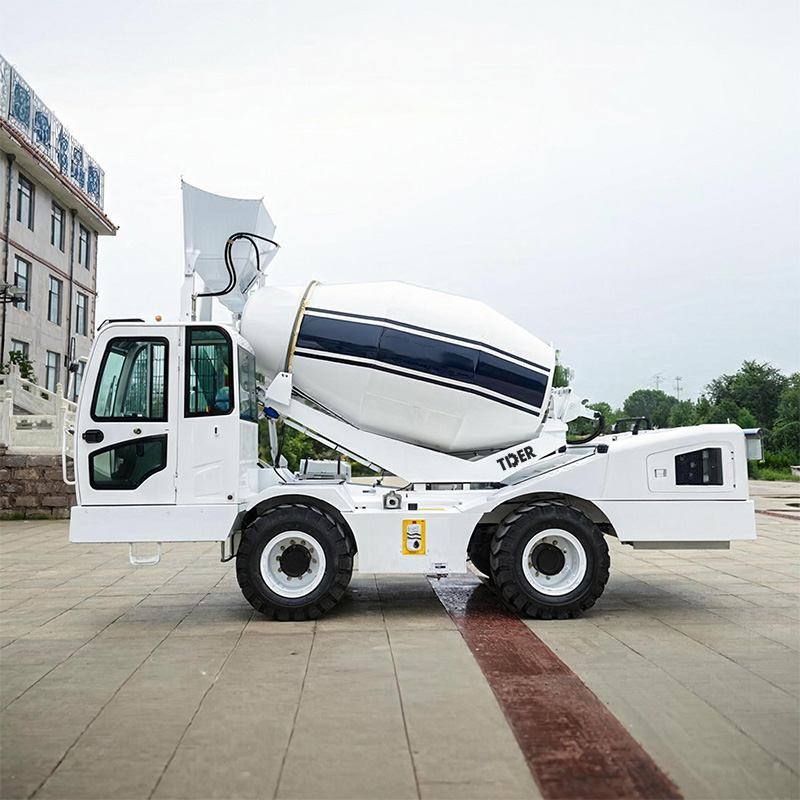

4m³ Concrete Mixer Truck
TCM40
Features
Integrated Machine Design for Long-Term Structural Reliability
The TCM40 adopts an integrated machine body design that improves overall structural integrity and maintains stable performance during continuous heavy-duty operation. Compared with separated frame structures, the integrated design reduces stress concentration and provides better durability under repeated loading conditions. Combined with a 270° independently rotating drum, the machine delivers both long-term reliability and flexible concrete placement for demanding construction projects.
4.0m³ Output Capacity, Higher Productivity Per Day
With a 5.0m³ mixing drum and 4.0m³ maximum discharge capacity, the TCM40 delivers up to 16m³ of concrete output per hour. It allows operators to complete more pouring work with fewer machine cycles, improving productivity and reducing project time.
20T Hydraulic Drive Axle for Powerful Traction
Equipped with a 20-ton hydraulic wheel-side drive axle, the TCM40 delivers powerful torque output and reliable traction for heavy-duty concrete transportation. Combined with four-wheel drive and rear steering, it ensures stable operation during continuous construction work.
Reliable Electrical Protection for Harsh Environments
The waterproof wiring harness design improves electrical system protection against dust and moisture, ensuring stable operation in demanding outdoor construction conditions.
Hydraulic Washing System for Faster Maintenance
The integrated hydraulic washing system allows convenient cleaning after operation, helping maintain equipment condition and reducing daily maintenance workload.
Specifications
| Operating Weight | kg | 7600 |
| Engine | — | YUNNEI Engine, Four-Cylinder |
| Engine Power | kW | 92 |
| Tire Size | — | 16/70-20 (Steel Wire Tyre) |
| Bucket Capacity | m³ | 0.55 |
| Mixing Capacity | m³ | 3.5–4 |
| Travel Speed | km/h | High: 36.5; Low: 6.5 |
| Drive Type | — | 4×4 Four-Wheel Drive, Front Steering |
| Water Tank Capacity | L | 520 |
| Fuel Tank Capacity | L | 180 |
Product Showcase
Why Choose TDER?
20+ Years of Expertise
158 Countries Served
42,000㎡ of Advanced Production
Over $91M+ Annual Sales
FAQs
Related Products
-

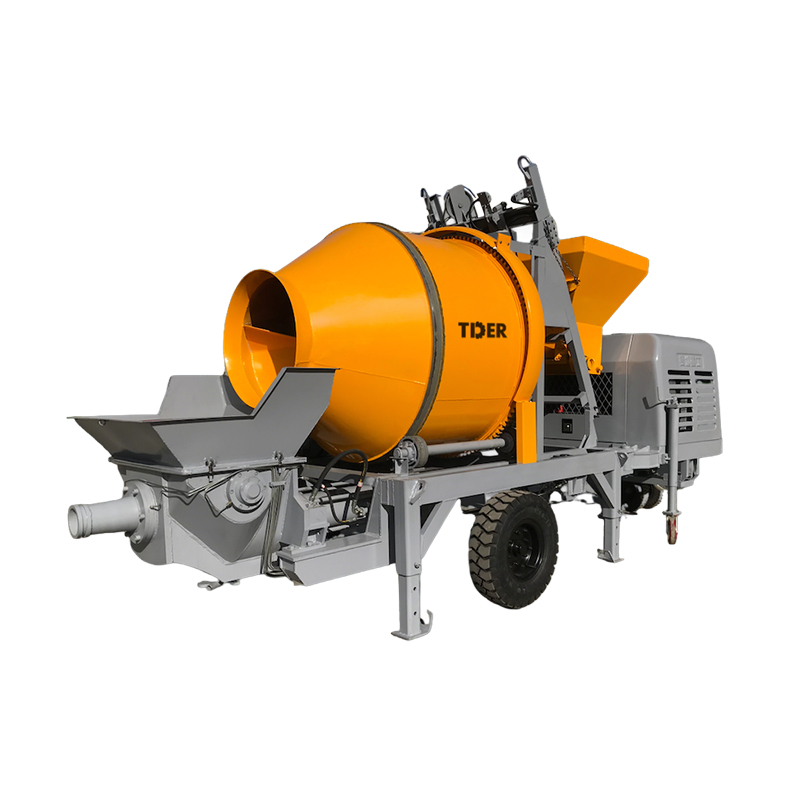

Concrete Mixer Pump for Construction- Output (High/Low):
11/20 m³/h
- Pressure (High/Low):
8/4 MPa
- Pumping Distance (H/V):
300/120 m
- Output (High/Low):
-

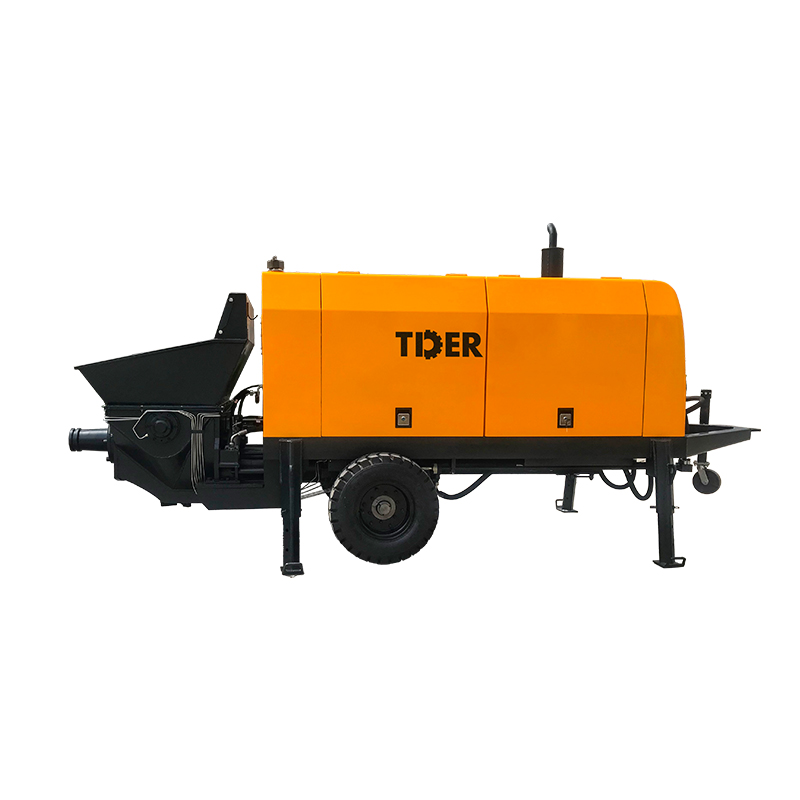

Concrete Pump with Diesel Engine- Output (High/Low):
