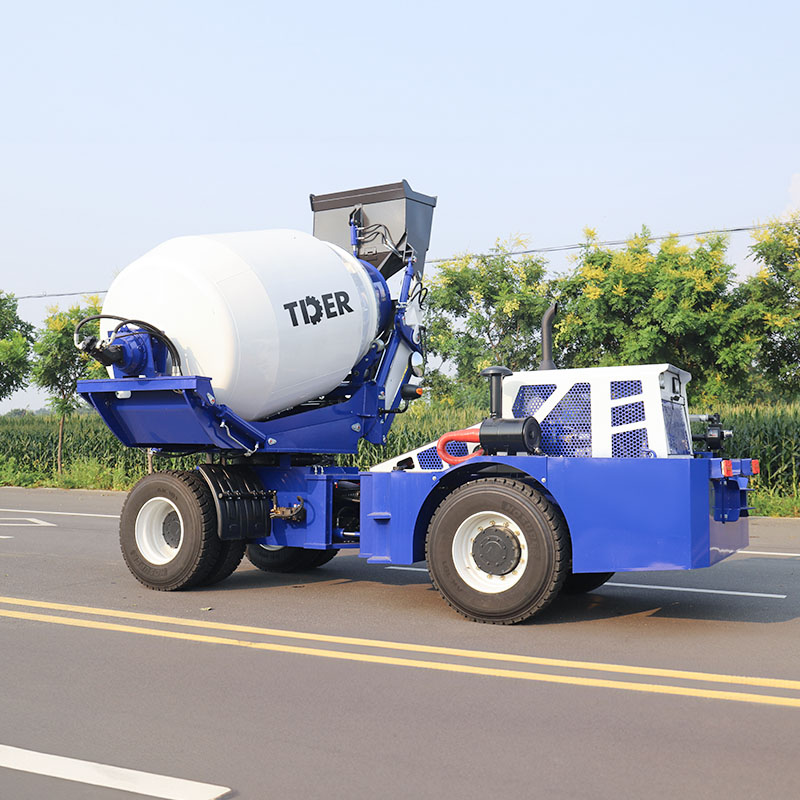

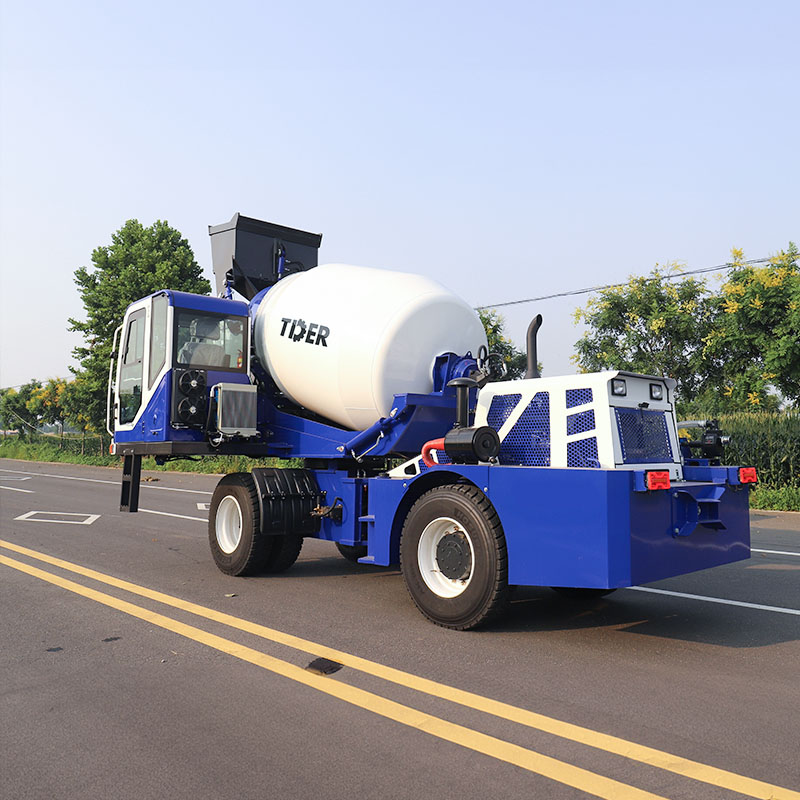

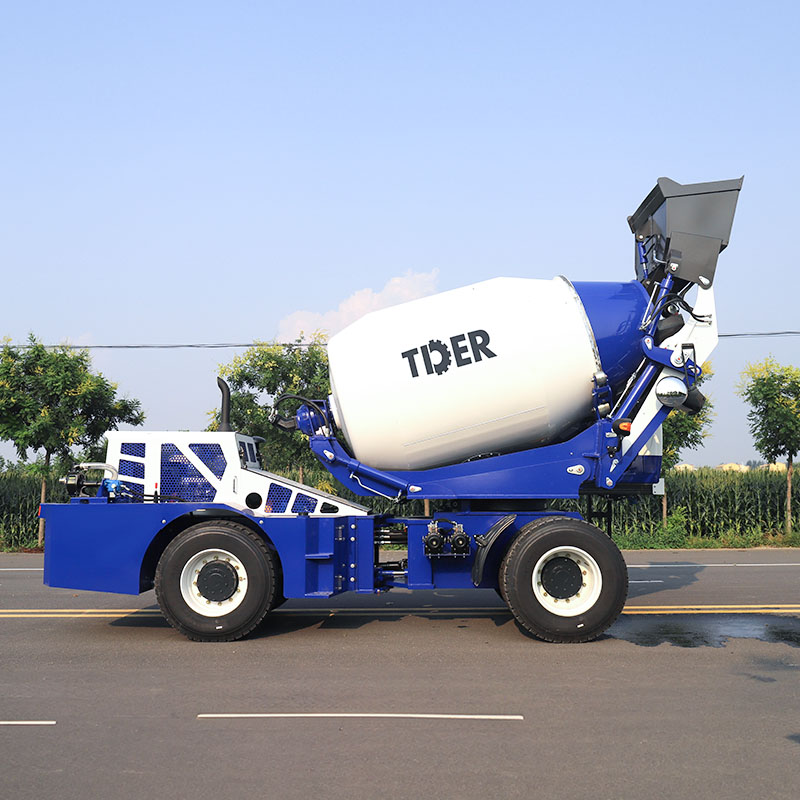

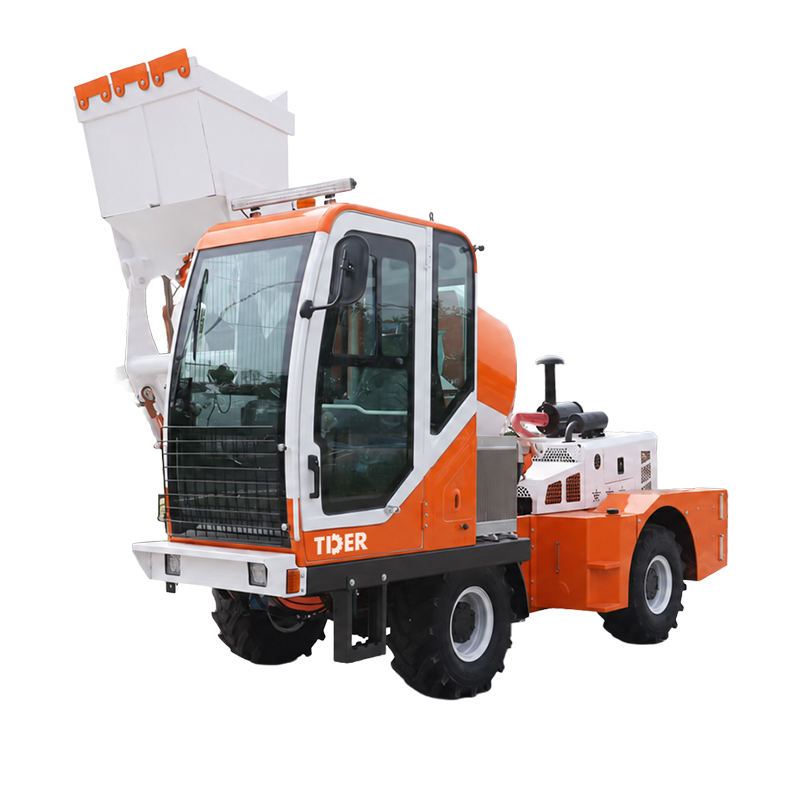

4m³ Concrete Mixer Truck
TCM40A
Features
High-Efficiency Hydraulic Transmission for Reduced Power Loss
The TCM40A adopts a Rexroth piston motor matched with a military-grade reducer. The integrated flow distribution and output shaft design improves oil distribution accuracy and hydraulic transmission efficiency, allowing more effective power transfer to the mixing drum. This optimized design helps maintain smooth drum rotation and stable mixing performance during continuous operation.
Dedicated Mixer Axle for Reliable and Efficient Operation
The TCM40A is equipped with a dedicated mixer truck axle designed for continuous heavy-load operation. The reinforced axle structure provides higher load capacity and durability, while the optimized lightweight design maintains strength while reducing unnecessary weight, improving transportation efficiency and operating economy. Combined with hydraulic wheel-side drive and dual braking system, it delivers strong traction and reliable control in demanding construction environments.
Safety-Oriented Design for Heavy-Duty Construction
The TCM40A integrates multiple safety features designed for demanding construction environments. The dual braking system provides reliable stopping control under heavy loads, while reverse camera, warning lights, LED lighting and emergency equipment improve visibility and operator protection during daily operations.
Premium Brand Tires for Reliable Site Performance
The TCM40A is equipped with high-quality tires from leading Chinese brands such as Chaoyang, Linglong and Triangle. These tires provide strong load support, excellent durability and reliable traction, helping the machine maintain stable operation during heavy-duty concrete transportation.
Specifications
| Overall Dimensions | mm | 7600 × 2950 × 3400 |
| Wheelbase | mm | 3000 |
| Operating Weight | kg | 9000 |
| Engine | — | Yuchai YCD4J22T-125, Diesel, Water-Cooled, 4 Cylinders |
| Engine Power | kW | 91 |
| Transmission | — | 280 Split Torque Converter |
| Tire Size | — | 12R-22.5 |
| Bucket Capacity | m³ | 0.7 |
| Mixing Capacity | m³ | 4 |
| Travel Speed | km/h | Low: 0–25; High: 0–40 |
| Drive Type | — | 4×4 Four-Wheel Drive |
| Water Tank Capacity | L | 800 |
| Fuel Tank Capacity | L | 135 |
| Hydraulic Oil Tank Capacity | L | 135 |
Product Showcase
Why Choose TDER?
20+ Years of Expertise
158 Countries Served
42,000㎡ of Advanced Production
Over $91M+ Annual Sales
FAQs
Related Products
-
Concrete Mixer Pump for Construction- Output (High/Low):
11/20 m³/h
- Pressure (High/Low):
8/4 MPa
- Pumping Distance (H/V):
300/120 m
- Output (High/Low):
-
Concrete Pump with Diesel Engine- Output (High/Low):
16/30 m³/h
- Pressure (High/Low):
8/4 MPa
- Pumping Distance (H/V):
350/120 m
- Output (High/Low):
-
Concrete Pump for High-Rise and Infrastructure- Output (High/Low):
23/42 m³/h
- Pressure (High/Low):
13/6.3 MPa
- Pumping Distance (H/V):
550/180 m
- Output (High/Low):
-

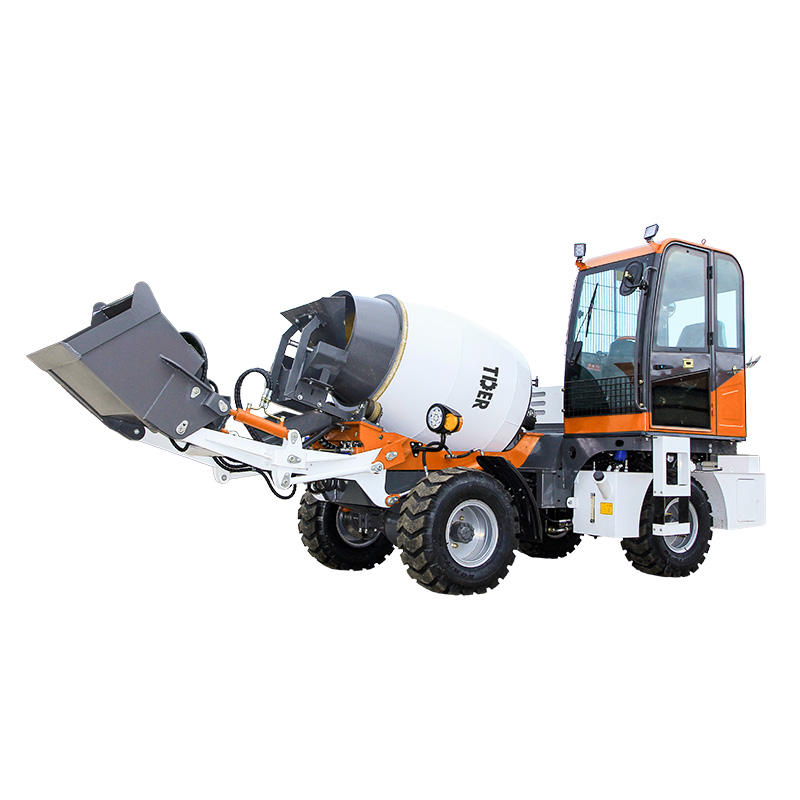

Mini Concrete Mixer Truck for Sale with Rear Cab Design- Max Discharge:
0.7 m³
- Engine Power:
37 kW
- Max Discharge:
-

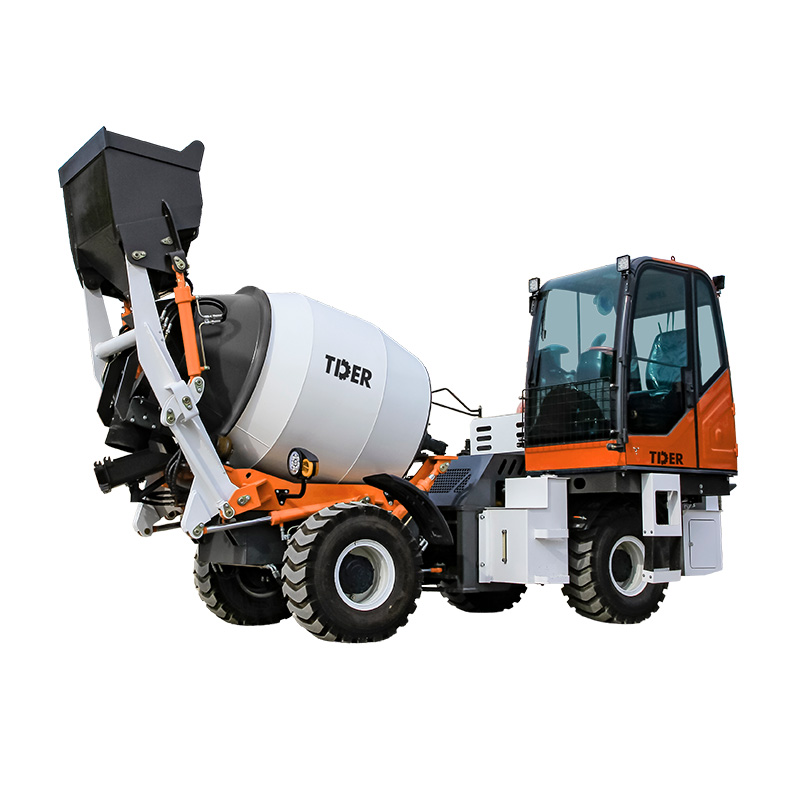

1m³ Mini Cement Mixer Truck for Small Construction- Max Discharge:
1 m³
- Engine Power:
55 kW
- Max Discharge:
-

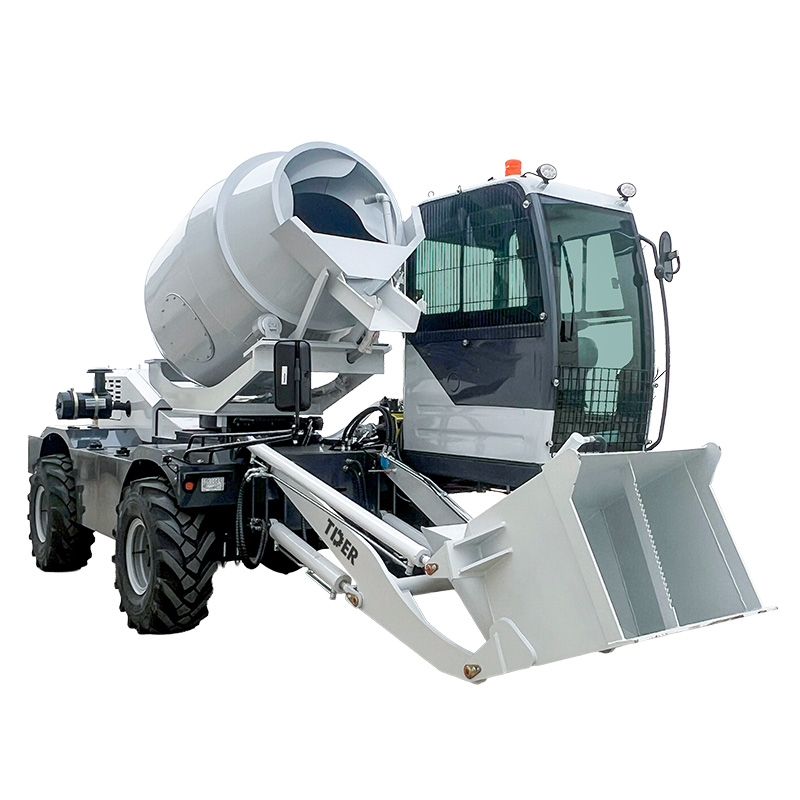

1.5m³ Mix On Site Concrete Truck with 4WD System- Max Discharge:
