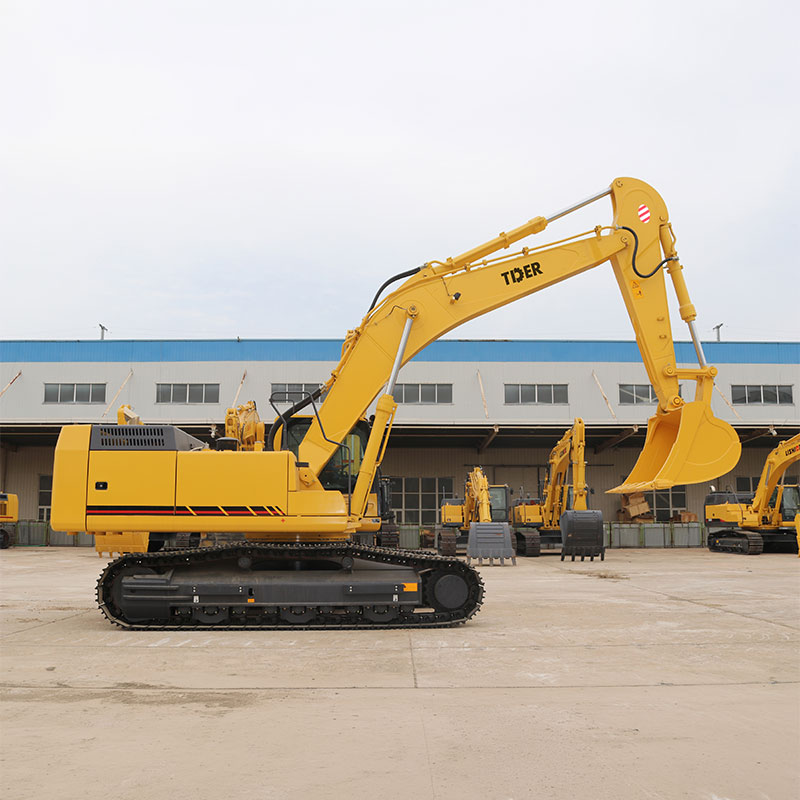

40 Ton Crawler Excavator
TCE400
Features
Cummins-Based Heavy-Duty Power Architecture
The TCE400 is built on a Cummins-powered heavy-duty architecture, delivering consistent energy output across high-load excavation cycles. The powertrain is engineered to support continuous earthmoving and quarry operations, maintaining operational stability under varying working conditions without performance drop.
Kawasaki Hydraulic System for High-Precision Excavation Control
Built with a Kawasaki main pump and control valve system, the TCE400 provides strong hydraulic response and stable oil flow distribution. This premium hydraulic architecture improves digging accuracy, enhances multi-action coordination, and ensures efficient operation under demanding load conditions.
Doosan Travel Motors with Kawasaki Swing System for Strong Mobility
Equipped with Doosan travel motors and Kawasaki swing motor integration, the TCE400 delivers powerful traction and smooth rotation performance. This combination improves maneuverability on complex terrain while maintaining stable swing control during heavy bucket operations.
Large Bucket Capacity for High-Efficiency Material Handling
With a 2m³ heavy-duty bucket, the TCE400 is designed for high-volume excavation and loading tasks. This improves cycle efficiency in bulk earthmoving, quarry loading, and large-scale construction projects, reducing operational time per cycle.
Specifications
| Operating Weight | Kg | 40000 |
| Engine Model | Cummins QSM11 | |
| Rated Power | Kw/rpm | 250/1800 |
| Bucket Capacity | m³ | 2 |
| Swing Speed | (r/min) | 7.60 |
| Traveling Speed | km/h | 4.8/2.7 |
| Gradeability | ° | 70° |
| Hydraulic System | Kawasaki | |
| Hydraulic system working pressure | Mpa | 34.3 |
| Hydraulic Pump | Kawasaki | |
| Hydraulic tank volume | L | 335 |
| Swing Motor | Kawasaki | |
| Traveling Motor | Doosan | |
| Operating Range | ||
| Max. Digging Radius | mm | 9850 |
| Max. Digging Depth | mm | 7025 |
| Max. Digging Height | mm | 10100 |
| Max. Dumping Height | mm | 7060 |
| Min. Swing Radius | mm | 4581 |
| Overall Dimensions | ||
| Overall Length | mm | 11413 |
| Overall Width | mm | 3340 |
| Overall Height | mm | 3484 |
| Track Width | mm | 3340 |
| Track shoe width | mm | 600 |
