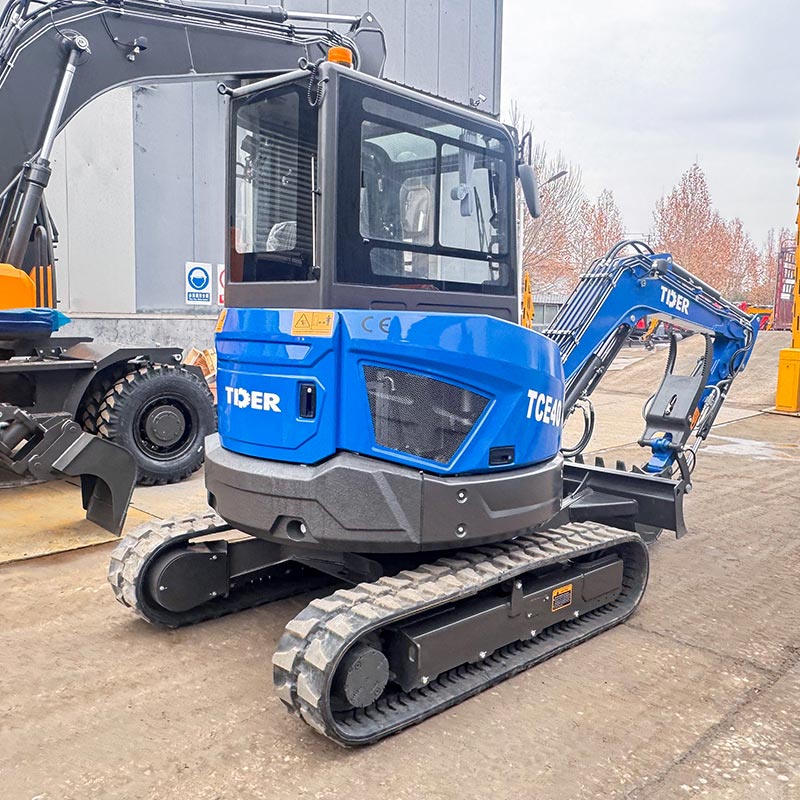

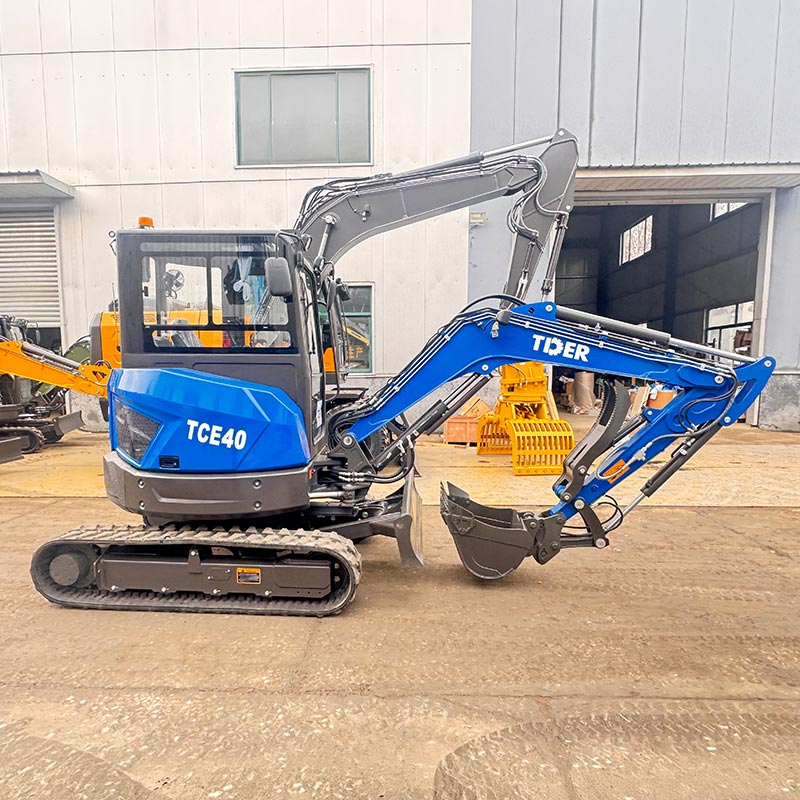

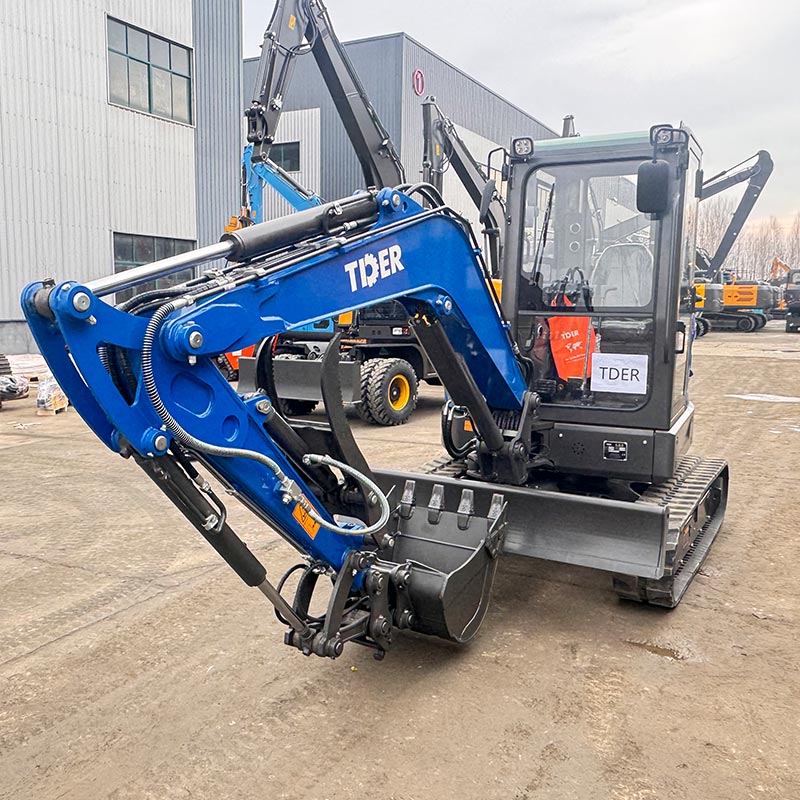

4 Ton Mini Excavator
TCE40
Features
Kubota Engine with Global Emission Compliance
Powered by a Kubota D1703 engine, the TCE40 delivers reliable performance with EPA and Euro 5 certification, combining fuel efficiency with worldwide service support and parts availability.
Zero Tail Swing for Restricted Work Areas
The zero-tail design enables safe operation near walls, buildings, and roadside obstacles, maximizing productivity in confined urban construction environments.
Full Hydraulic Pilot Control for Precision Handling
Standard hydraulic pilot controls provide smooth, low-effort operation with precise machine response, improving accuracy and reducing operator fatigue during long working hours.
Heavy-Duty Steel Tracks with Flexible Upgrade Options
The TCE40 comes standard with steel tracks for strong durability and traction on tough job sites. Optional rubber tracks and widened track pads improve adaptability for different ground conditions.
Side Swing Boom for Obstacle-Side Excavation
The side swing function allows efficient digging alongside walls, foundations, and property boundaries while minimizing machine repositioning.
Comfortable Cab with Climate Control & Safety Options
The TCE40 is equipped with an enclosed cab and air conditioning system, providing a comfortable working environment in all weather conditions. Optional half protective guard can be added to enhance operator safety in harsher job site environments.
Specifications
| Operating Weight | Kg | 4000 |
| Engine Model | Kubota D1703 | |
| Rated Power | kW | 18.2 |
| Bucket Capacity | m³ | 0.12 |
| Bucket Width | mm | 580 |
| Max Digging Force | Kn | 30.4 |
| System Working Pressure | Mpa | 22.5 |
| Swing Speed | rpm | 0-11 |
| Traveling Speed | km/h | 2.4/4.4 |
| Gradeability | ° | 58 |
| Ground Pressure | Kpa | 32 |
| Operating Range | ||
| Max. Digging Distance | mm | 5480 |
| Max. Digging Depth | mm | 3208 |
| Max. Digging Height | mm | 4800 |
| Max. Dumping Height | mm | 3406 |
| Min. Swing Radius | mm | 2250 |
| Overall Dimensions | ||
| Overall Length | mm | 4915 |
| Overall Width | mm | 1720 |
| Overall Height | mm | 2525 |
| Min. Ground Clearance | mm | 395 |
| Track Ground Length | mm | 1670 |
| Track Width | mm | 300 |
