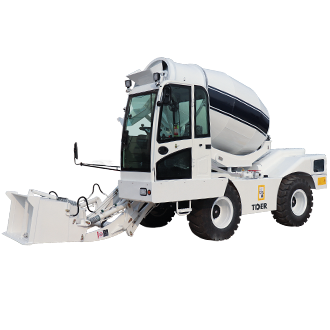

3m³ Concrete Mixer Truck
TCM30
Features
Integrated Frame Design for Long-Term Reliability
TCM30 adopts an integral frame chassis structure, reducing the number of structural connection points compared with articulated designs. Combined with a 6800 kg operating weight and 4×4 front steering system, the machine provides a durable platform for daily mixing, loading, and transportation operations while simplifying maintenance requirements.
Uniform Mixing Performance with Double Helical Blade System
TCM30 features a double helical blade design with a guide screw inside the mixing drum, helping materials achieve more consistent blending during each cycle. The optimized mixing structure reduces uneven mixing and supports stable concrete quality for repeated production.
Dual-Speed Mixing System for Different Working Stages
The dual-speed mixing function allows TCM30 to adjust drum operation according to different working conditions. Higher speed supports efficient mixing preparation, while lower speed helps maintain material consistency during transportation and waiting periods.
Electronic Weighing System for Accurate Material Control
TCM30 is equipped with an electronic weighing system to help operators monitor material quantities during loading and mixing. This improves batching accuracy, reduces dependence on operator experience, and supports more consistent concrete production.
Simplified Loading Control for Higher Operator Efficiency
TCM30 integrates hydraulic bucket control, electric control buttons, and a four-way joystick system to simplify loading and material handling operations. Operators can manage feeding and mixing preparation with fewer manual adjustments during repeated cycles.
Complete Jobsite Support System for Daily Productivity
TCM30 includes a hydraulic self-priming water system, high-pressure cleaning system, electronic monitoring, air conditioning, and safety accessories to support continuous operation and easier maintenance throughout the working day.
Specifications
| Machine Type | — | Integral Frame Chassis, Self-Loading, Mixing & Transporting |
| Applications | — | Mixing and Discharging Concrete, Sand, Fertilizer, Wet or Dry Feed Materials |
| Productivity | — | ≤15 min/batch, Up to 4 Batches/Hour |
| Drive Type | — | 4×4 Four-Wheel Drive, Front Steering |
| Engine | — | Yunei YN38GBZ |
| Engine Power | kW | 76 |
| Engine Speed | rpm | 2200 |
| Travel Speed (High) | km/h | 36.5 |
| Travel Speed (Low) | km/h | 6.5 |
| Gearbox | — | 3 Forward / 3 Reverse Gears |
| Fuel Consumption (Idle) | L/h | 2–3 |
| Fuel Consumption (Working) | L/h | 6–8 |
| Tire Size | — | 16/70-20 |
| Mixing Drum Geometric Capacity | m³ | 4.6 |
| Recommended Mixing Capacity | m³ | 2.6–3.0 |
| Mixing Blade Type | — | Double Helical Blades with Guide Screw for Uniform Mixing |
| Mixing Drum Tilt Angle | ° | 16 |
| Drum Discharge Rotation | ° | 270 |
| Discharge Chute | — | Equipped with Two Detachable Chutes |
| Bucket Capacity | m³ | 0.35 |
| Bucket Discharge Control | — | Hydraulic Gate with Electric Control |
| Operating Control | — | Electric Control Button with 4-Way Joystick |
| Water Supply System | — | Hydraulic Self-Priming Water Pump |
| High-Pressure Cleaning System | — | High-Pressure Water Pump |
| Weighing System | — | Electronic Weighing System (Multi-Language Optional) |
| Battery | V / Ah | 24 V, 100 Ah × 2 |
| Water Tank Capacity | L | 370 |
| Fuel Tank Capacity | L | 180 |
| Operating Weight | kg | 6800 |

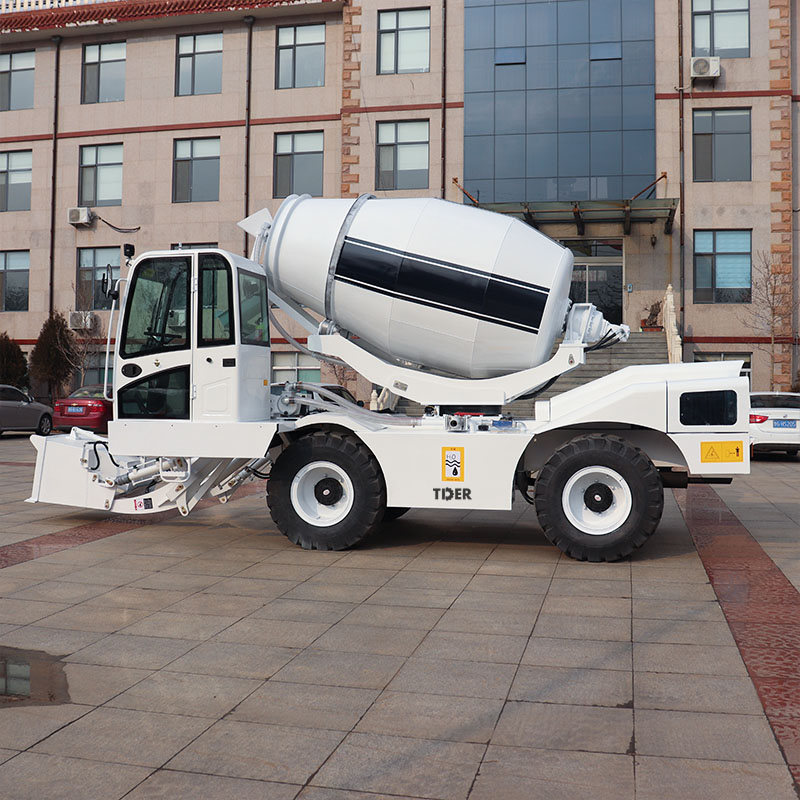

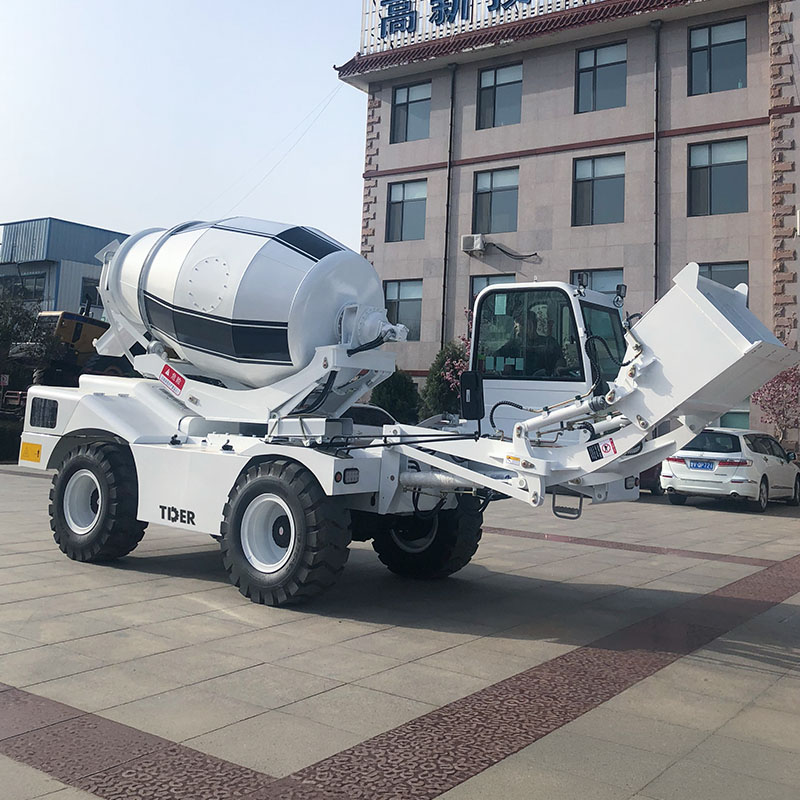

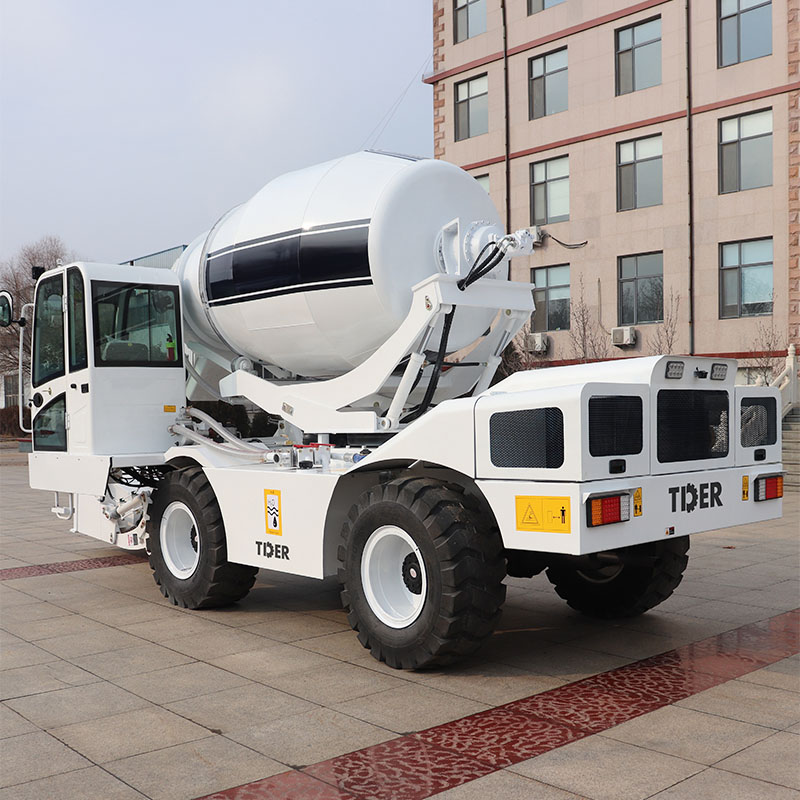

Product Showcase
