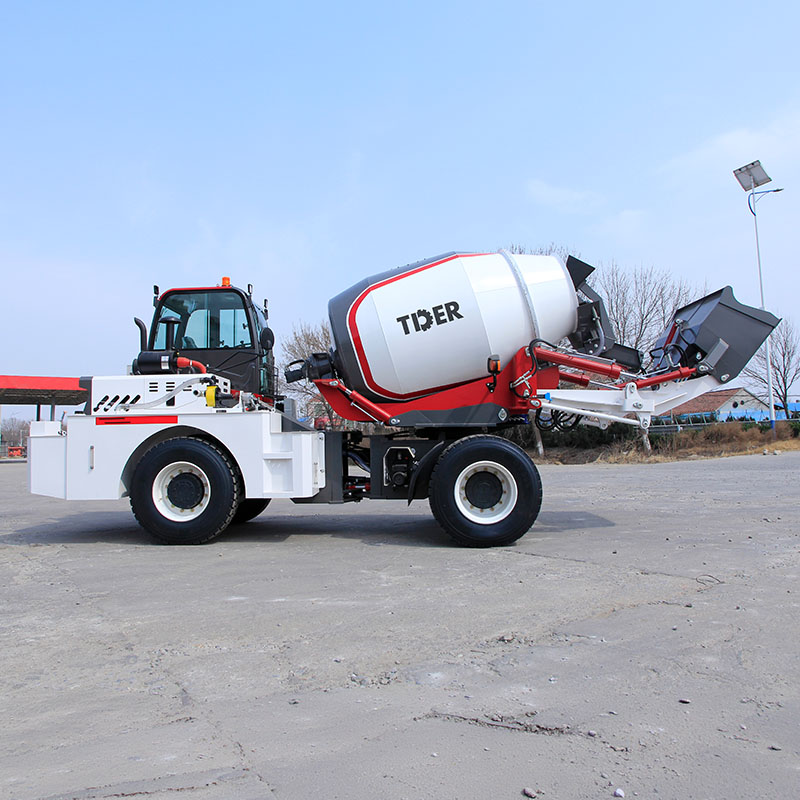

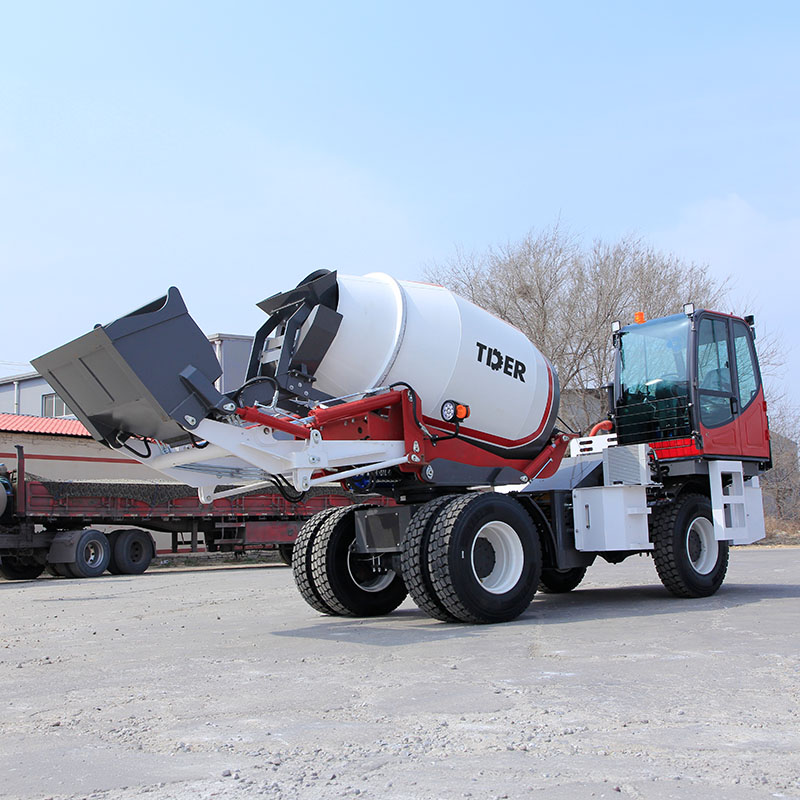

3m³ Concrete Mixer Truck
TCM30
Features

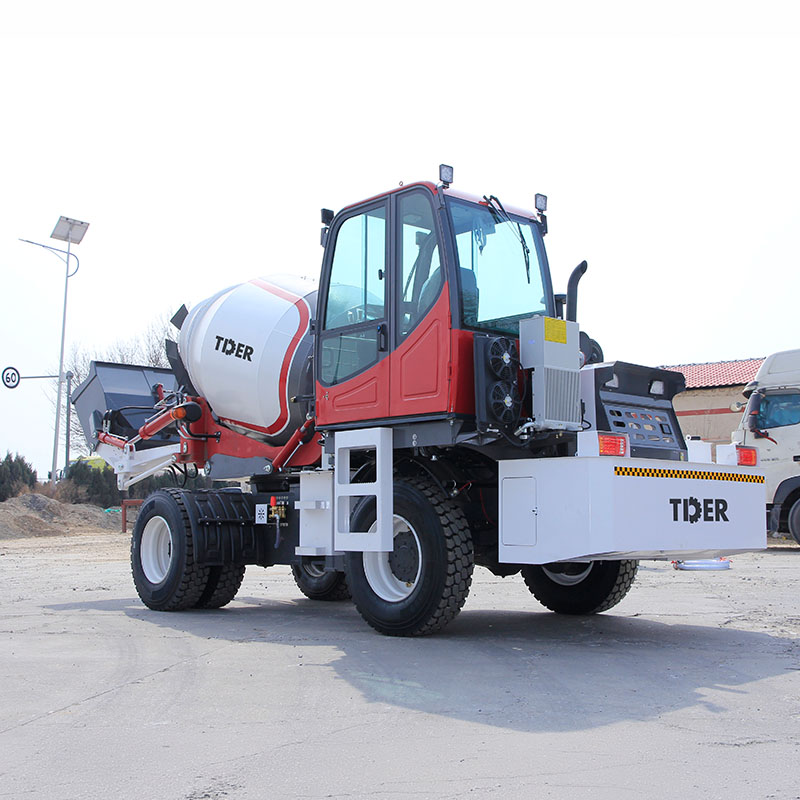

Rear Cab Configuration for Better Workflow Efficiency
Unlike conventional layouts, TCM30’s rear cab arrangement creates a more direct connection between loading, mixing, and discharge operations. Combined with synchronized drum rotation, the machine allows smoother task transitions and reduces interruptions during continuous concrete production.
Powertrain Options for Different Market Requirements
TCM30 offers engine options including Cummins and Yuchai Euro V engines, allowing contractors and distributors to select the power solution that best matches local emission standards, fuel conditions, and service availability. This flexibility helps reduce import barriers and provides easier long-term maintenance support in different markets.
Large-Capacity Mixer with Efficient Site Mobility
Despite its larger mixing capacity, TCM30 maintains efficient movement between material loading areas and pouring locations through its 4×4 drivetrain and 35 km/h travel capability. This allows contractors to serve multiple working points with one machine and improve utilization across larger job sites.
Specifications
| Overall Dimensions | mm | 6700 × 2800 × 4220 |
| Wheelbase | mm | 3200 |
| Operating Weight | kg | 8700 |
| Engine | — | Yudong |
| Engine Power | kW | 85 |
| Transmission | — | 280 Split Transmission |
| Drive Axle | — | 2.5T Wheel Side Reduction Axle |
| Tire Size | — | 16/70 R22.5 Dual Tires |
| Bucket Capacity | m³ | 0.65 |
| Mixing Capacity | m³ | 3 |
| Reduction Ratio | — | 0.061111111 |
| Drum Rotation Speed | rpm | ≥15 |
| Reducer | — | Domestic Brand |
| Travel Speed | km/h | 35 |
| Drive Type | — | 4×4 Four-Wheel Drive |
| Water Tank Capacity | L | 640 |
| Fuel Tank Capacity | L | 170 |
| Hydraulic Oil Tank Capacity | L | 140 + 26 |
