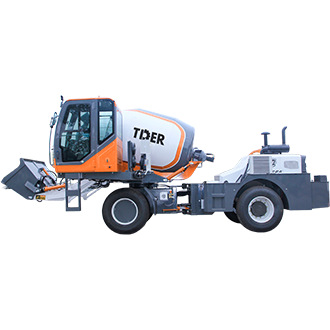

3m³ Concrete Mixer Truck
TCM30
Features
Synchronized Rotation System for Flexible Concrete Discharge
TCM30 features a synchronized cab and drum rotation structure, allowing the operator to adjust the working direction without repeatedly repositioning the machine. This improves discharge flexibility when working around foundations, narrow areas, and complex jobsite layouts.
Heavy-Duty Tire Configuration for Full-Load Stability
Equipped with 16/70-22.5R steel vacuum dual tires and a six-wheel layout, TCM30 provides stronger load support and improved ground contact. The reinforced tire configuration helps maintain stability when transporting concrete under heavy working conditions.
Integrated Self-Loading Mobility for Independent Jobsite Operation
TCM30 combines a 0.65m³ loading bucket with a 35 km/h travel speed, allowing operators to complete material loading, concrete preparation, and movement between different working areas with one machine. This integrated design reduces dependence on additional loading equipment and improves operational flexibility, especially for remote projects, temporary job sites, and locations with limited supporting equipment.
Service-Oriented Cab Design for Easier Maintenance
The front-opening windshield cab design provides easier access for inspection and maintenance. Combined with hydraulic external water suction and integrated cleaning functions, TCM30 helps simplify daily service work and reduce downtime.
Operator Assistance Package for Safer Operation
Front and rear cameras, display monitoring, LED lighting, digital dashboard, and suspension seating improve visibility and operating comfort. These features help operators manage a larger machine more safely during long working hours.
Specifications
| Overall Dimensions | mm | 6700 × 3000 × 4220 |
| Wheelbase | mm | 3200 |
| Operating Weight | kg | 8700 |
| Engine | — | Yudong |
| Engine Power | kW | 85 |
| Transmission | — | 280 Split Transmission |
| Drive Axle | — | 2.5T Wheel Side Reduction Axle |
| Tire Size | — | 16/70 R22.5 Dual Tires |
| Bucket Capacity | m³ | 0.65 |
| Mixing Capacity | m³ | 3 |
| Reduction Ratio | — | 0.061111111 |
| Drum Rotation Speed | rpm | 2–15 |
| Reducer | — | Domestic Brand |
| Travel Speed | km/h | 35 |
| Drive Type | — | 4×4 Four-Wheel Drive |
| Water Tank Capacity | L | 910 |
| Fuel Tank Capacity | L | 180 |
| Hydraulic Oil Tank Capacity | L | 150 + 26 |

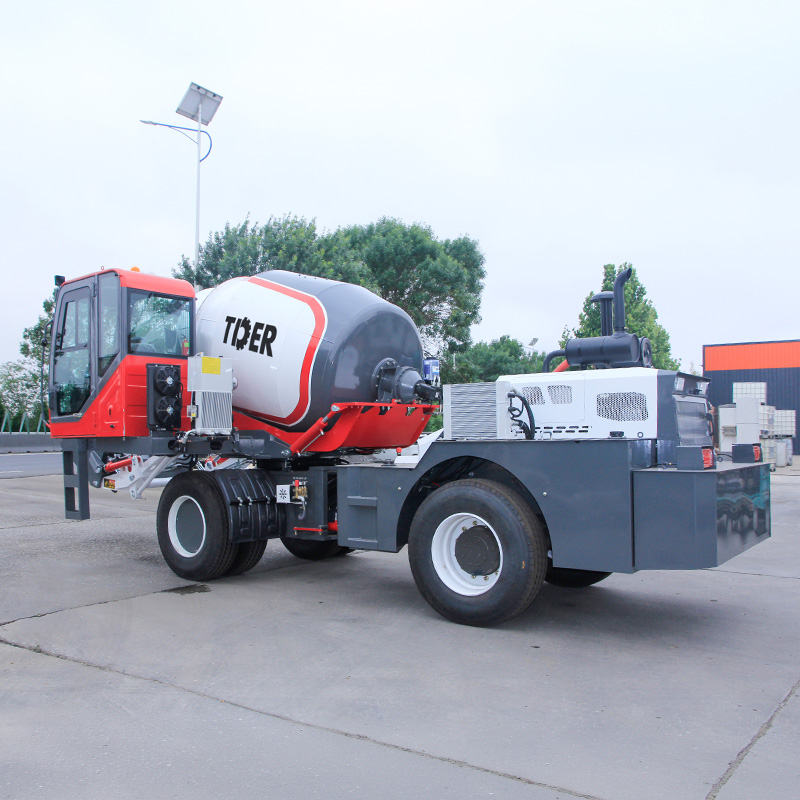

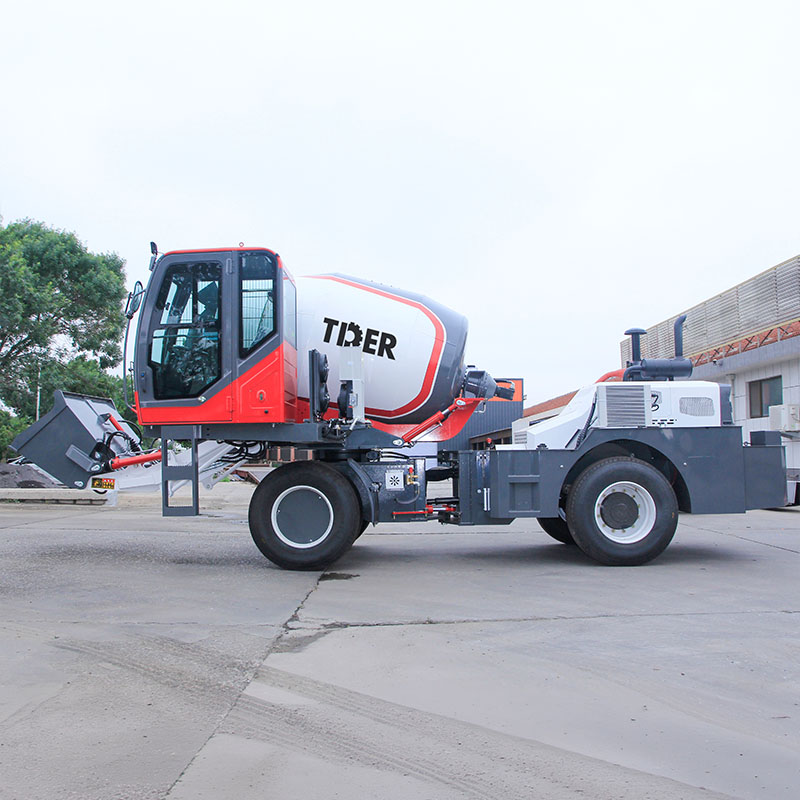

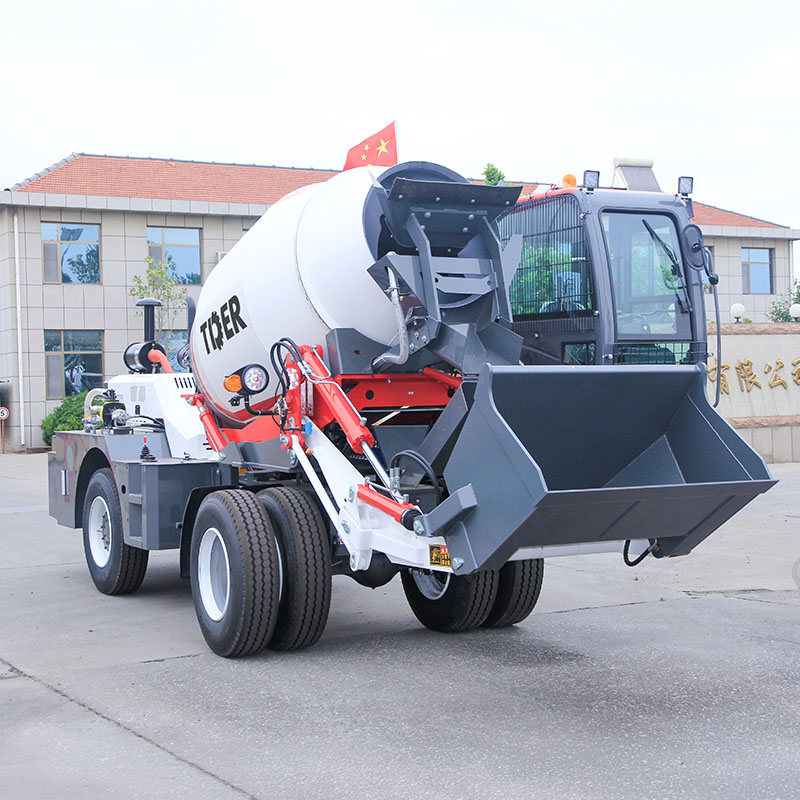

Product Showcase
Why Choose TDER?
20+ Years of Expertise
158 Countries Served
42,000㎡ of Advanced Production
Over $91M+ Annual Sales
