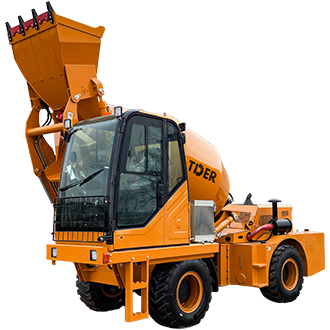

3.5m³ Concrete Mixer Truck
TCM35A
Features
Fixed Cabin Design for More Stable Control
Unlike synchronous rotating cabin models, the TCM35 keeps the cabin fixed while the drum rotates independently, providing operators with a clearer driving direction and more stable control experience. With the drum adjusted to the required discharge angle, the machine can move forward at a constant speed for continuous concrete pouring, making it especially efficient for irrigation channels, roads and linear construction projects.
Heavy-Duty Chassis System for Stable Full-Load Operation
The TCM35 features a reinforced chassis structure combined with 8-ton hydraulic reinforced wheel-side double brake axles. The high-strength double-bent frame provides excellent durability and load-bearing capability, while the heavy-duty axles deliver reliable support and safer braking performance under continuous full-load operation. This design ensures stable performance in demanding construction environments.
Excavator-Level Pilot Control, Smooth and Precise Handling
Adopting an excavator-style pilot control system, the TCM35 provides lighter control effort, smoother operation and higher precision. The system reduces operator fatigue during long working hours, enables easier multi-function coordination and fine control, while improving flexibility for complex hydraulic operations and advanced control layouts.
Engineering-Grade Components Reduce Ownership Cost
The TCM35 is equipped with proven powertrain and hydraulic components, including Yuchai engine with optional Cummins engine solutions, Rexroth hydraulic components and mature hydraulic systems. These reliable components provide stable performance, easier maintenance and better parts availability, helping customers reduce downtime and achieve lower long-term operating costs.
External Hydraulic Water Pump for Independent Field Operation
The hydraulic external water pump allows the machine to draw water directly from available sources, reducing dependence on additional water equipment and improving jobsite flexibility.
Specifications
| Overall Dimensions | mm | 7100 × 2750 × 3300 |
| Wheelbase | mm | 2903 |
| Operating Weight | kg | 8500 |
| Engine | — | Yuchai YCD4J22T-115, Diesel, Water-Cooled, 4 Cylinders |
| Engine Power | kW | 85 |
| Transmission | — | 280 Torque Converter |
| Tire Size | — | 16/70-20 |
| Bucket Capacity | m³ | 0.6 |
| Mixing Capacity | m³ | 3.5 |
| Travel Speed | km/h | Low: 0–25; High: 0–40 |
| Drive Type | — | 4×4 Four-Wheel Drive |
| Water Tank Capacity | L | 800 |
| Fuel Tank Capacity | L | 130 |
| Hydraulic Oil Tank Capacity | L | 130 |

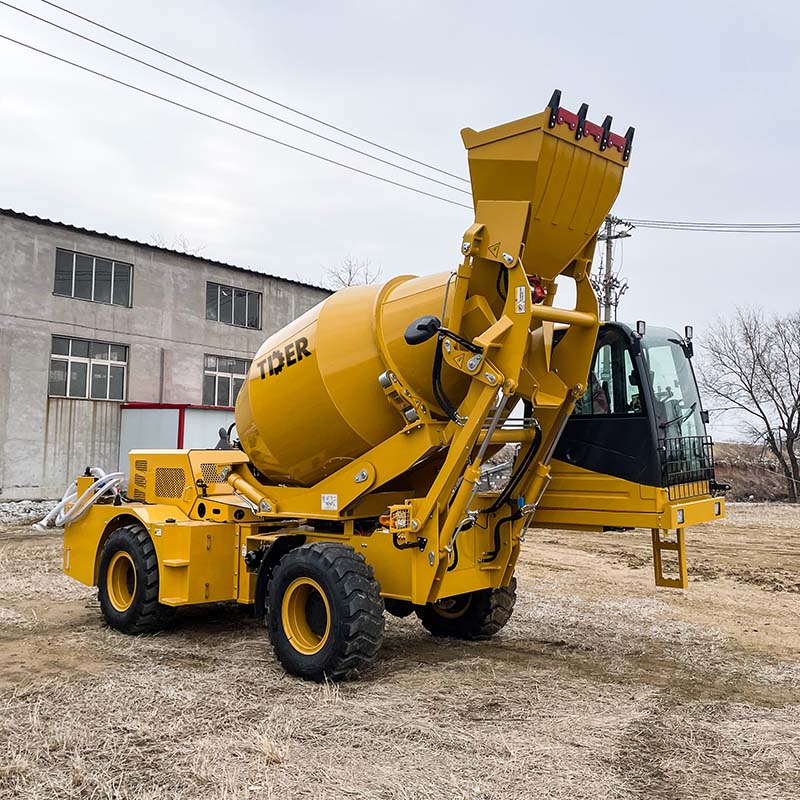

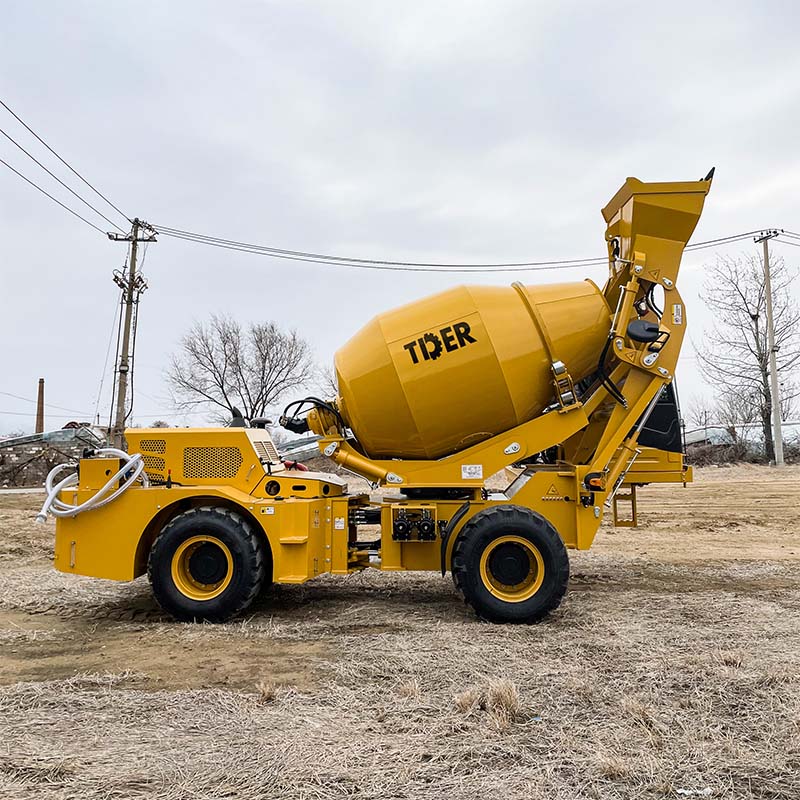

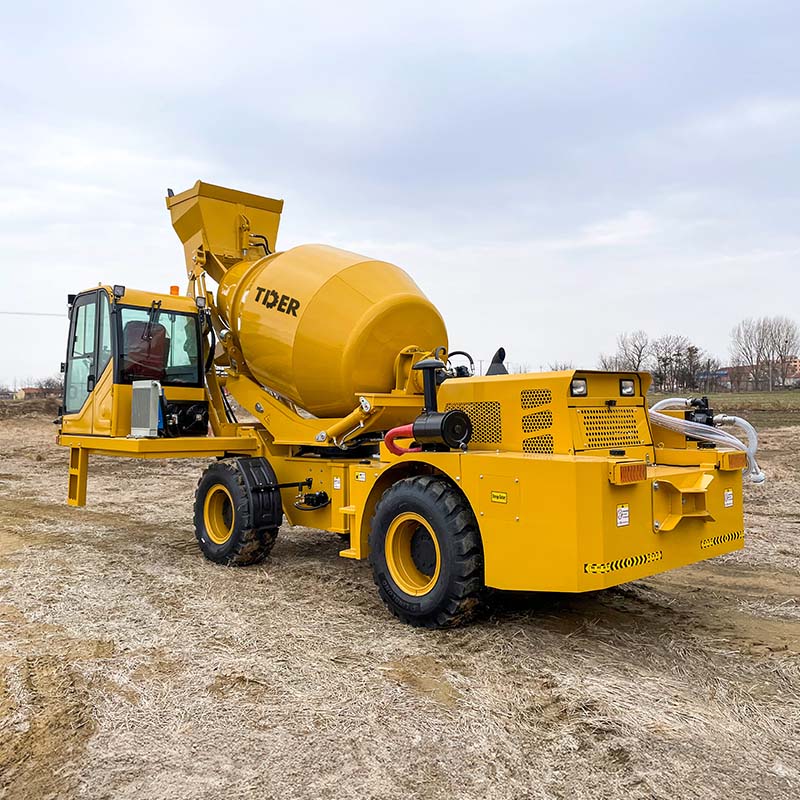

Product Showcase
