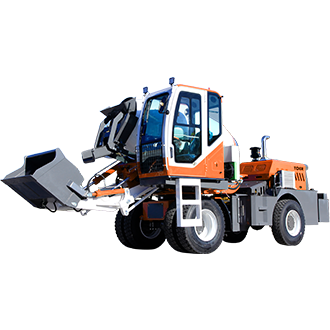

3.5m³ Concrete Mixer Truck
TCM35
Features
High-Output Concrete Production Without External Equipment
TCM35 combines a 5.5m³ mixing drum with integrated loading capability, allowing contractors to prepare and supply concrete independently at the jobsite. This reduces reliance on separate loaders and batching equipment, providing a practical solution for projects requiring higher concrete output with fewer machines.
Synchronized Operation for Continuous Concrete Placement
The synchronized cab and drum rotation design allows operators to maintain the same operating direction throughout loading, transport, and discharge processes. This reduces repeated adjustment during continuous pouring tasks and helps improve workflow consistency.
Enhanced Control During Heavy Transport Cycles
TCM35 is equipped with a reinforced drive and braking system designed for frequent movement with heavy concrete loads. The 25 bridge double-caliper braking structure helps provide stronger stopping control and confidence during repeated transportation cycles.
Extended Working Autonomy with Large Water Supply Capacity
The 910L water tank supports longer operating cycles by reducing frequent water refilling requirements during concrete preparation. Combined with hydraulic external water supply, the system improves jobsite independence for continuous operations.
Specifications
| Overall Dimensions | mm | 6760 × 3000 × 4220 |
| Wheelbase | mm | 3200 |
| Operating Weight | kg | 9000 |
| Engine | — | Yudong 4105 Turbocharged |
| Engine Power | kW | 85 |
| Transmission | — | 280 Split Transmission |
| Drive Axle | — | 2.5T Wheel Side Reduction Axle |
| Tire Size | — | 16/70 R22.5 Dual Tires |
| Bucket Capacity | m³ | 0.65 |
| Mixing Capacity | m³ | 3.5 |
| Reduction Ratio | — | 0.061111111 |
| Drum Rotation Speed | rpm | ≥15 |
| Reducer | — | HLGF-BZ700 |
| Travel Speed | km/h | 35 |
| Drive Type | — | 4×4 Four-Wheel Drive |
| Water Tank Capacity | L | 910 |
| Fuel Tank Capacity | L | 180 |
| Hydraulic Oil Tank Capacity | L | 150 + 26 |

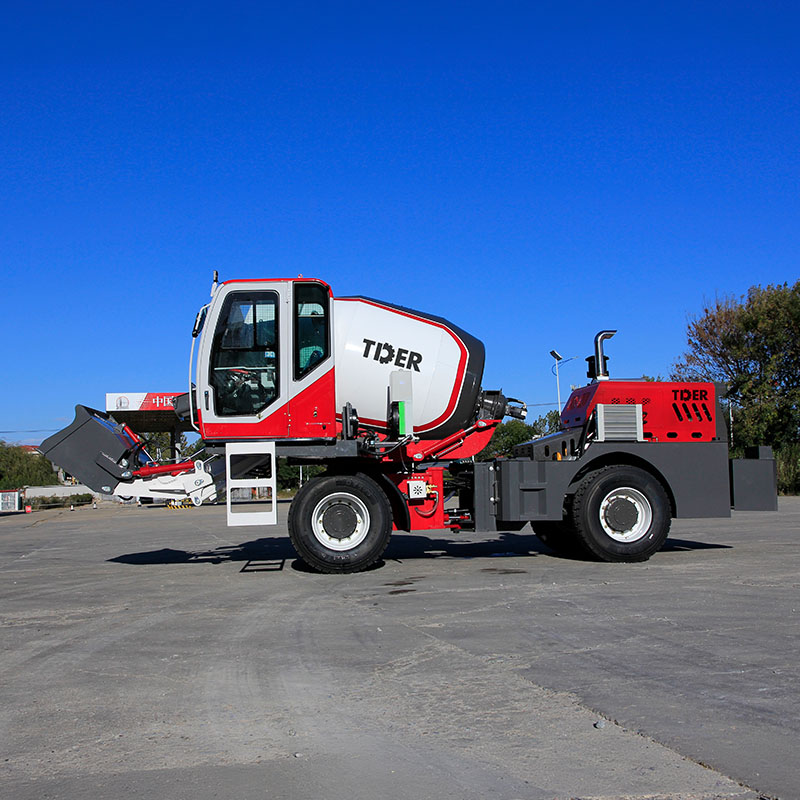

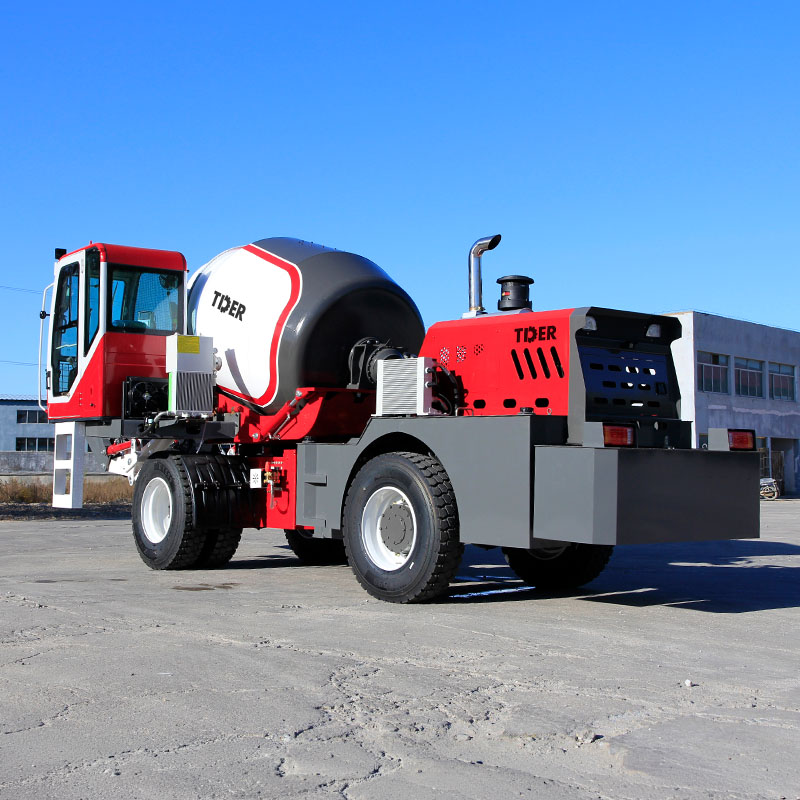

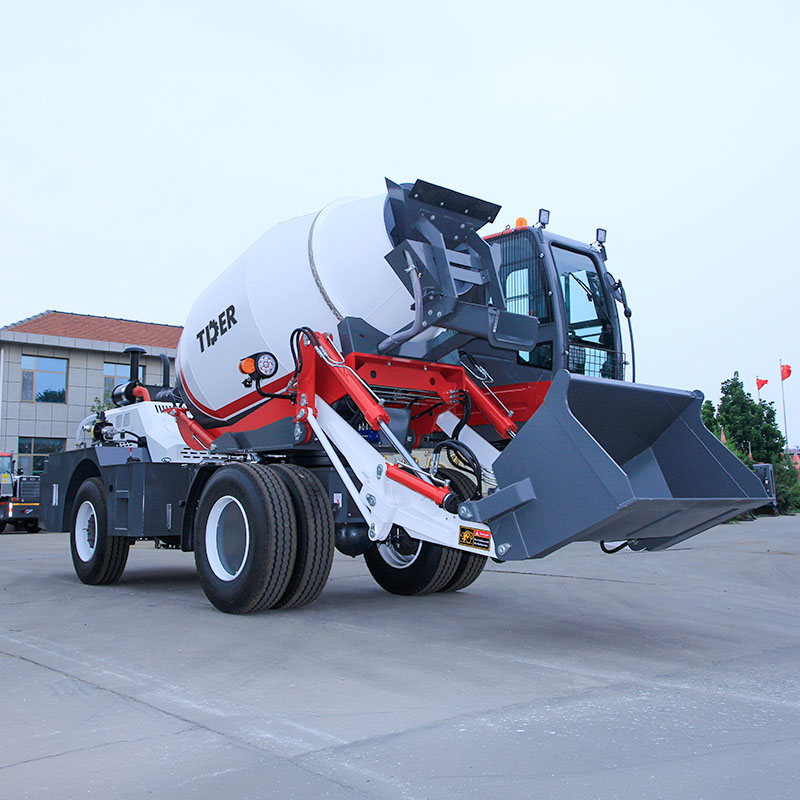

Product Showcase
