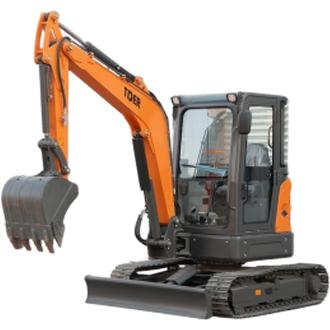

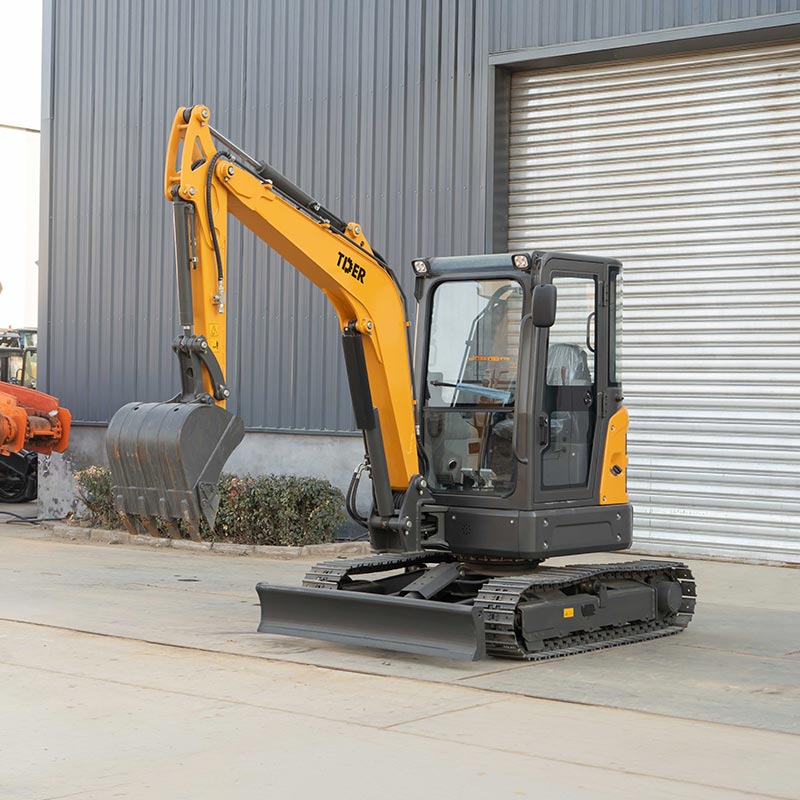

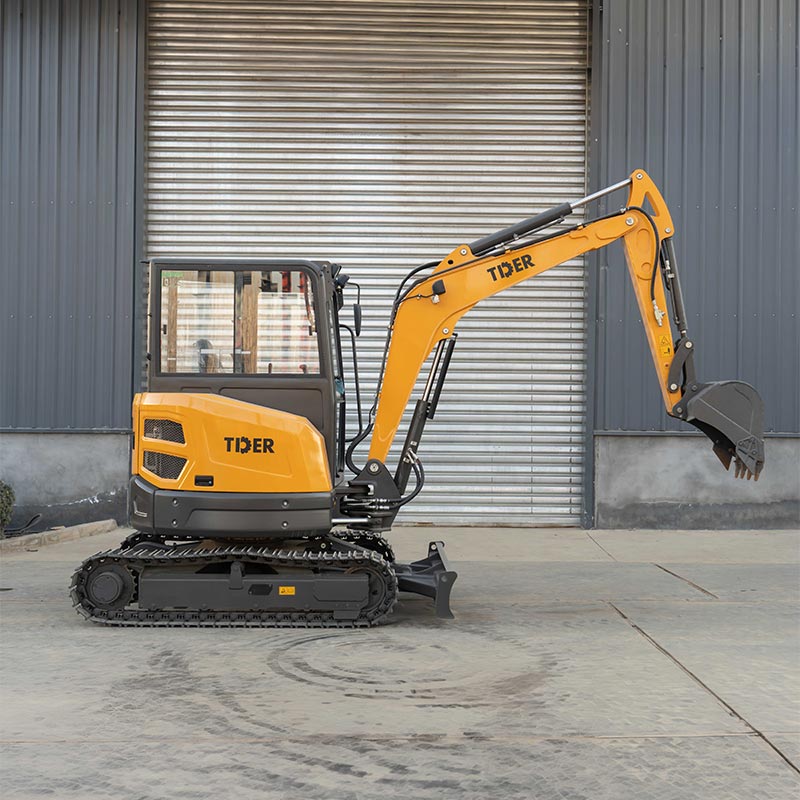

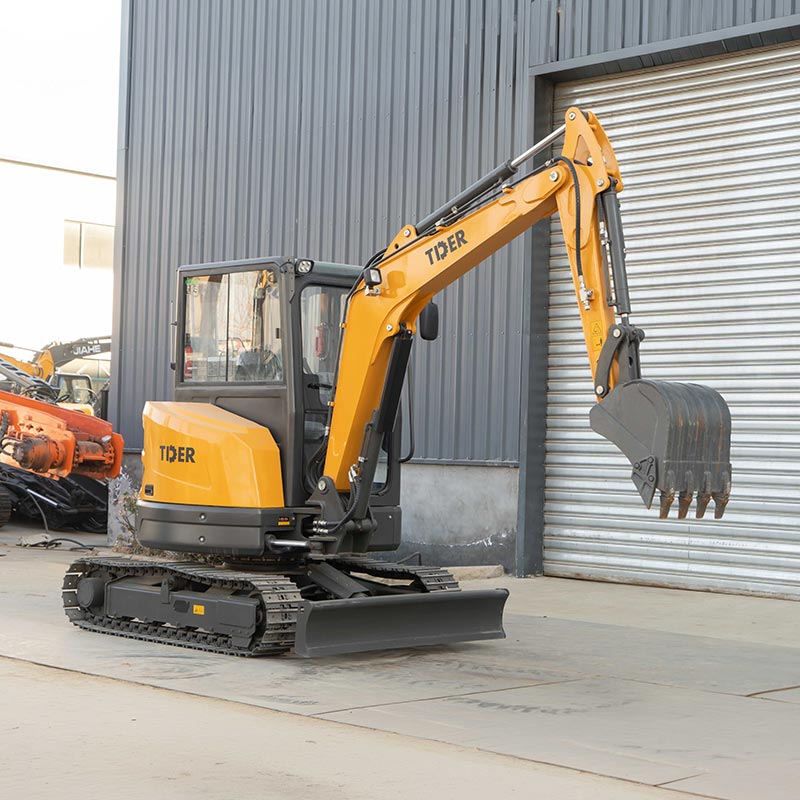

3.5 Ton Mini Excavator
TCE35
Features
Kubota Engine for Proven Jobsite Reliability
Powered by a Kubota D1703 engine with EPA and Euro 5 certification, the TCE35 delivers reliable power, low fuel consumption, and trusted global service support for demanding construction applications.
Load-Sensing Hydraulic System for Precise Control
The piston pump and load-sensing valve system automatically match hydraulic flow to working demand, improving control accuracy, reducing energy loss, and enhancing overall operating efficiency.
Zero Tail Swing for Confined Jobsite Access
The zero-tail design allows full machine rotation within its track width, enabling safe operation close to buildings, walls, and roadside obstacles without sacrificing productivity.
Heavy-Duty Steel Tracks for Tough Terrain
Standard steel tracks provide excellent durability and traction on rocky, muddy, and demanding construction sites, making the machine suitable for long-term heavy-duty operation.
Side Swing Boom for Precision Excavation
The side swing boom enables efficient trenching along walls, fences, and foundations while reducing the need for machine repositioning in restricted work areas.
Sound-Insulated Cab with Climate Control
The enclosed cab features sound insulation, vibration reduction, and integrated heating and air conditioning, creating a quieter and more productive operating environment throughout the year.
Two-Speed Travel for Faster Site Movement
The high-low travel speed system allows quick machine relocation and strong climbing performance, improving efficiency across different jobsite conditions.
Specifications
| Operating Weight | Kg | 3500 |
| Engine Model | Kubota D1703 | |
| Rated Power | kW | 18.2 |
| Bucket Capacity | m³ | 0.12 |
| Bucket Width | mm | 580 |
| Max Digging Force | Kn | 30.4 |
| System Working Pressure | Mpa | 22.5 |
| Swing Speed | rpm | 0-11 |
| Traveling Speed | km/h | 2.4/4.4 |
| Gradeability | ° | 58 |
| Ground Pressure | Kpa | 32 |
| Operating Range | ||
| Max. Digging Distance | mm | 5480 |
| Max. Digging Depth | mm | 3208 |
| Max. Digging Height | mm | 4800 |
| Max. Dumping Height | mm | 3406 |
| Min. Swing Radius | mm | 2250 |
| Overall Dimensions | ||
| Overall Length | mm | 4915 |
| Overall Width | mm | 1720 |
| Overall Height | mm | 2525 |
| Min. Ground Clearance | mm | 395 |
| Track Ground Length | mm | 1670 |
| Track Width | mm | 300 |
