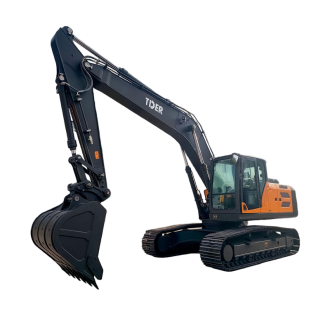

30 Ton Crawler Excavator

TCE300

  • Engine Power :

    169 kW

  • Operating Weight :

    30000 kg

  • Dig Depth :

    6480 mm

Crawler Mounted Hydraulic Excavator
Hydraulic Excavator Crawler Mounted
Hydraulic Crawler Excavator

30 Ton Crawler Excavator for Mining, Quarry & Construction

Inquiry
Features
Cummins Power for Maximum Productivity

Powered by a proven Cummins turbocharged engine and supported by a high-efficiency hydraulic system, the TCE300 delivers strong digging performance, responsive machine control, and dependable operation in demanding construction, quarrying, and mining environments. The optimized powertrain helps maximize productivity while reducing fuel consumption and downtime.

High-Production Performance for Large-Scale Projects

Designed for demanding earthmoving and infrastructure applications, the TCE300 combines high material-moving capacity with an extensive working range. Its powerful digging capability and deep excavation performance allow operators to move more material efficiently, tackle large foundations, and complete trenching or loading tasks with fewer machine repositioning cycles, helping maximize productivity on every jobsite.

Stable Undercarriage for Tough Terrain

Featuring a reinforced crawler undercarriage and wide steel tracks, the TCE300 delivers excellent stability and ground contact. It performs confidently on uneven, soft, or challenging terrain commonly found in construction sites, mines, and quarry operations.

Operator Comfort for Long Working Hours

The spacious cabin is equipped with pilot controls and air conditioning, creating a comfortable working environment that helps reduce operator fatigue. Smooth machine control and improved visibility contribute to higher productivity throughout extended shifts.

Ready for Multiple Attachments

With factory-installed hydraulic breaker piping, the TCE300 is prepared for a wide range of attachments. This flexibility allows contractors to easily switch between excavation, demolition, rock breaking, and other specialized applications, maximizing equipment utilization.

Optional KPM Hydraulic Upgrade

For customers requiring premium hydraulic performance, the TCE300 can be upgraded with KPM hydraulic components. This option enhances system efficiency, responsiveness, and durability, making it particularly suitable for intensive mining and high-production applications.

Long-Reach Configuration for Specialized Projects

An optional long-reach boom configuration expands the machine's working radius significantly, making it ideal for river dredging, slope maintenance, canal construction, and other applications where extended reach is essential. This capability helps complete challenging projects with fewer machine movements and greater efficiency.

Specifications
Operating Weight Kg 30000
Engine Model   Cummins QSB7
Rated Power Kw/rpm 169/2200
Bucket Capacity 1.5
Swing Speed rpm 15.00
Traveling Speed km/h 4.3/2.4
Gradeability ° 30°
Hydraulic System
Hydraulic system working pressure Mpa 34
Hydraulic Pump   Nakagawa
Hydraulic Valve   Nakagawa
Swing Motor   Nakagawa
Traveling Motor   Lonking
Operating Range
Max. Digging Radius mm 9850
Max. Digging Depth mm 6480
Max. Digging Height mm 9410
Max. Dumping Height mm 6730
Min. Swing Radius mm 3555
Overall Dimensions
Overall Length mm 9720
Overall Width mm 2980
Overall Height mm 3185
Track Width mm 2980
Track length mm 4437

Product Showcase

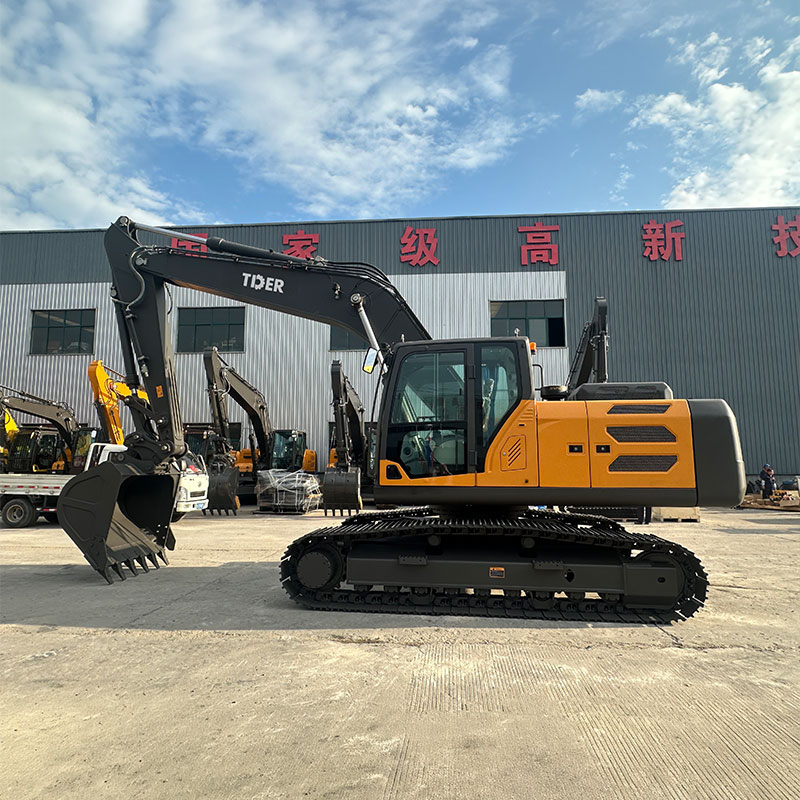

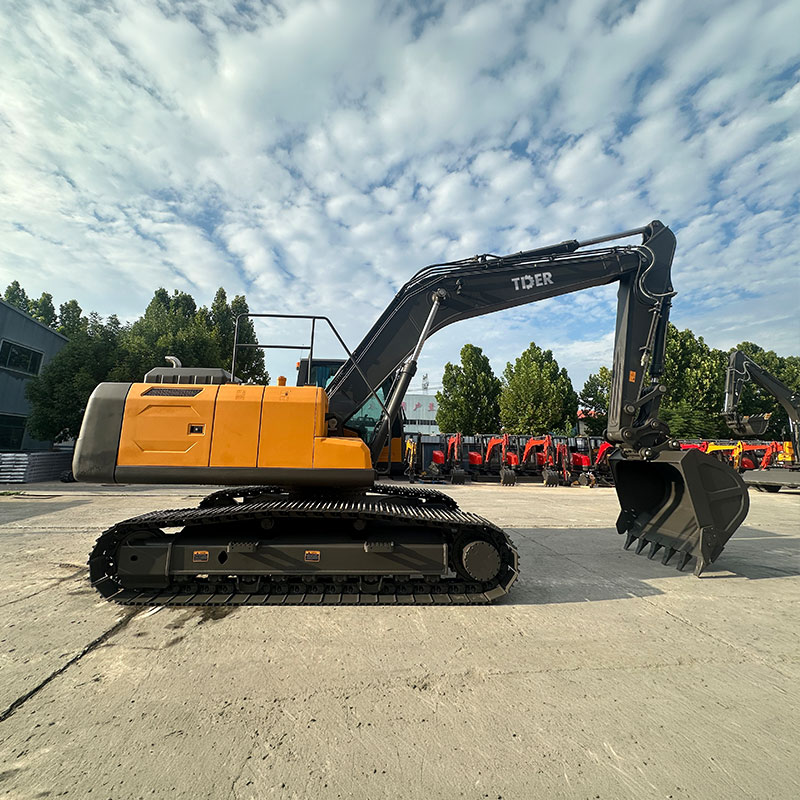

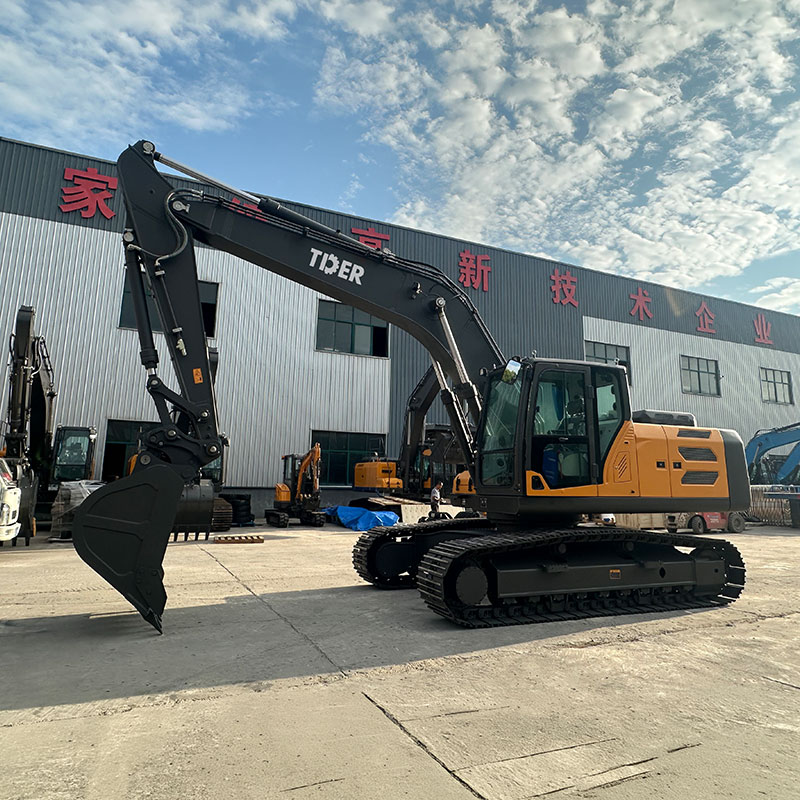

Crawler Mounted Hydraulic Excavator

Why Choose TDER?



20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

Gallery
  • Images
FAQs



Are you a manufacturer or trading company?
TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.
What payment terms do you accept?
We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.
I am a first-time importer and don’t know the import process. What should I do?
We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.



What is the delivery time?
Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.
What about warranty?
Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.
Do you supply spare parts?
Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.
Do you have international certifications?
All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.
Can the machine be customized?
Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
