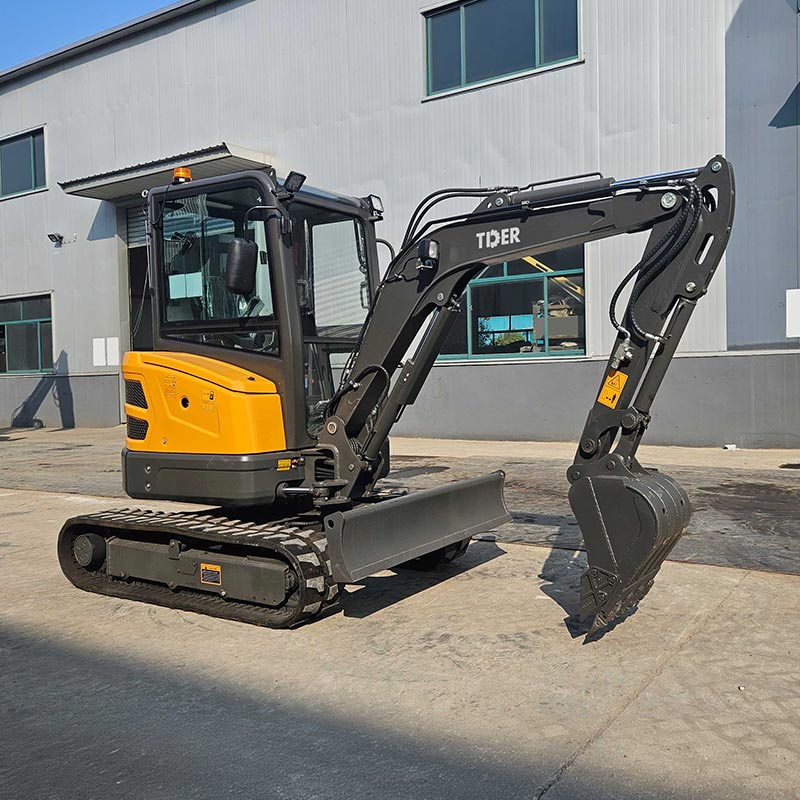

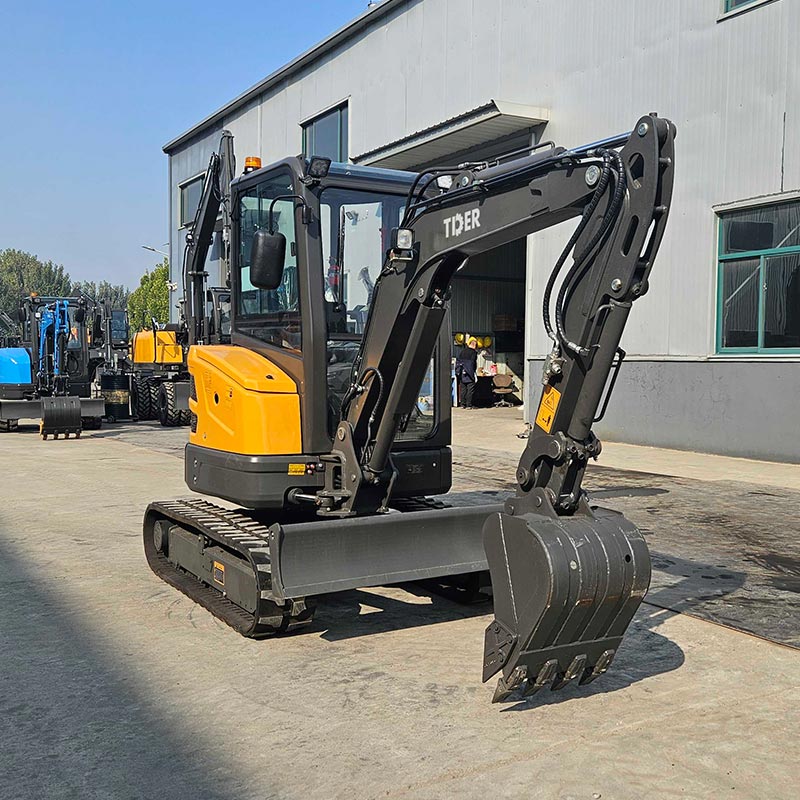

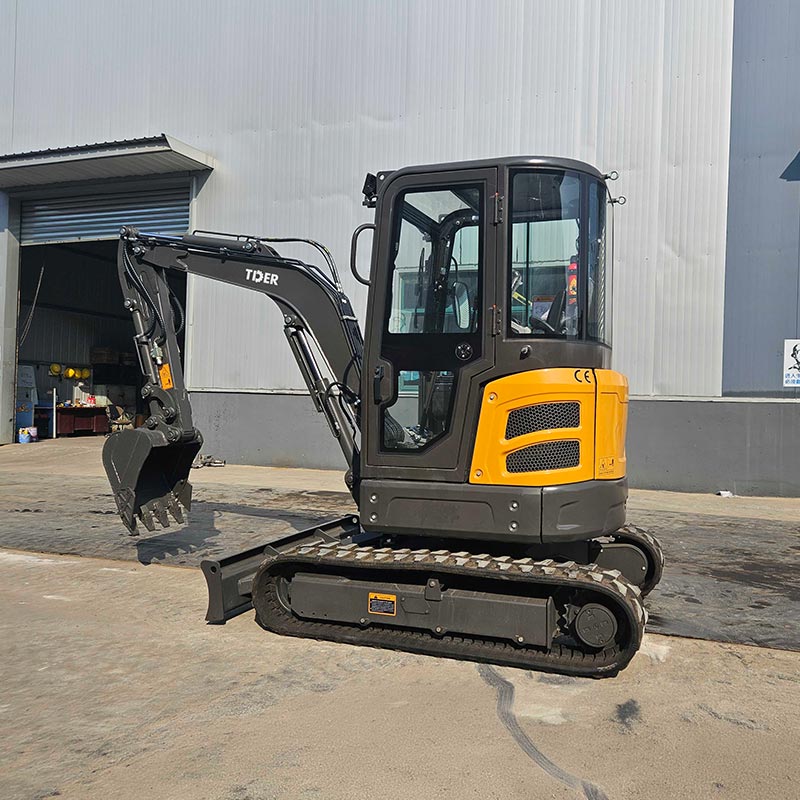

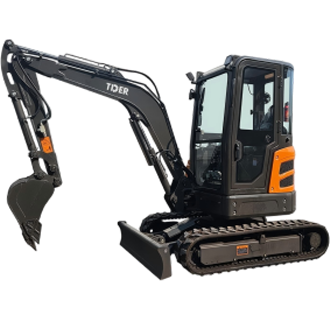

3 Ton Mini Excavator
TCE30D
Features
Zero Tail Design for Safe Operation in Tight Job Sites
The TCE30D zero tail structure allows full rotation without rear-end interference, making it safer and more efficient for work in confined urban construction areas and narrow job sites.
Standard Kubota Engine for Proven Reliability
It comes standard with a Kubota D1105 engine, delivering reliable power, excellent fuel efficiency, and EPA/Euro 5 compliance. The globally recognized Kubota platform also provides easier parts availability and long-term service support for international customers.
Piston Pump Hydraulic System for Stronger Control Precision
The load-stable piston pump system delivers higher hydraulic efficiency and smoother response, ensuring precise control during digging, lifting, and multi-function operation under heavy load conditions.
High-Low Speed Travel System for Flexible Jobsite Movement
The high and low travel speed function allows the machine to switch between fast movement and strong torque output, improving adaptability on both soft ground and uneven construction sites.
All-Weather Cab for Year-Round Performance
The enclosed cab with heating and air conditioning helps maintain a comfortable working environment, supporting consistent productivity across changing weather conditions.
Side Swing Boom for Efficient Wall & Edge Excavation
The side swing function enables lateral boom movement without repositioning the machine, improving efficiency in trenching along walls, foundations, and confined spaces.
Specifications
| Operating Weight | Kg | 3000 |
| Bucket Capacity | m³ | 0.1 |
| Swing Speed | rmp | 1-10 |
| Gradeablity | ° | 58 |
| Max.Bucket Digging Force | KN | 23.5 |
| Max.Arm Digging Force | KN | 14 |
| Engine Model | Kubota D1105 | |
| Rated Power | kW | 15.7 |
| System Pressure | Mpa | 20.5 |
| Dimension Length*Width*Height | mm | 4195x1550x2480 |
| Cabin Height | mm | 2480 |
| Axle Base | mm | 1550 |
| Wheel(track) Distance | mm | 1250 |
| Minimum ground clearance | mm | 285 |
| Tail Swing Radius | mm | 860 |
| Max.Digging Height | mm | 4427 |
| Max.Dumping Height | mm | 3005 |
| Max.Digging Depth | mm | 2830 |
| Max Vertical Digging Depth | mm | 2500 |
| Max.Digging Radius | mm | 4835 |
| Min.Swing Radius | mm | 2160 |
| Max.Dozer Blade Lifting Distance | mm | 308 |
| Max.Dozer Blade Cutting Distance | mm | 360 |
