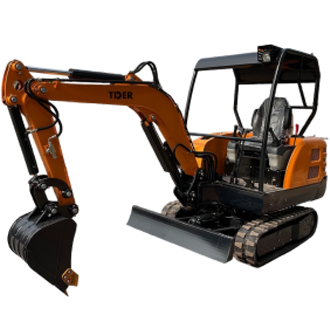

Name: 3 Ton Mini Excavator with Danfoss Motors & Rear Tail Design
Availability: InStock

Features
Specifications
Product Showcase
Gallery
FAQs
Related Products

Features

Conventional Tail Design for Better Stability & Lift Capacity

The TCE30x features a conventional (rear swing) design that provides improved machine stability and better counterweight balance. This allows stronger lifting performance and safer operation when handling heavier loads or working on uneven ground. Compared with zero-tail models, the rear overhang design enhances digging force and overall structural stability, making it more suitable for general construction, earthmoving, and loading tasks where space is less restricted.

Side Swing Boom for Corner & Wall Digging

Equipped with a side swing boom, the machine can easily perform trenching and excavation along walls and edges without frequent repositioning, improving efficiency in narrow or obstacle-rich job sites.

Danfoss-Compatible Travel & Slew System

With optional Danfoss travel and swing motors, the machine offers smoother rotation, stronger load handling, and improved durability under long working cycles.

Rubber Tracks for Stable & Ground-Safe Operation

Standard rubber tracks reduce surface damage while maintaining traction and stability, making the machine suitable for urban construction, landscaping, and residential projects.

Pilot Hydraulic Control for Smooth Operation

Full hydraulic pilot control improves precision and reduces operator fatigue, allowing smoother digging, lifting, and swing movements during continuous work.

Specifications

Operating Weight	Kg	3000
Engine Model		Laidong 3TE30
Rated Power	Kw	22.1
Bucket Capacity	m³	0.1
Bucket Width	mm	450
Max Digging Force	Kn	11.5
System Working Pressure	Mpa	16
Swing Speed	rpm	12-14
Traveling Speed	km/h	2.8
Gradeability	°	35
Ground Pressure	Kpa	38
Operating Range
Max. Digging Distance	mm	4370
Max. Digging Depth	mm	2450
Max. Digging Height	mm	3700
Max. Dumping Height	mm	2290
Min. Swing Radius	mm	2020
Overall Dimensions
Overall Length	mm	4080
Overall Width	mm	1300
Overall Height	mm	2280
Min. Ground Clearance	mm	235
Track Ground Length	mm	1270
Track Width	mm	250

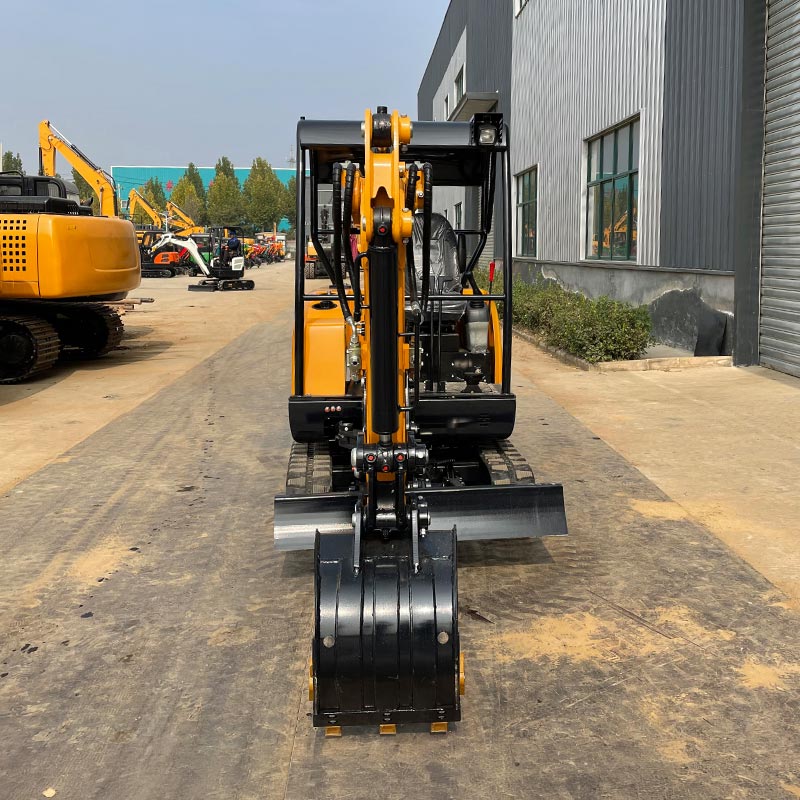

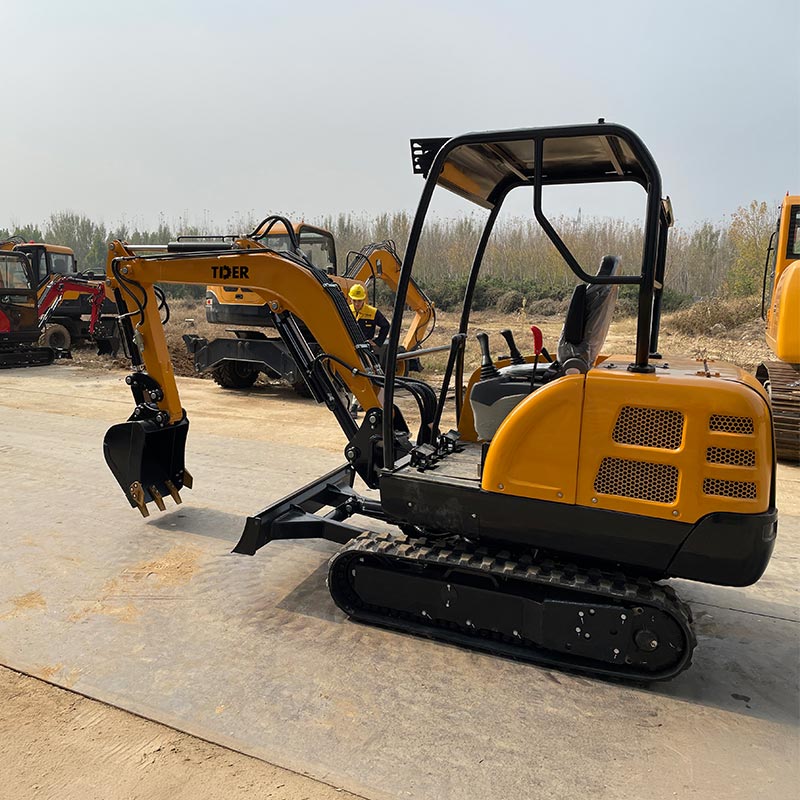

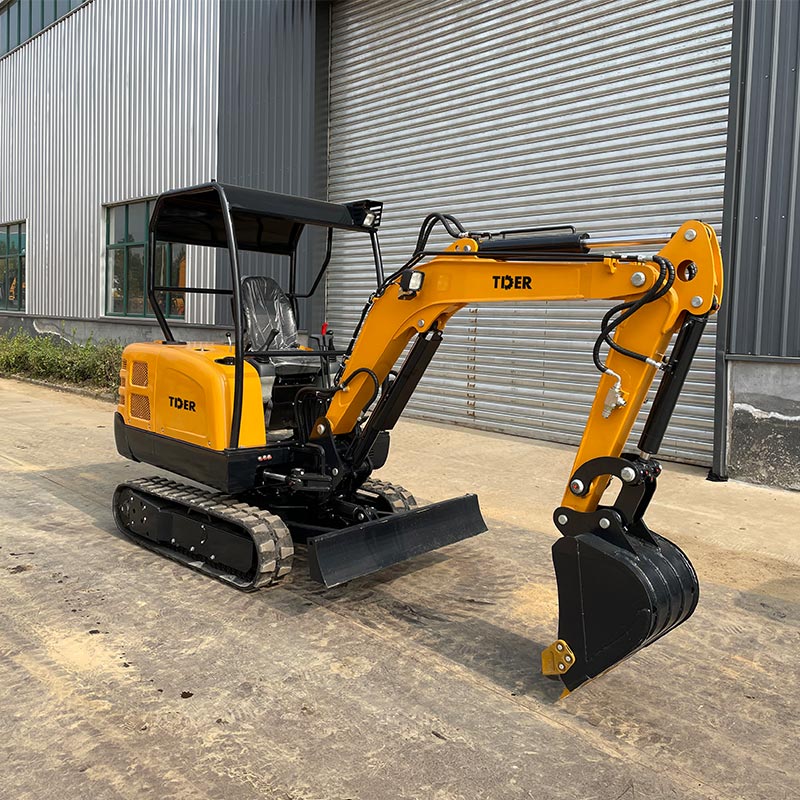

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

Gallery

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
