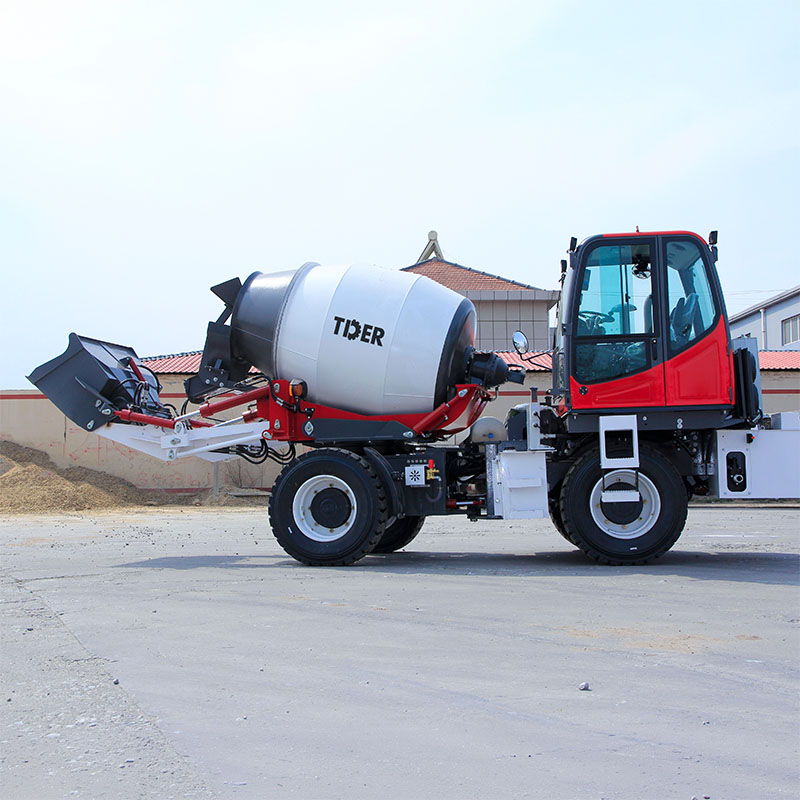

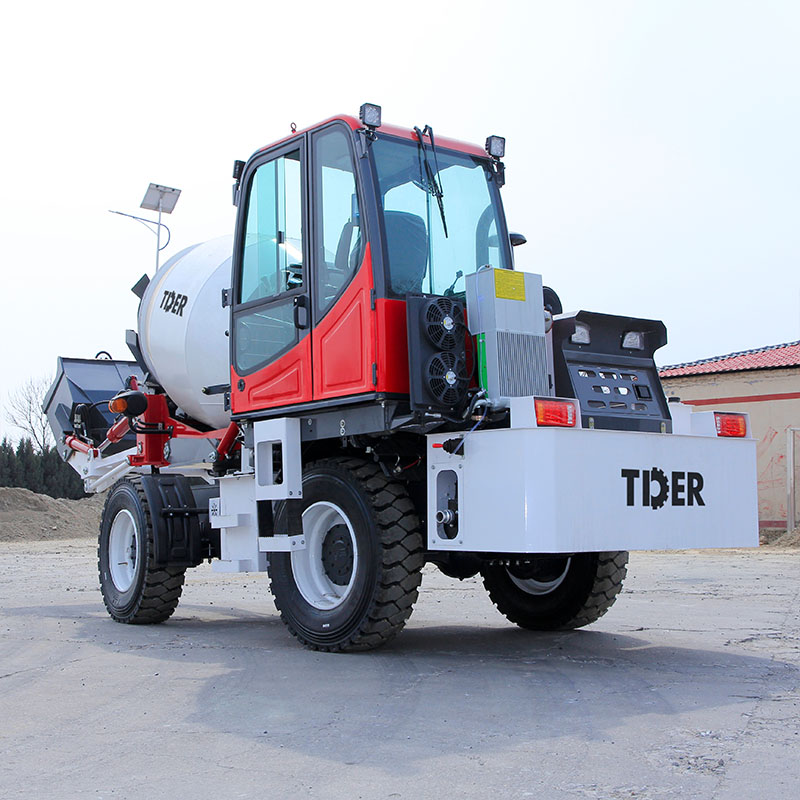

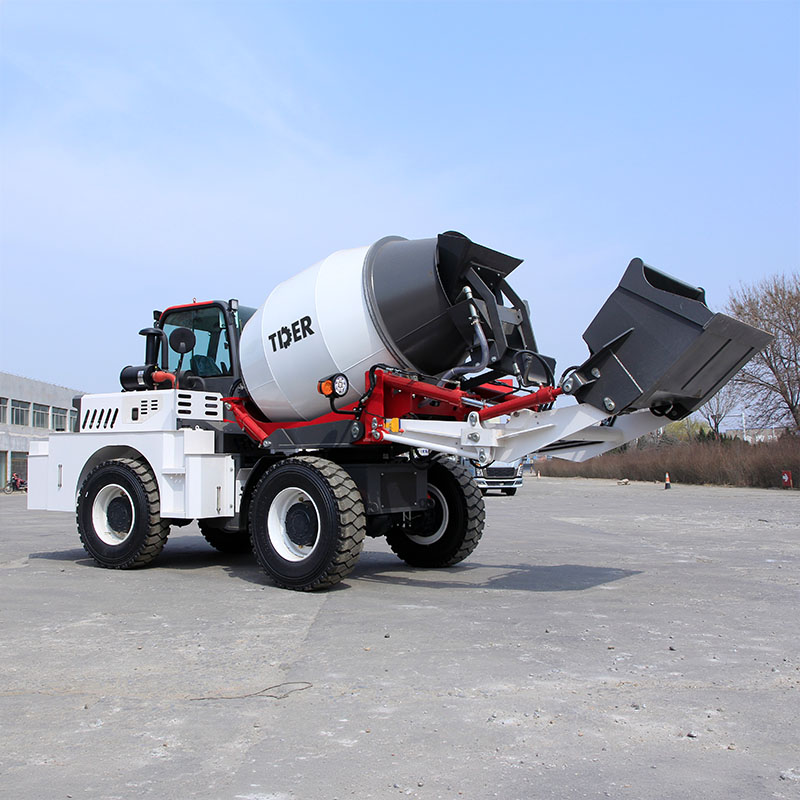

2m³ Concrete Mixer Truck
TCM20
Features
Enhanced Visibility & Control for Precise Jobsite Operation
TCM20 combines a synchronized rotating cab and drum structure with front and rear camera monitoring to provide operators with improved visibility during concrete placement, driving, and reversing. The rotating design allows operators to maintain a direct view toward the working direction, while the camera system reduces blind spots in confined or complex jobsite environments. Together, these features help improve placement accuracy, reduce repositioning time, and support safer daily operation.
Global Engine Options Reduce Long-Term Ownership Risk
TCM20 is equipped with a 77.3kW turbocharged engine and supports Cummins and Euro V Yuchai options. These engine choices allow customers to select power solutions based on local fuel availability, emission requirements, and maintenance resources.
Hydraulic Power System Designed for Continuous Mixing Cycles
The hydraulic drive system is matched for long-duration mixing operations, providing stable drum rotation and smooth control during repeated loading, mixing, and discharge cycles. The hydraulic components are selected to maintain consistent performance during daily production work.
Integrated Water Management Simplifies Jobsite Operation
The timed water supply system, diesel self-priming pump, and hydraulic external water suction system simplify concrete preparation and machine cleaning. This reduces manual handling requirements and allows operators to complete more tasks independently on site.
Concrete Discharge Assistance System for Cleaner & Faster Operation
The unloading vibrator and cement chute system improve concrete discharge efficiency, helping reduce material residue and making unloading operations smoother, especially when handling higher-viscosity concrete mixtures.
Specifications
| Overall Dimensions | mm | 5900 × 2400 × 3900 |
| Wheelbase | mm | 2300 |
| Operating Weight | kg | 7500 |
| Engine | — | Yudong 4102 Turbocharged |
| Engine Power | kW | 77.3 |
| Transmission | — | 280 Integrated Transmission |
| Drive Axle | — | 2.0T Wheel Side Reduction Axle |
| Tire Size | — | 16/70 R22.5 |
| Bucket Capacity | m³ | 0.5 |
| Mixing Capacity | m³ | ≥1.8 |
| Reduction Ratio | — | 0.061111111 |
| Drum Rotation Speed | rpm | ≥15 |
| Reducer | — | Domestic Brand |
| Travel Speed | km/h | 35 |
| Drive Type | — | 4×4 Four-Wheel Drive |
| Water Tank Capacity | L | 620 |
| Fuel Tank Capacity | L | 120 |
| Hydraulic Oil Tank Capacity | L | 100 + 26 |
