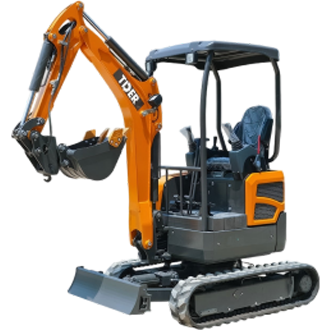

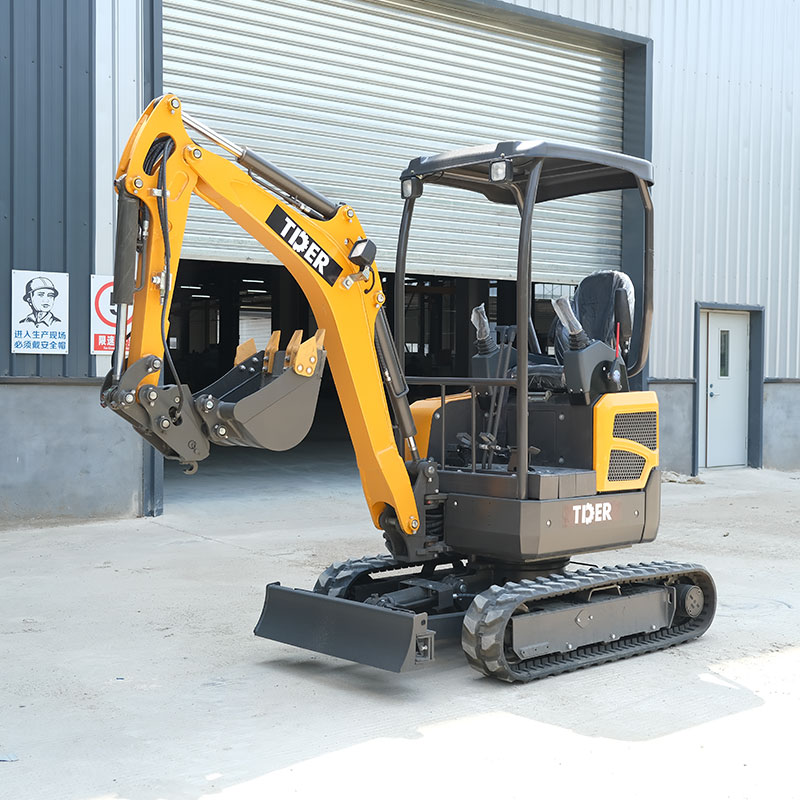

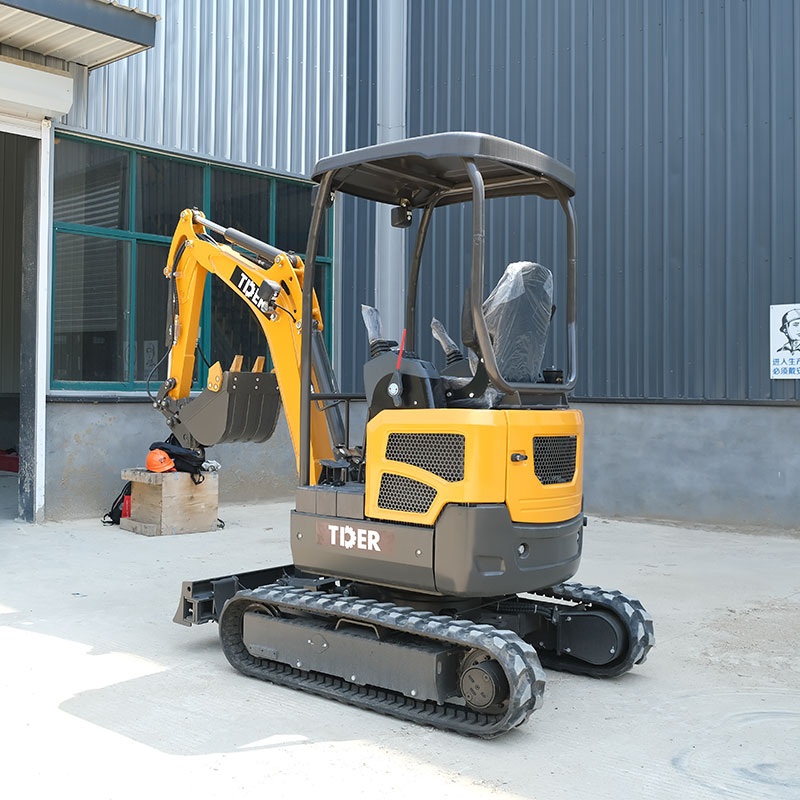

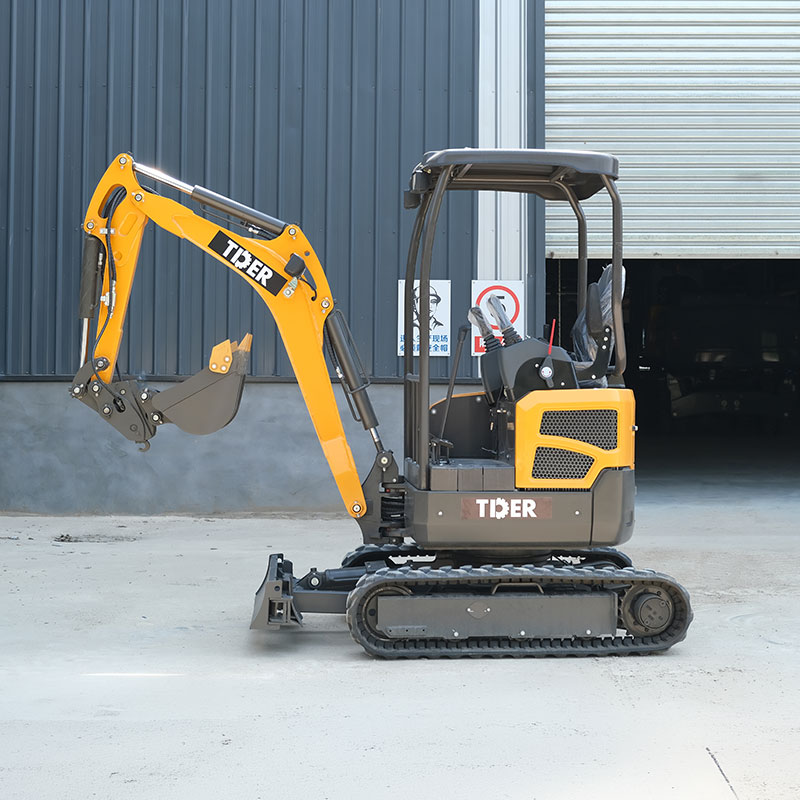

2.5 Ton Mini Excavator
TCE25
Features
Zero Tail Compact Excavator for Confined Construction Sites
The TCE25 features a zero tail swing design, allowing safe and flexible operation in narrow working environments. It is ideal for small construction projects where space is limited, enabling operators to work close to walls, structures, and obstacles without rear-end interference.
Kubota Engine with EPA & Euro 5 Compliance for Stable Power Output
Powered by a Kubota D1105 engine, the TCE25 delivers 14.2 kW of stable and efficient power with EPA and Euro 5 compliance. Optional Perkins engine provides an alternative power solution, ensuring flexibility for different regional markets and project requirements.
High-Efficiency Piston Pump for Precise Hydraulic Control
It features a piston pump hydraulic system for improved precision and efficiency. Standard pilot control ensures smooth, comfortable operation. Optional Italian Casappa piston pump further enhances responsiveness and durability.
Telescopic Undercarriage for Stability & Flexibility
The TCE25 is equipped with a retractable walking frame for more stable operation when the chassis is deployed, and good passability in narrow spaces when the chassis is contracted.
Rubber Tracks with Steel Track Option for Jobsite Flexibility
Standard rubber tracks reduce surface damage and improve smooth operation, while optional steel tracks enhance durability for rocky, abrasive, or heavy-duty jobsite environments.
Specifications
| Operating Weight | Kg | 2500 |
| Engine Model | Kubota D1105 | |
| Rated Power | Kw | 14.2 |
| Bucket Capacity | m³ | 0.07 |
| Bucket Width | mm | 435 |
| Max Digging Force | Kn | 18 |
| System Working Pressure | Mpa | 21.5 |
| Swing Speed | rpm | 0-9 |
| Traveling Speed | km/h | 2.8 |
| Gradeability | ° | 35 |
| Ground Pressure | Kpa | 30 |
| Operating Range | ||
| Max. Digging Distance | mm | 4040 |
| Max. Digging Depth | mm | 2400 |
| Max. Digging Height | mm | 3700 |
| Max. Dumping Height | mm | 2440 |
| Min. Swing Radius | mm | 1610 |
| Overall Dimensions | ||
| Overall Length | mm | 3555 |
| Overall Width | mm | 990/1300 |
| Overall Height | mm | 2290 |
| Min. Ground Clearance | mm | 150 |
| Track Ground Length | mm | 990 |
| Track Width | mm | 230 |
