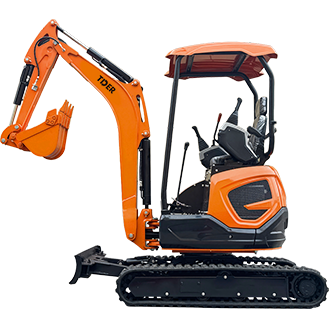

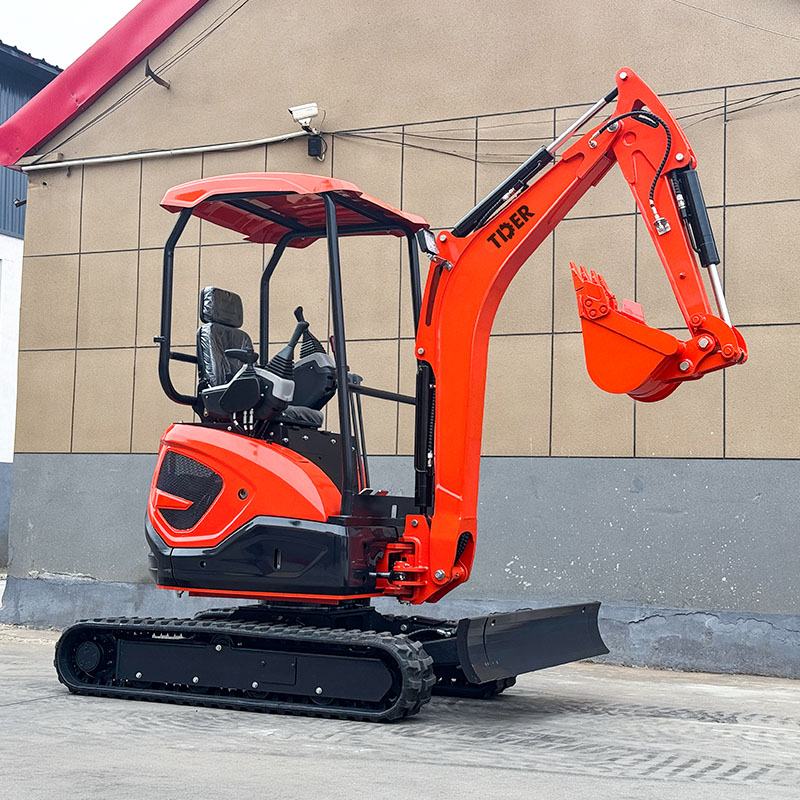

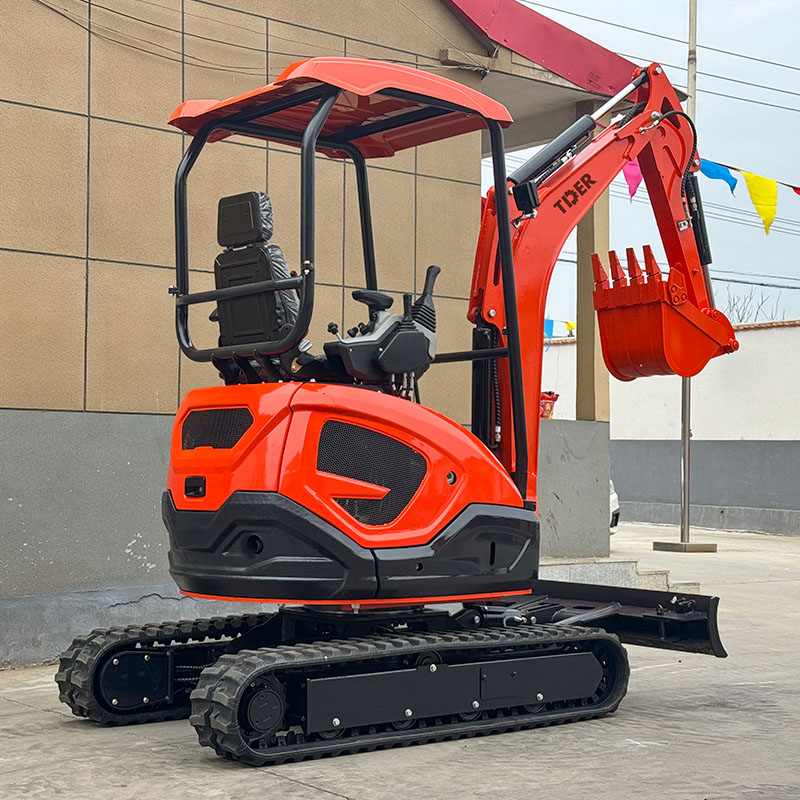

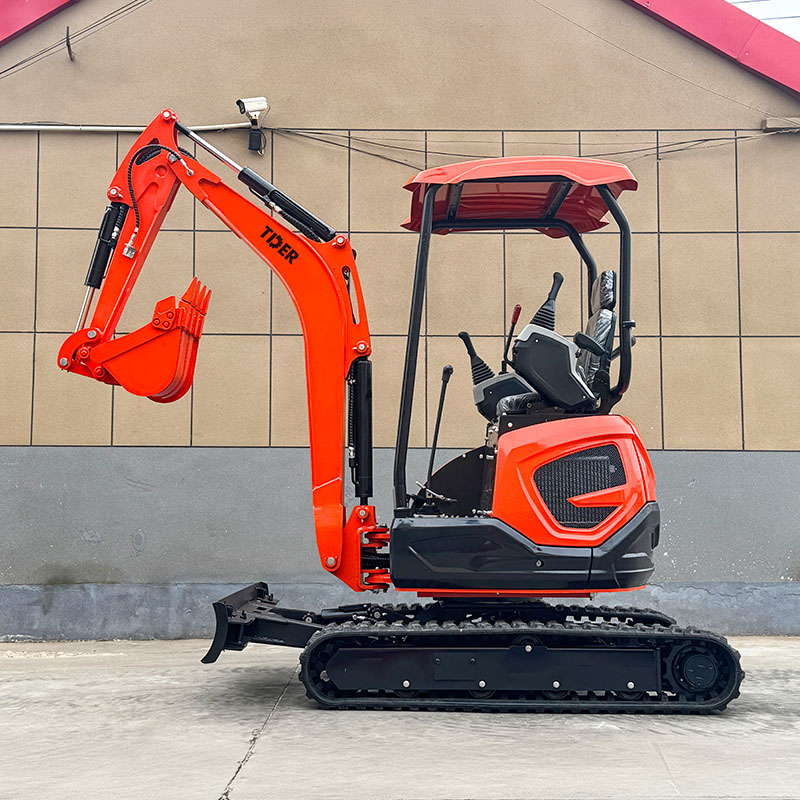

2.5 Ton Mini Excavator
TCE25
Features
Easy-Access Maintenance With A Large Opening Area
The rear cover features an upturned design, while the seat can be flipped forward to create a large maintenance opening. This layout gives operators easier access to service points and makes routine inspection and maintenance more convenient.
Brake Valve Helps Maintain Control On Slopes
A brake valve is fitted as standard on the travel motor to help prevent the machine from slipping when travelling or working on slopes. This provides additional control and confidence when operating on inclined terrain.
Pull-Up Arm Design Protects The Boom Cylinder
The boom cylinder is positioned on the upper side of the arm, reducing the risk of the bucket arm contacting and damaging the cylinder during operation. This practical structural layout helps protect a key hydraulic component in demanding working conditions.
Zero-Tail Design For Flexible Positioning
The TCE25 adopts a zero-tail exterior design with a rounded, compact body shape. The reduced rear overhang makes it easier to work and reposition in areas where available operating space is limited.
Fully Hydraulic Control For Smooth Operation
The entire machine uses hydraulic control, including the dozer blade operated beside the right-hand joystick. This integrated control layout provides a consistent operating feel and allows the operator to manage key machine functions with less unnecessary movement.
Upturned Control Box Makes Getting On And Off Easier
The control box can be raised to increase the available space around the operator entry area. This design makes getting on and off the machine more convenient, particularly during frequent movement between the cab and the jobsite.
Specifications
| Main Technical Specifications | Bucket Capacity | m³ | 0.06 |
| Bucket Width | mm | 420 | |
| Operating Weight | kg | 2500 | |
| Engine | — | Kubota | |
| Engine Power | kW | 14.2 / 21 | |
| Undercarriage | Track Width | mm | 250 |
| Track Length | mm | 1800 | |
| Ground Clearance | mm | 420 | |
| Wheelbase | mm | 1050 | |
| Chassis Width | mm | 1300 | |
| Chassis Length | mm | 2160 | |
| Working Range | Digging Height | mm | 3388 |
| Digging Depth | mm | 2600 | |
| Unloading Height | mm | 2673 | |
| Digging Radius | mm | 4163 | |
| Turning Radius | mm | 756 | |
| Shovel Lifting Height | mm | 290 | |
| Transportation Dimensions | Transport Length | mm | 3980 |
| Vehicle Height | mm | 2290 | |
| Overall Machine Dimensions | mm | 2300 × 1300 × 2550 |
*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.
