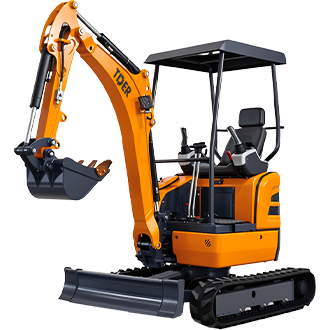

Name: 2 Ton Mini Excavator With Telescopic Chassis
Availability: InStock

Features
Specifications
Product Showcase
Gallery
FAQs
Related Products

Features

Zero-Tail Design For Confined Working Areas

The TCE20 adopts a zero-tail design that reduces the space required for rear swing, making it easier to operate close to walls, buildings and other obstacles. Combined with a deflectable boom, the machine can position the working equipment more flexibly in confined jobsites.

Telescopic Chassis Adapts To Changing Ground Conditions

The telescopic chassis uses a profile-welded split structure with strong load-bearing capacity and flexible width adjustment. Operators can extend or retract the chassis according to working conditions, providing a practical balance between stability and maneuverability.

Automatic Travel Speed Regulation Improves Mobility

The travel motor features automatic speed regulation to adjust travelling performance according to operating conditions. This helps the TCE20 move efficiently between working areas while maintaining smooth and controlled travel.

Full-Hydraulic Pilot Control For Smooth Machine Response

The full-hydraulic pilot system provides responsive and precise control through the joysticks. Together with the piston pump and load-sensing valve, it helps coordinate machine movements and gives the operator better control during digging, slewing and attachment positioning.

Upward-Mounted Boom Cylinder Reduces Impact Risk

The boom cylinder is mounted above the working structure to reduce the risk of contact with surrounding objects during excavation. This practical design helps protect the cylinder in confined construction environments where obstacles are close to the machine.

Dual-Certified Yanmar Power For International Markets

The TCE20 is equipped with a Yanmar 374F three-cylinder diesel engine with both Euro V and EPA certification. The engine provides a reliable power solution while giving customers greater flexibility for markets with different emission requirements.

Specifications

Main Technical Specifications	Operating Weight	kg	2000
	Bucket Capacity	m³	0.04
	Travel Speed (Low / High)	km/h	2.2–4.3
	Gradeability	%	58
Working Range	Maximum Digging Height	mm	3570
	Maximum Dumping Height	mm	2480
	Maximum Digging Depth	mm	2270
	Maximum Digging Radius	mm	3840
	Side Swing Offset (Left / Right)	mm	345 / 510
Overall Dimensions	Overall Length	mm	3575
	Overall Width	mm	990 / 1300
	Overall Height	mm	2405
	Dozer Blade Width / Height	mm	1300 / 275
Engine	Engine Brand	—	YANMAR
	Engine Model	—	3TNV74F
	Maximum Power	kW	11.2
	Maximum Speed	rpm	2400
	Number of Cylinders	—	3
	Cooling Method	—	Water-Cooled
	Engine Oil Change Quantity	L	3.7
	Fuel Type	—	Diesel
	Fuel Grade	—	0#
	Displacement	L	0.993
Hydraulic System	Main Pump Type / Model	—	Piston Pump / TFA10V028L
	Main Pump Brand	—	Taifeng
	Rated Working Pressure	bar	250
	Rated Working Flow	L/min	64.4
	Multi-Way Valve	—	9-Section Load-Sensing Valve
	Multi-Way Valve Brand	—	Taifeng
	Rated Set Pressure	MPa	22
	Travel Hydraulic Motor Model	—	LTM02PAK
	Travel Motor Brand	—	Lichuan
	Swing Hydraulic Motor Model	—	Eaton 2.5K

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.
