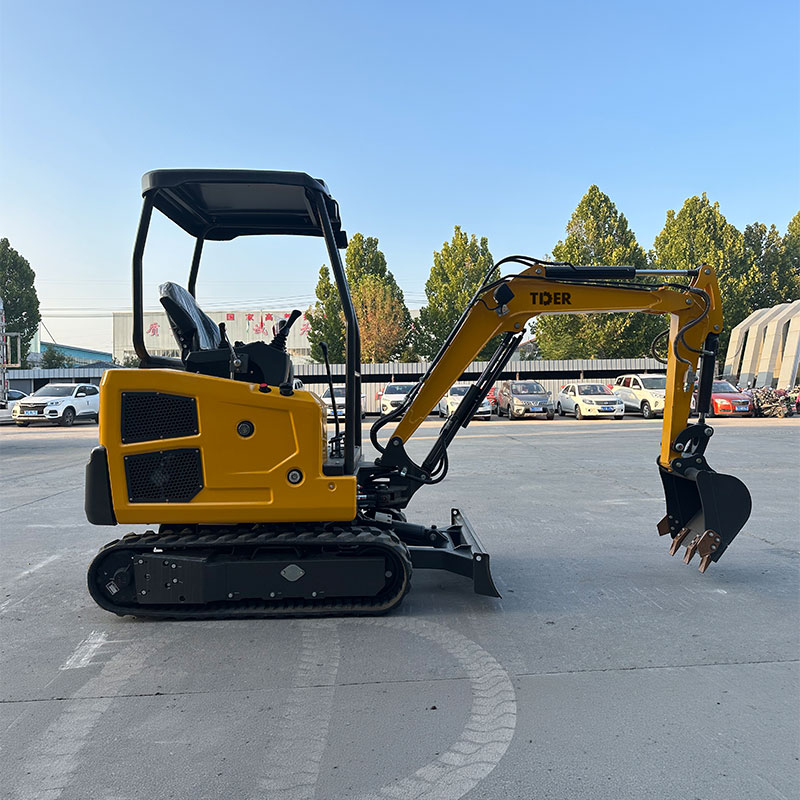

2 Ton Mini Excavator
TCE20
Features
Compact Excavator with Stronger Digging Capacity for Job Sites
TCE20 delivers a 2-ton operating weight with a 0.06 m³ bucket and reinforced hydraulic system, providing stronger digging force and higher material handling efficiency. It is suitable for small-to-medium construction projects that require both power and compact mobility.
Flexible Engine Options: Laidong, Kubota, or Perkins
It offers multiple engine choices—Laidong, Kubota, or Perkins—allowing operators to select power units based on performance preference, local service availability, and regional emission compliance, ensuring reliable operation across diverse jobsite conditions.
Danfoss Slewing Motor for Reliable Heavy-Duty Rotation
The TCE20 features a Danfoss slewing motor, renowned worldwide for durability and smooth operation. It ensures stable rotation under continuous work cycles, reducing downtime and maintenance in demanding construction and excavation tasks.
Extendable Tracks for Stability in Tight Spaces
Equipped with a variable track undercarriage, the TCE20 improves stability during heavy lifting while allowing flexible width adjustment for narrow site access. This enhances safety and efficiency when working in confined urban or construction environments.
Full Hydraulic Pilot Control for Precise & Easy Operation
TCE20 features full hydraulic pilot control as standard, providing smoother handling, reduced operator effort, and higher digging accuracy during continuous construction work.
Canopy Standard with Optional Enclosed Cab for Better Comfort
A standard sunshade canopy protects the operator during outdoor work, while an optional enclosed cab helps block dust and debris, creating a more comfortable and cleaner working environment in harsh jobsite conditions.
Specifications
| Operating Weight | Kg | 2000 |
| Engine Model | Laidong 3L15P25 | |
| Rated Power | Kw | 18.4 |
| Bucket Capacity | m³ | 0.06 |
| Bucket Width | mm | 435 |
| Max Digging Force | Kn | 11.5 |
| System Working Pressure | Mpa | 18 |
| Swing Speed | rpm | 10-12 |
| Traveling Speed | km/h | 2.8 |
| Gradeability | ° | 35 |
| Ground Pressure | Kpa | 38 |
| Operating Range | ||
| Max. Digging Distance | mm | 3860 |
| Max. Digging Depth | mm | 2050 |
| Max. Digging Height | mm | 3370 |
| Max. Dumping Height | mm | 2390 |
| Min. Swing Radius | mm | 1720 |
| Overall Dimensions | ||
| Overall Length | mm | 3800 |
| Overall Width | mm | 1050 |
| Overall Height | mm | 2280 |
| Min. Ground Clearance | mm | 210 |
| Track Ground Length | mm | 1050 |
| Track Width | mm | 230 |
