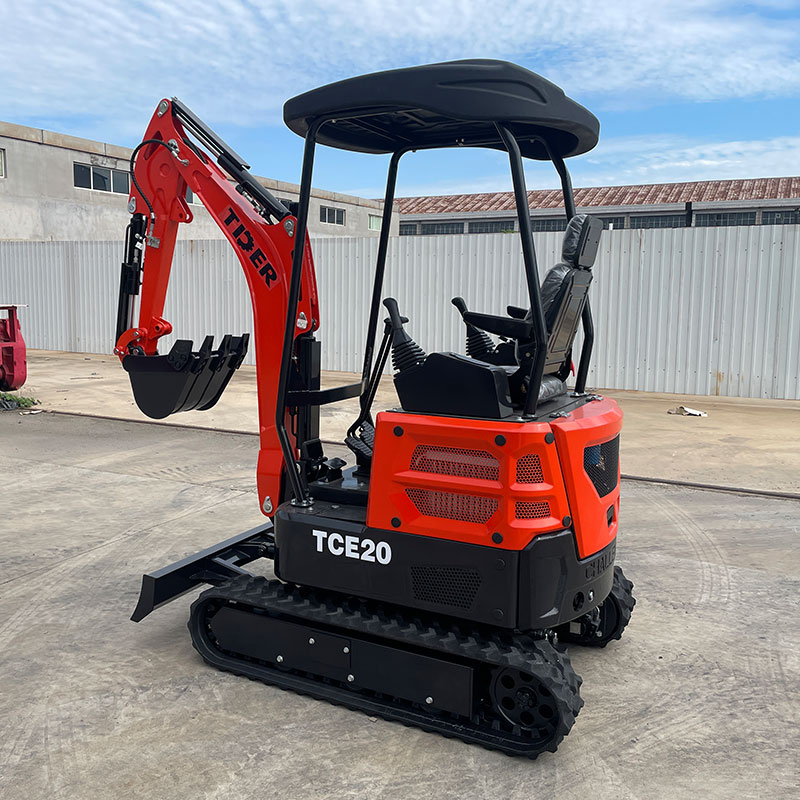

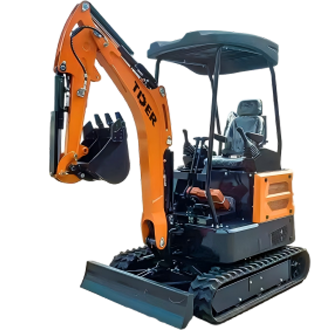

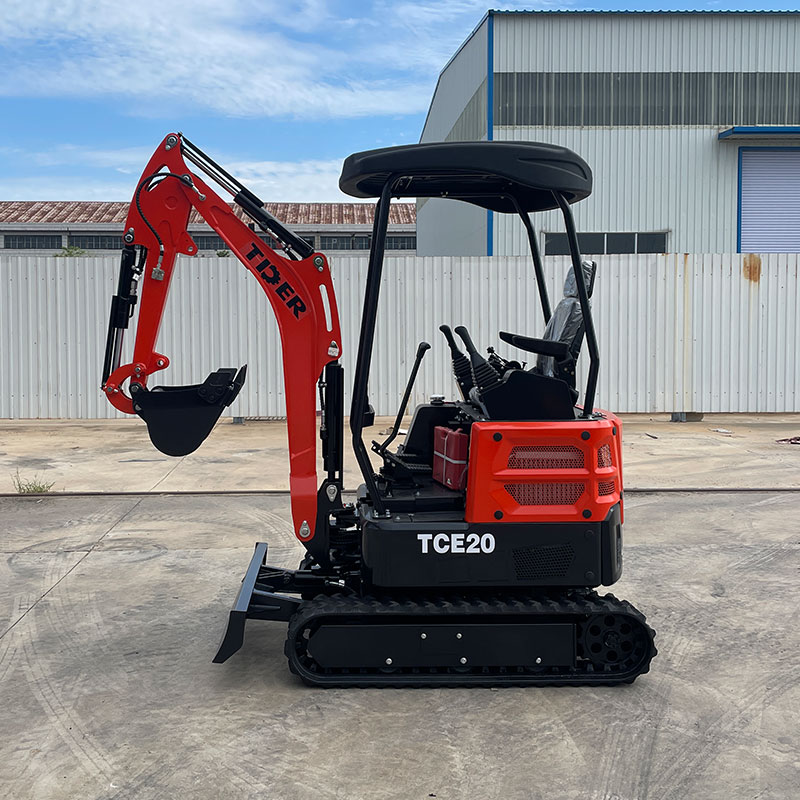

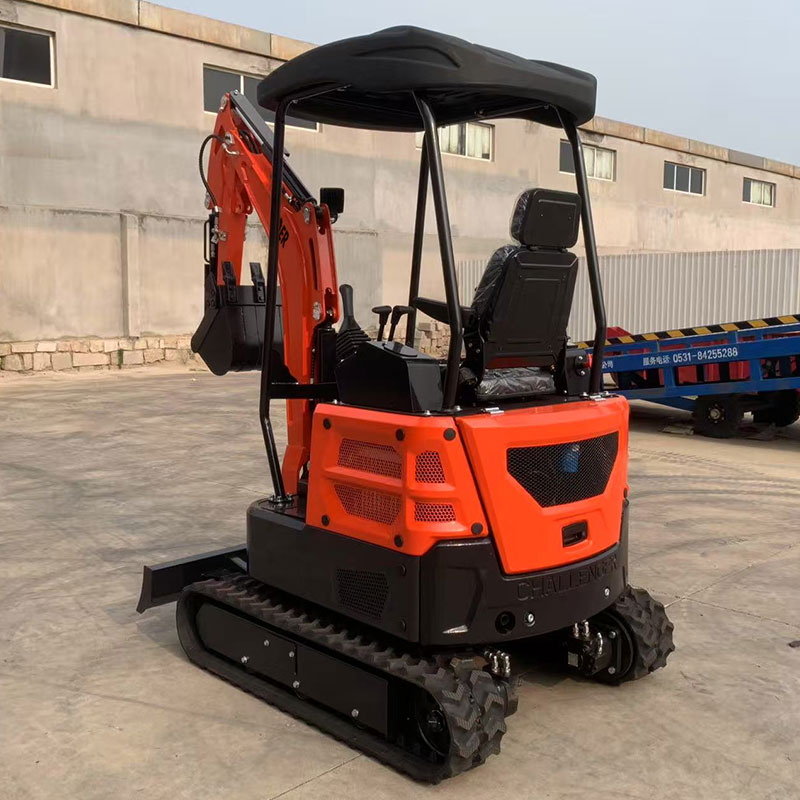

Name: 2 Ton Mini Excavator with Japanese Component
Availability: InStock

Features
Specifications
Product Showcase
Gallery
FAQs
Related Products

Features

Side Swing & Up-Swing Boom for Extended Reach

Equipped with side swing and reinforced up-swing boom, the machine achieves greater lateral and vertical reach, making trenching and digging along walls, foundations, and narrow spaces faster and more precise.

Full Hydraulic Control for Smooth & Precise Operation

It’s full hydraulic system delivers responsive digging, swinging, and travel, reducing operator effort while improving accuracy. It keeps performance stable during long work cycles, making complex excavation and trenching easier and more efficient.

Reinforced 230mm Tracks for Stability & Low Ground Pressure

Wide, durable tracks reduce ground disturbance and enhance stability on uneven terrain, protecting sensitive surfaces while allowing safe operation in confined or urban areas.

Shimadzu Gear Pump for Stable Hydraulic Performance

The TCE20A is equipped with a Japanese Shimadzu gear pump, ensuring consistent hydraulic flow and stable pressure output during digging, swinging, and traveling operations. This improves responsiveness and reduces power loss, allowing the machine to maintain smooth performance even under continuous heavy-duty working conditions.

Safety & Operator Comfort

Standard canopy and oil cooler provide operator protection and thermal management, allowing long hours of work with minimal fatigue and increased safety.

Specifications

Operating Weight	Kg	2000
Engine Model		Changchai390
Rated Power	Kw	20
Bucket Capacity	m³	0.045
Bucket Width	mm	400
Max Digging Force	Kn	15.2
System Working Pressure	Mpa	20
Swing Speed	rpm	10
Traveling Speed	km/h	2.8
Gradeability	°	35
Ground Pressure	Kpa	30
Operating Range
Max. Digging Distance	mm	2500
Max. Digging Depth	mm	2150
Max. Digging Height	mm	2950
Max. Dumping Height	mm	2230
Min. Turning Radius	mm	1190
Overall Dimensions
Overall Length	mm	2300
Overall Width	mm	1150
Overall Height	mm	2150
Min. Ground Clearance	mm	385
Track Ground Length	mm	1500
Track Width	mm	230

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

Gallery

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
