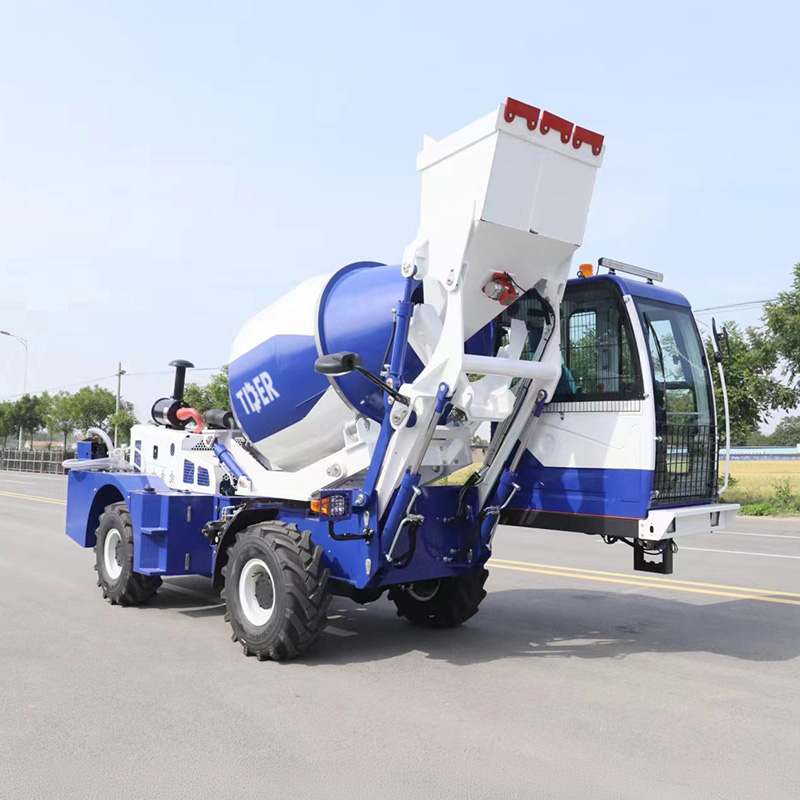

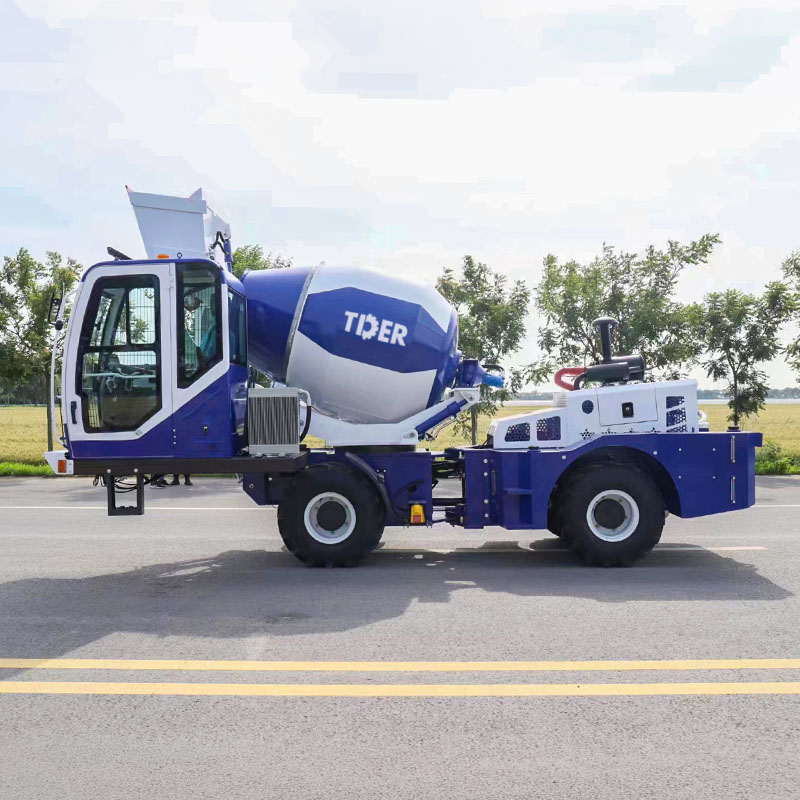

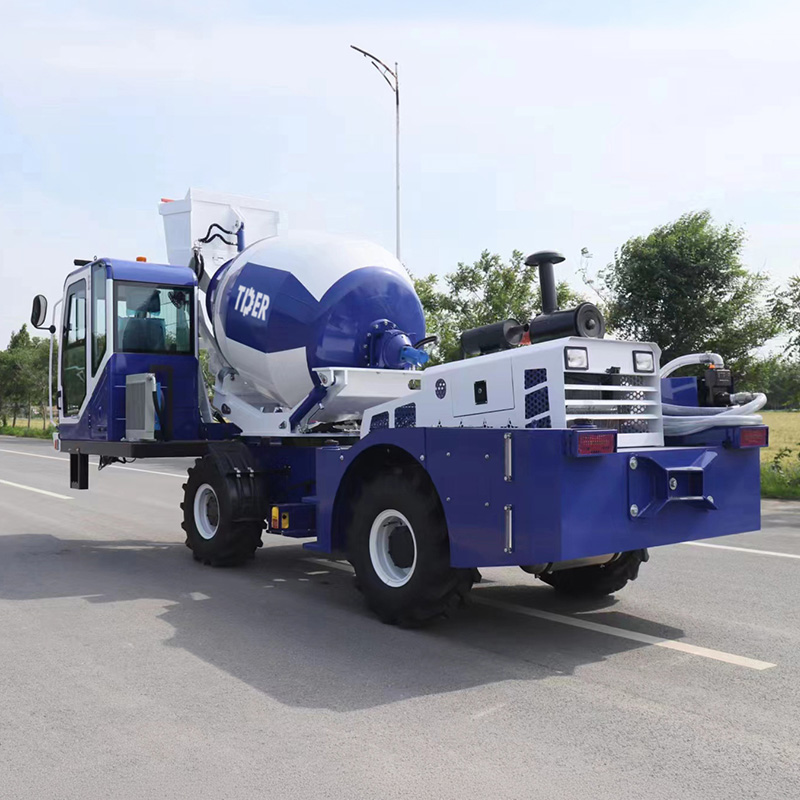

1.8m³ Concrete Mixer Truck
TCM18
Features
Heavy-Duty 4WD Articulated Chassis for Demanding Job Sites
TCM18 combines four-wheel drive, articulated chassis, and an 8-ton reinforced hydraulic axle system to deliver strong traction and stability on muddy, uneven, and challenging terrain. The heavy-duty structure is designed for larger-scale projects where reliable mobility and continuous operation are critical.
Rexroth Hydraulic Drive System for Stable Mixing Performance
Equipped with Rexroth hydraulic orbital motor and a matched hydraulic control system, TCM18 provides stable power transmission and smooth drum operation. The reliable hydraulic components help maintain consistent performance during long working cycles.
270° Rotating Drum for Flexible Concrete Placement
The fixed cab and 270° rotating drum design allow operators to discharge concrete across a wider working area without repeated machine repositioning. Combined with a 1.8m³ discharge capacity and 1600mm discharge height, TCM18 improves placement efficiency on complex sites.
Smart Water Management & Operation System
The self-measuring water supply system, hydraulic external water suction, electric washing system, and vibration function simplify daily operation while helping operators maintain consistent concrete mixing quality.
Operator Protection Package for Long Working Hours
TCM18 features a protective cab with driving camera, LED lighting, roof warning light, and ergonomic controls, improving visibility and safety during extended operation.
Specifications
| Tire Size | — | 20.5-16 Steel Wire Tires (Front Two & Rear Two) |
| Overall Dimensions | mm | 6500 × 2350 × 2900 |
| Wheelbase | mm | 2500 |
| Operating Weight | kg | 6000 |
| Drive Type | — | 4×4 Four-Wheel Drive |
| Maximum Travel Speed | km/h | 35 |
| Maximum Climbing Capacity | ° | 35 |
| Minimum Turning Radius | mm | 2355 |
| Minimum Ground Clearance | mm | 330 |
| Engine Model | — | Yunnei YN33GBZ 4100 Turbocharged |
| Rated Power | kW | 65 |
| Transmission Model | — | ZL265 Torque Converter |
| Gearbox | — | 4 Forward / 4 Reverse, Dual High & Low Speed |
| Fuel Tank Capacity | L | 100 |
| Hydraulic System Capacity | L | 100 |
| Engine Oil Capacity | L | 16 |
| Reducer | — | Borrego 230B Closed-Type |
| Hydraulic Pump | — | Ruizhichencheng R1-40/80 |
| Hydraulic Motor | — | Zhenjiang Dali 160 |
| Water Tank Capacity | L | 600 |
| Water Supply Method | — | Time Relay |
| Mixing Drum Geometric Capacity | m³ | 2.6 |
| Mixing Drum Rotation Speed | rpm | 17 |
| Concrete Output per Batch | m³ | 1.3–1.6 |
