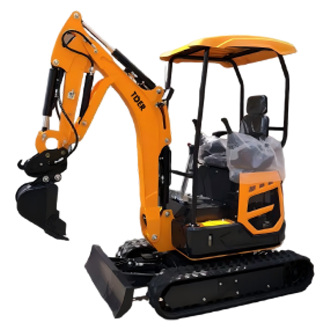

1.8 Ton Mini Excavator
TCE18U
Features
Zero Tail Swing for Tight Job Sites
It features a zero tail swing design, allowing safe operation in confined spaces without rear overhang interference. This makes it highly suitable for working close to walls, buildings, and obstacles in urban construction, road maintenance, and indoor renovation projects where space safety is critical.
Kubota & Yanmar Engine Options
Powered by either a Kubota D722 or Yanmar Euro 5 engine, the TCE18A offers stable 10.2 kW output with compliance for different market requirements. Operators can choose based on availability and regional service support, ensuring reliable operation across multiple jobsite environments.
Expandable Tracks for Stability & Access
The retractable undercarriage system allows the machine width to adjust according to working conditions. Narrow configuration improves access in tight passages, while extended width increases stability during digging and lifting operations, enhancing safety and efficiency on uneven ground.
Load-Sensing Hydraulics for Smooth Control
Equipped with a Parker triple load-sensitive hydraulic pump, the TCE18U delivers precise flow distribution and responsive control. This improves coordination between digging, swinging, and traveling functions, especially during continuous multi-task operation in complex job sites.
Side Swing Boom for Efficient Trenching
The side swing boom enables lateral movement without repositioning the machine, significantly improving productivity in trenching along walls, foundations, and restricted boundaries. It reduces machine repositioning time and increases operational efficiency in narrow work environments.
Hidden Travel Motor for Durability
The single-speed hidden travel motor structure protects key components from impact and debris, extending durability in harsh jobsite conditions. This design improves reliability during long working cycles in construction and municipal applications.
Specifications
| Operating Weight | Kg | 1800 |
| Engine Model | Kubota D722 | |
| Rated Power | Kw | 10.2kw |
| Bucket Capacity | m³ | 0.04 |
| Bucket Width | mm | 400 |
| Traveling Speed | km/h | 0-3 |
| Gradeability | ° | 45° |
| Operating Range | ||
| Vertical excavation depth | mm | 1800 |
| Max. Digging Depth | mm | 1900 |
| Max. Digging Height | mm | 2900 |
| Max. Dumping Height | mm | 2000 |
| Min. Turning Radius | mm | 2500 |
| Overall Dimensions | ||
| Machine size | mm | 2250*1100*2200 |
| Overall Height | mm | 2150 |
| Min. Ground Clearance | mm | 380 |
| Transport Length | mm | 2550 |
| Track Width | mm | 230 |
| Track Length | mm | 1500 |
| Classis Width | mm | 1100 |

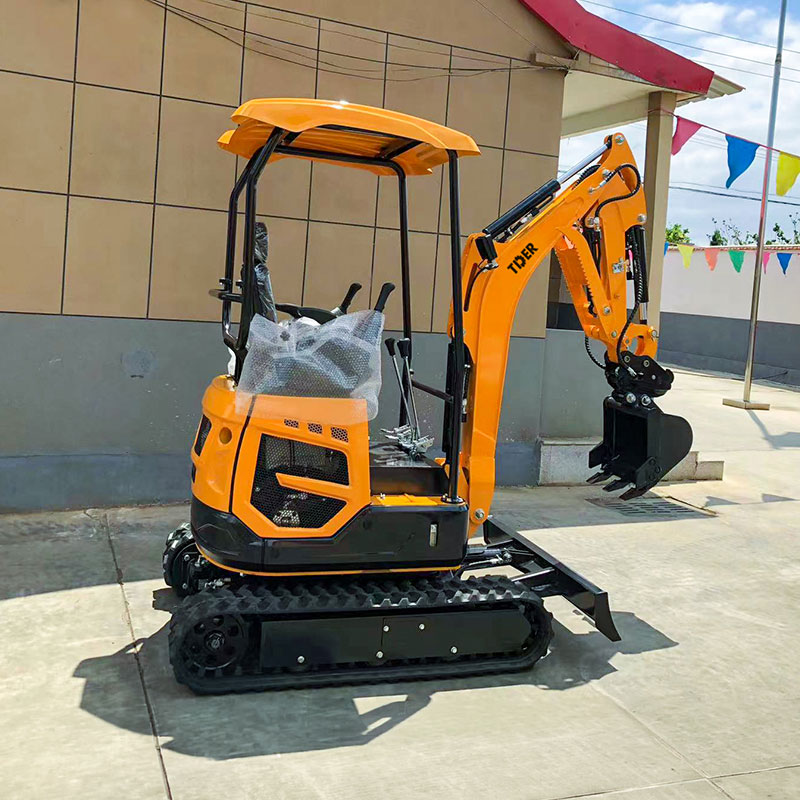

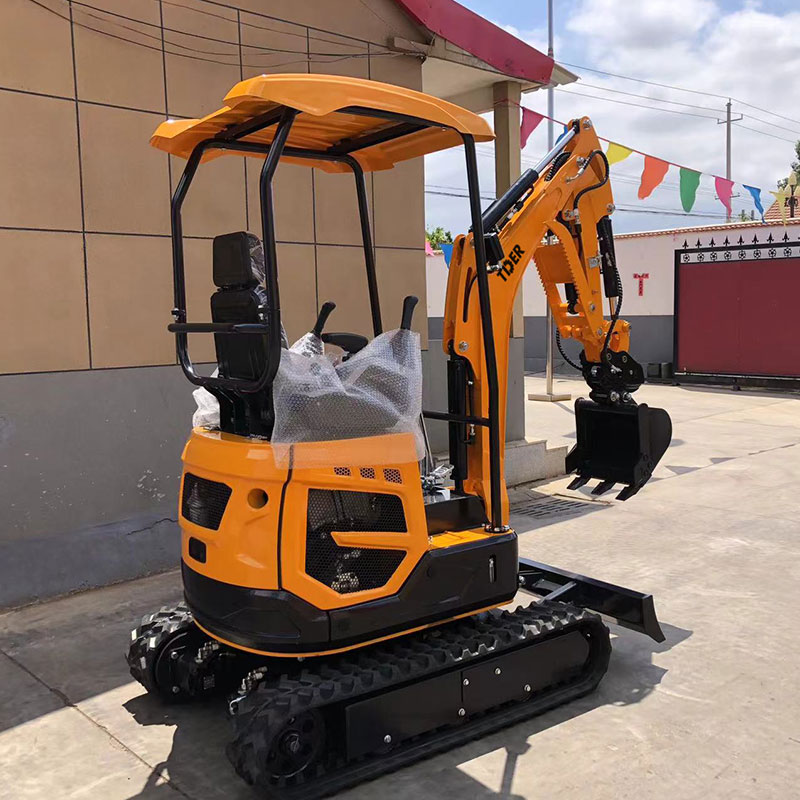

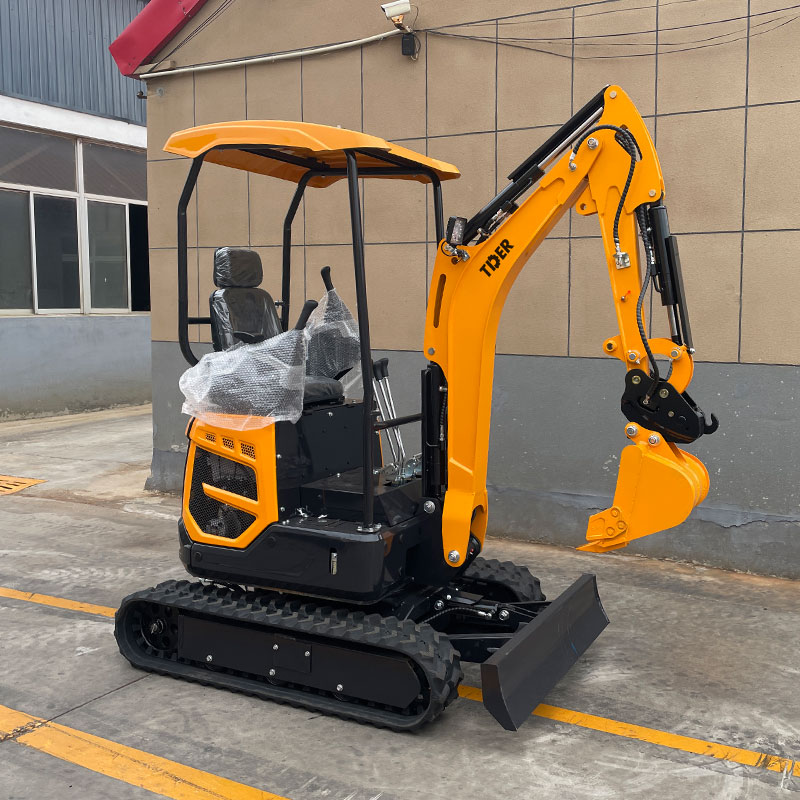

Product Showcase
