Name: 18 Ton Wheeled Excavator for Road Construction
Availability: InStock

Features
Specifications
Product Showcase
Gallery
FAQs
Related Products

Features

Cummins Engine with Global Support for Powerful and Reliable Performance

Powered by a Cummins 6BTAAS.9-C178 six-cylinder turbocharged engine with 133kW output, the TWE180 delivers strong power for heavy-duty excavation and continuous operation. The inline six-cylinder design, top-mounted turbocharger, and efficient combustion system provide better fuel utilization, cleaner emissions, and lower operating noise. Supported by Cummins’ global service network, maintenance is easier and downtime is reduced.

Kawasaki Hydraulic System with High Reliability and Precise Power Delivery

Equipped with a Kawasaki PNM piston hydraulic pump and Kawasaki swing motor, the TWE180 provides stable hydraulic performance and long service life. The dual-pump through-shaft design delivers strong suction capacity and reliable power output, while the reinforced corrosion-resistant housing improves durability in demanding working environments.

Hydraulic Travel System for Effortless Control

The TWE180 features a fully hydraulic travel system with automatic shifting, allowing operators to control movement smoothly without complex gear operations. The intelligent power transmission system automatically adapts to different working conditions, improving travel efficiency and reducing operator fatigue. Combined with full-time 4WD capability, the machine delivers stable mobility and strong traction for construction sites, uneven roads, and demanding outdoor environments.

Reinforced Working Equipment for Long-Term Heavy-Duty Excavation

Designed for demanding construction conditions, the TWE180 features thickened boom plates and reinforced structural components to improve overall strength. The boom and arm connection areas use forged structures instead of stress-concentrated welding sections, effectively improving fatigue resistance and extending service life during frequent heavy excavation.

Premium Cab Design for Comfortable All-Day Operation

The enclosed cab features an optimized air-conditioning layout with stronger airflow and improved cooling performance, creating a more comfortable working environment in hot climates. Combined with a luxury suspension seat, the cab effectively reduces vibration impact and operator fatigue during long working hours.

Specifications

Operating Weight	kg	18000
Engine Model	—	Cummins B5.9C54-150C
Rated Power	kW / rpm	111 / 2200
Bucket Capacity	m³	0.8
Maximum Digging Force	kN	100
Swing Speed	rpm	0–12
Travel Speed	km/h	0–35
Gradeability	°	25
Maximum Digging Radius	mm	8363
Maximum Digging Depth	mm	5350
Maximum Digging Height	mm	8800
Maximum Dumping Height	mm	6310
Minimum Swing Radius	mm	2723
Overall Length	mm	8050
Overall Width	mm	2595
Overall Height	mm	3255
Undercarriage Width	mm	2595
Boom Length	mm	4800
Arm Length	mm	2500
Tire Size	PR	10.00-20

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

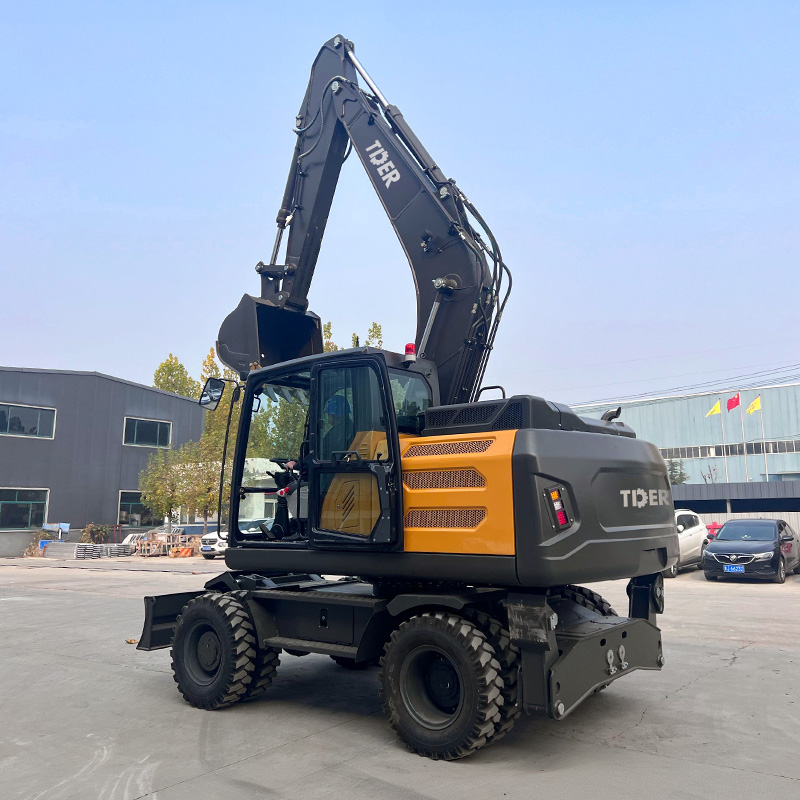

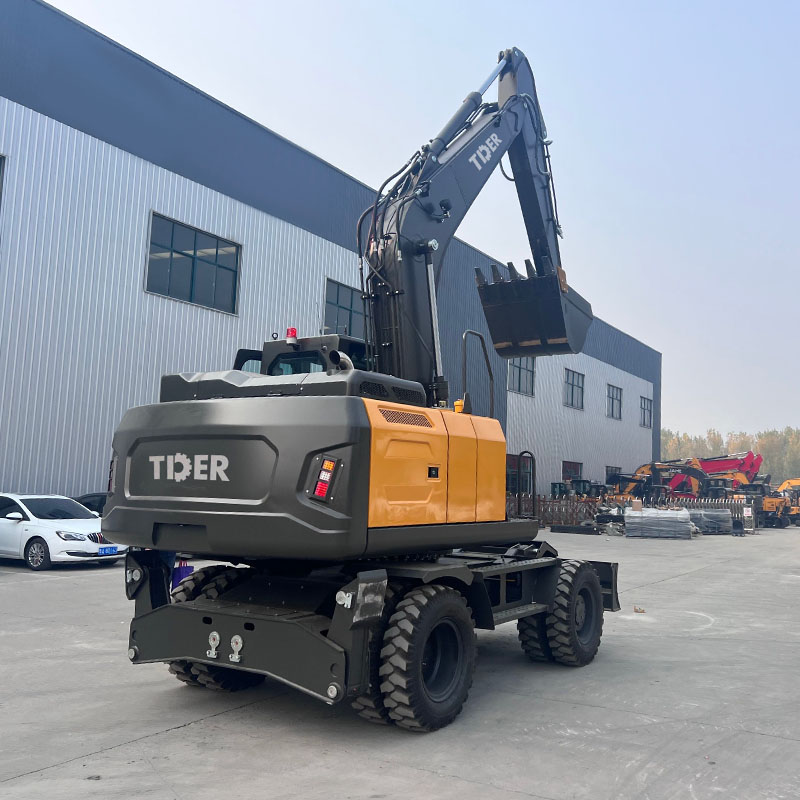

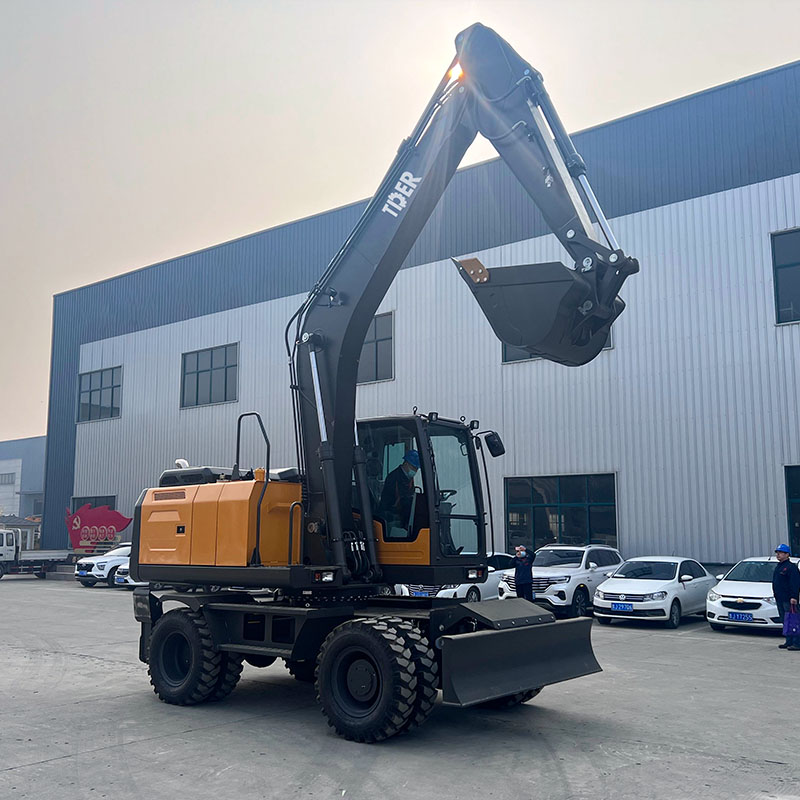

Gallery

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
