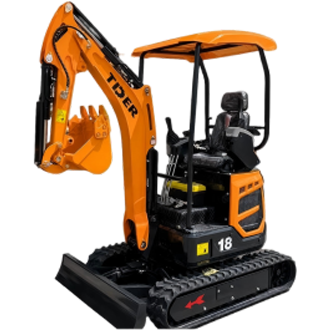

1.8 Ton Mini Excavator
TCE18
Features
Optional Kubota & Yanmar Engines for Global Use
Choose Kubota EPA/Euro 5 or Yanmar Euro 5 engines for reliable, low-emission power with easy global maintenance support, ensuring flexible operation across regions.
Quick-Access Engine Cover for Faster Maintenance and Reduced Downtime
The rear engine cover features a tool-free quick-opening design with ventilation openings, allowing faster inspection and improved heat dissipation. This design reduces daily maintenance time and helps maintain stable engine performance during continuous working cycles in high-temperature environments.
Hydraulic-Control Dozer Blade for Precise Grading
The hydraulic dozer blade allows smoother and more accurate leveling and backfilling, especially in tight spaces. It improves control compared to mechanical blades and reduces rework during finishing work.
Single-Speed Hidden Travel Motor with Optional Hi-Low Control
The TCE18 features a hidden travel motor that protects key components from debris and damage, extending durability. Optional high-low speed models provide versatile maneuvering, letting operators switch between precise low-speed work and faster travel across the jobsite.
Optimized Up-Swing Boom for Extended Reach & Stronger Digging
The optimized up-swing boom design extends the working range while keeping the machine compact. It allows the TCE18 to dig further and work closer to obstacles without sacrificing stability or digging power, improving efficiency in confined job sites such as trenching, landscaping, and urban construction.
Specifications
| Operating Weight | Kg | 1800 |
| Engine Model | Laidong 385 | |
| Rated Power | Kw | 29 |
| Bucket Capacity | m³ | 0.04 |
| Bucket Width | mm | 400 |
| Traveling Speed | km/h | 0-3 |
| Gradeability | ° | 45° |
| Operating Range | ||
| Vertical excavation depth | mm | 1800 |
| Max. Digging Depth | mm | 1900 |
| Max. Digging Height | mm | 2900 |
| Max. Dumping Height | mm | 2000 |
| Min. Turning Radius | mm | 2500 |
| Overall Dimensions | ||
| Machine size | mm | 2250*1100*2200 |
| Overall Height | mm | 2150 |
| Min. Ground Clearance | mm | 380 |
| Transport Length | mm | 2550 |
| Track Width | mm | 230 |
| Track Length | mm | 1500 |
| Classis Width | mm | 1100 |
Product Showcase
Why Choose TDER?
20+ Years of Expertise
158 Countries Served
42,000㎡ of Advanced Production
Over $91M+ Annual Sales
