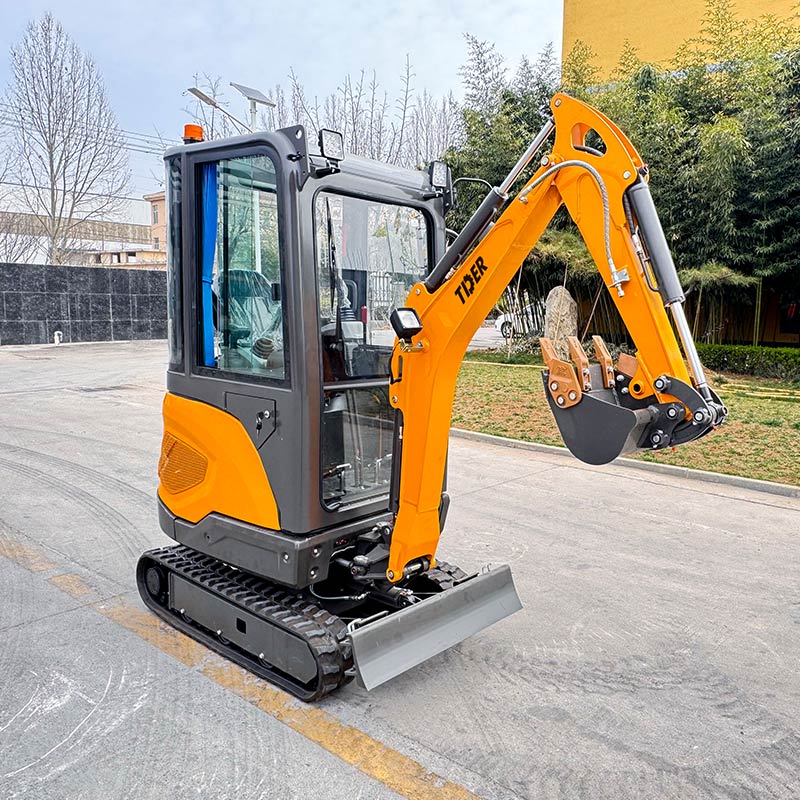

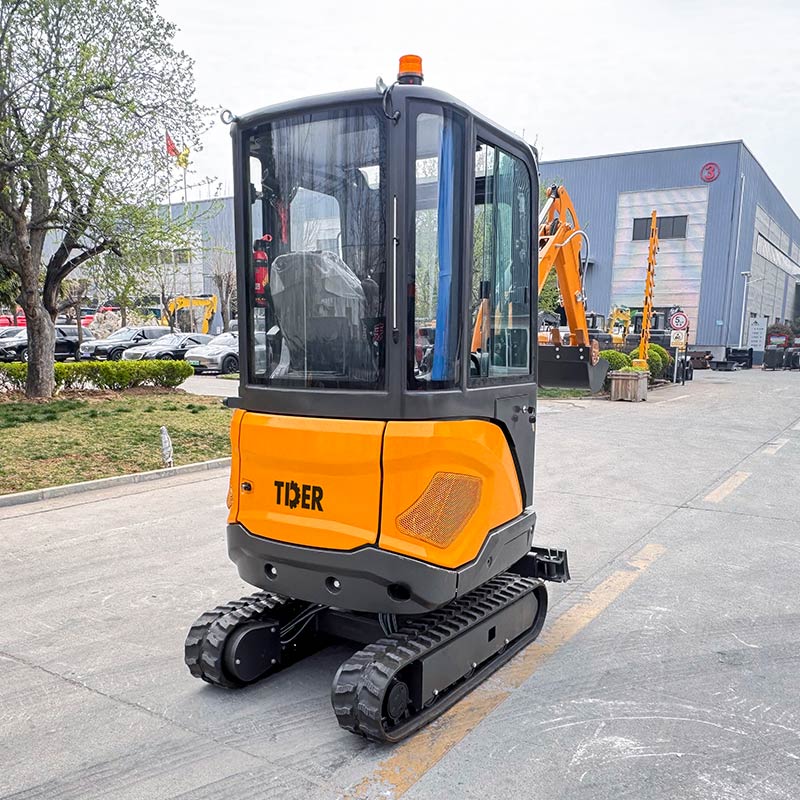

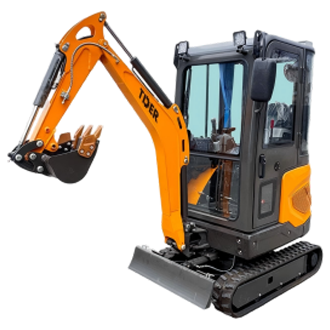

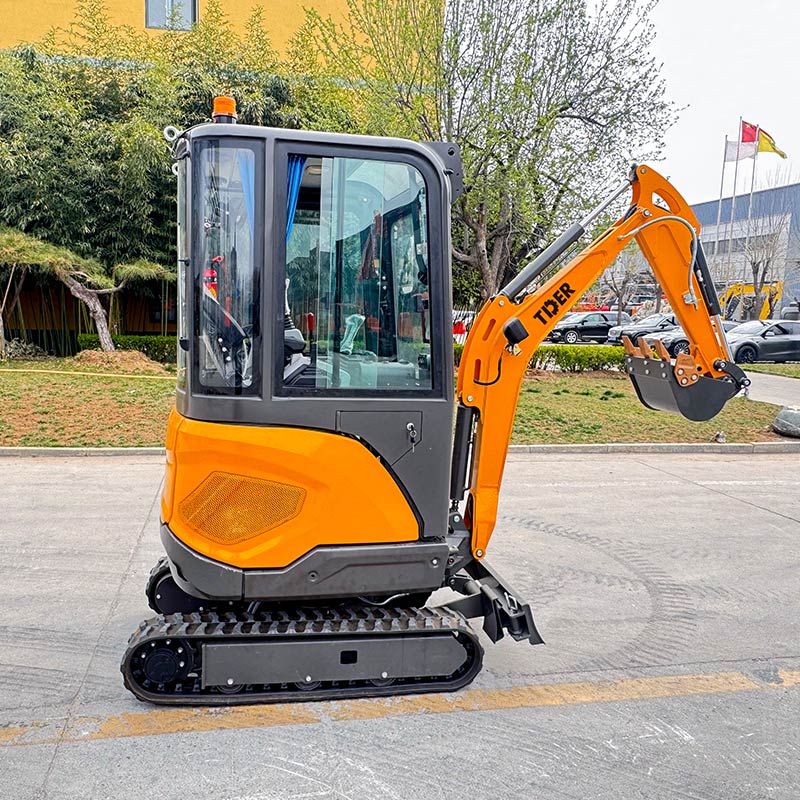

Name: 1.6 Ton Mini Excavator for Construction & Deep Digging Work
Availability: InStock

Features
Specifications
Product Showcase
Gallery
FAQs
Related Products

Features

Compact Excavator for Higher Lifting & Deep Digging Performance

TCE16 delivers a 1.6-ton operating weight with a 18.1 kW engine, providing stronger digging force and improved lifting capability compared to lighter mini excavators. With a maximum digging depth of over 2 meters and enhanced boom geometry, it is suitable for more demanding trenching and construction tasks.

Side Swing Boom for Flexible Operation in Narrow Job Sites

Equipped with a side swing boom, the TCE16 allows lateral movement without repositioning the machine. This improves efficiency when working close to walls, foundations, or in confined urban construction environments, reducing cycle time and improving precision.

High-Lift Design for Improved Material Handling Efficiency

With a maximum lifting height of 3381mm, the TCE16 offers stronger vertical reach for loading and material handling tasks. This makes it more effective in small construction sites where frequent dumping into trucks or higher platforms is required.

Standard Hydraulic Attachment System for Multi-Tool Capability

With standard breaker piping, the TCE16 supports hydraulic attachments such as breakers, enhancing its versatility for demolition, trenching, and general construction applications without requiring additional modifications.

Operator Comfort with Standard Canopy & Cooling System

The machine comes with canopy protection and oil cooling system as standard, improving operator comfort and protecting hydraulic stability during long hours of continuous work in demanding environments.

Rubber Tracks for Smooth Ground Protection

Rubber tracks reduce surface damage, improve traction, and lower vibration, making the TCE16 ideal for paved, landscaped, and sensitive work areas.

Specifications

Operating Weight	kg	1600
Bucket Capacity	m³	0.03
Engine Model		Laidong KM385B-216
Rated Power	kW	18.1
Swing Speed	r/min	0-12
Grade-Ability	%	35
Bucket Digging Force	kN	9
Arm Digging Force	kN	5.5
Maximum Tractive Force	kN	11.8
Main Pump Brand / Model		Tianjin Xingzou
Rated Flow of Main Pump	L/min	30
Main Safety Valve Pressure	MPa	17
Travel Speed (High/Low)	km/h	4.3/2.4 (or 1.8)
Ground Pressure	kPa	25.5
Track Roller Number		3×2
Track Number		45×2
Fuel Tank Capacity	L	15
Hydraulic Tank Capacity	L	14
Engine Oil Capacity	L	3.2
Coolant Capacity	L	5
Final Drive Oil Capacity	L	0.3
Overall Length	mm	3488
Overall Width	mm	990/1300
Overall Height (Boom Top)	mm	2186
Overall Height (Cab Top)	mm	2263
Counterweight Clearance	mm	460
Min. Ground Clearance	mm	150
Min. Tail Swing Radius	mm	715
Track Ground Length	mm	1175
Track Length	mm	1510
Track Gauge	mm	790/1100
Track Width	mm	200
Track Shoes Width (Standard)	mm	200
Turntable Width	mm	1020
Max. Digging Height	mm	3381
Max. Dumping Height	mm	2442
Max. Digging Depth	mm	2015
Max. Vertical Wall Digging Depth	mm	1807
Max. Digging Reach	mm	3753
Max. Digging Reach at Ground Level	mm	3705
Min. Swing Radius	mm	1555
Min. Height at Min. Swing Radius	mm	2263
Counterweight Height	mm	460
Ground Length (Transportation)	mm	1720
Boom Length	mm	1700
Arm Length	mm	890

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

Gallery

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
