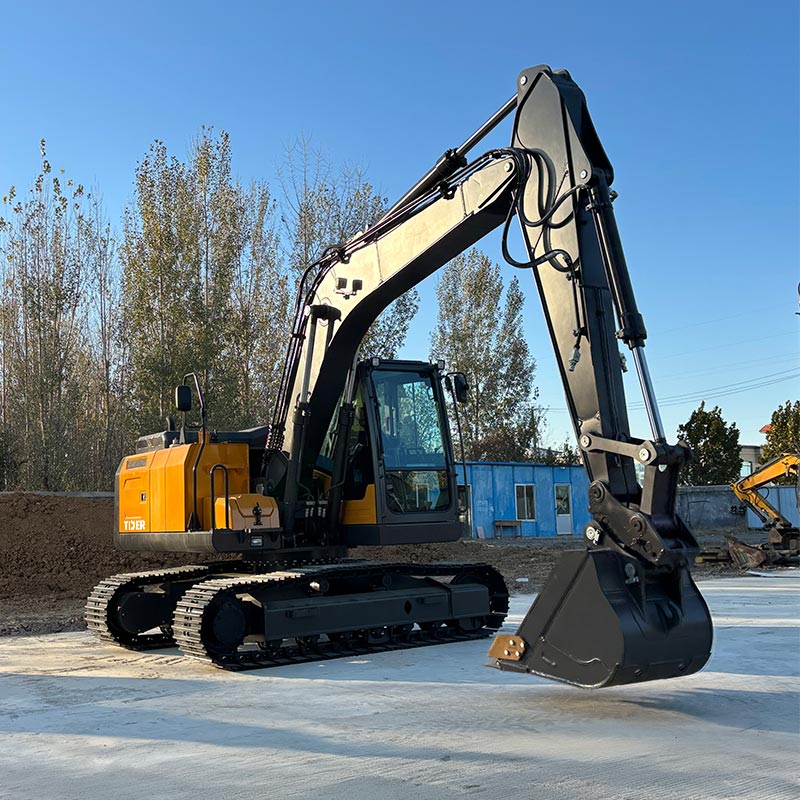

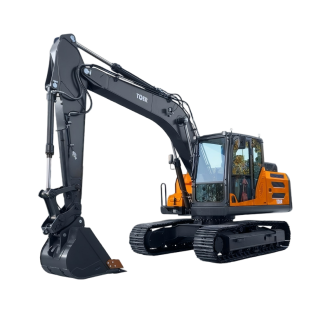

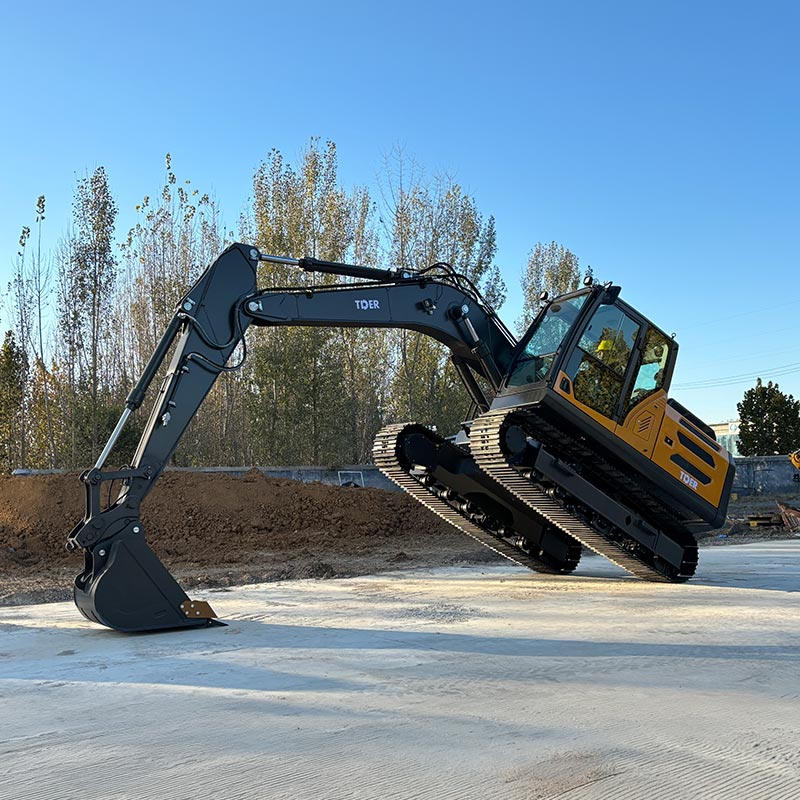

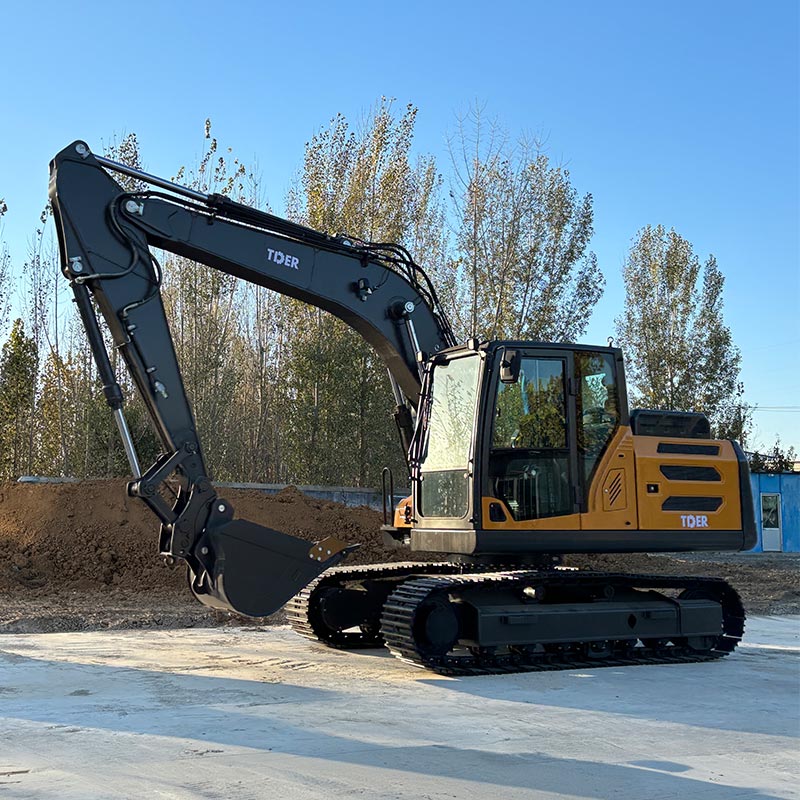

15 Ton Excavatorr
TCE150
Features
High Power Engine with Flexible Emission Options
Standard equipped with a Yuchai 4D125 engine (92 kW), the TCE150 provides strong torque and stable output, making it suitable for large-scale earthmoving, construction, and infrastructure projects requiring high productivity and reliability. Optional Cummins engines and Kubota V3800 engines compliant with EPA and Euro 5 standards are available to meet different global emission requirements.
Kawasaki Hydraulic Pump for Strong Suction & Long Life
Equipped with a Kawasaki double pump through-shaft hydraulic system, the machine delivers strong suction performance and stable hydraulic flow. The reinforced corrosion-resistant housing improves durability and extends service life under heavy-duty working conditions.
Parker Control Valve for High Precision Operation
Using a U.S.-made Parker valve system, the TCE150 ensures high precision and repeatability in hydraulic control, enabling smooth and accurate movement across all working functions with improved operational stability.
Ergonomic Cab with Air Conditioning & Shock Absorption
The enclosed cab is upgraded with air conditioning and a shock-absorbing seat, while the pilot control system is ergonomically optimized. This significantly reduces operator fatigue and provides a more comfortable working environment during long shifts.
Wider Track Option for Soft Ground Stability
The machine supports wider track configuration, increasing ground contact area and improving stability. This upgrade enhances performance on soft soil, muddy terrain, and challenging jobsite conditions.
Specifications
| Operating Weight | Kg | 15000 |
| Engine Model | YUCHAI 4D125 | |
| Rated Power | Kw | 92KW |
| Bucket Capacity | m³ | 0.6 |
| Max Digging Force | Kn | 91 |
| Swing Speed | rpm | 0-12 |
| Traveling Speed | km/h | 2.8-4.2 |
| Gradeability | ° | 70(35°) |
| Operating Range | ||
| Max. Digging Radius | mm | 8000 |
| Max. Digging Depth | mm | 5095 |
| Max. Digging Height | mm | 8540 |
| Max. Dumping Height | mm | 6125 |
| Tail Swing Radius | mm | 2420 |
| Overall Dimensions | ||
| Overall Length | mm | 7635 |
| Overall Width | mm | 2500 |
| Overall Height | mm | 2750 |
| Mini.Ground Clearance | mm | 400 |
| Track Width | mm | 500 |
| Undercarriage width | mm | 2500 |
| Undercarriage ground clearance | mm | 400 |
