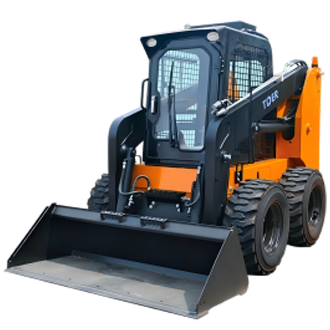

950kg Skid Steer Loader
TDS65
Features
Built-in Air Filtration System for Cleaner Operation Environment
A standard air filtration system helps reduce dust intake into the engine, improving engine protection and extending service life in dusty construction and mining environments.
Massive Capacity & Extended Reach
Standard 12-16.5 Advance tires provide strong load-bearing capacity and reliable traction in rough terrain, reducing downtime caused by tire wear or puncture issues.
Global Engine Choice for Reduced Risk & Easier Service
TDS65 is equipped with a standard Xinchai 55kW engine, while offering optional engines from globally recognized brands such as Cummins, Yanmar, Kubota, LS, and Euro V compliant Xinchai models.
For customers, choosing a well-known engine brand is not only about performance, but also about reducing long-term operational risk and ensuring easier local servicing.
New Optional Upgraded Cab for Operator Protection & Comfort
The standard enclosed cab structure provides protection from dust, wind, and harsh environments, helping operators maintain productivity during long working hours.
A new optional upgraded cab system further enhances comfort and visibility for higher-end working requirements.
Specifications
| Operating Load | Kg | 950 |
| Max Speed | Km/H | 12 |
| Rated Flux | L/Min | 75 |
| High Flow Flux | L/Min | 120 |
| Tire Model | 12-16.5 | |
| Self Weight Bucket | Kg | 3400 |
| Bucket Capacity | M³ | 0.5 |
| Overall Operating Height | mm | 4070 |
| Hheight To Top Of Cab | mm | 2160 |
| Without Bucket Length | mm | 2880 |
| Overall Length With Bucket | mm | 3580 |
| Dumping Height | mm | 2450 |
| Width | mm | 1880 |
| Bucket Width | mm | 1880 |
| Height To Bottom Of Level Bucket | mm | 2983 |
| Dumping Angle At Maximum Height | ° | 40 |
| Height To Bucket Hinge Pin | mm | 3150 |
| Dumping Reach | mm | 700 |
| Rollback Of Bucket On Ground | ° | 30 |
| Rollback Of Bucket At Full Height | ° | 104 |
| Wheelbase | mm | 1115 |
| Ground Clearance | mm | 205 |
| Angle Of Departure | ° | 20 |
| Front Turning Radius Without Bucket | mm | 1250 |
| Front Tuning Radius | mm | 2112 |
| Rear Tuning Radius | mm | 1774 |
| Rear Axle To Bumper | mm | 1082 |
| Tread Width | mm | 1500 |
| Engine | Xinchai A498BZG/T | |
| Rated Power | Kw | 55 |
| Fuel Tank Capacity | L | 75 |

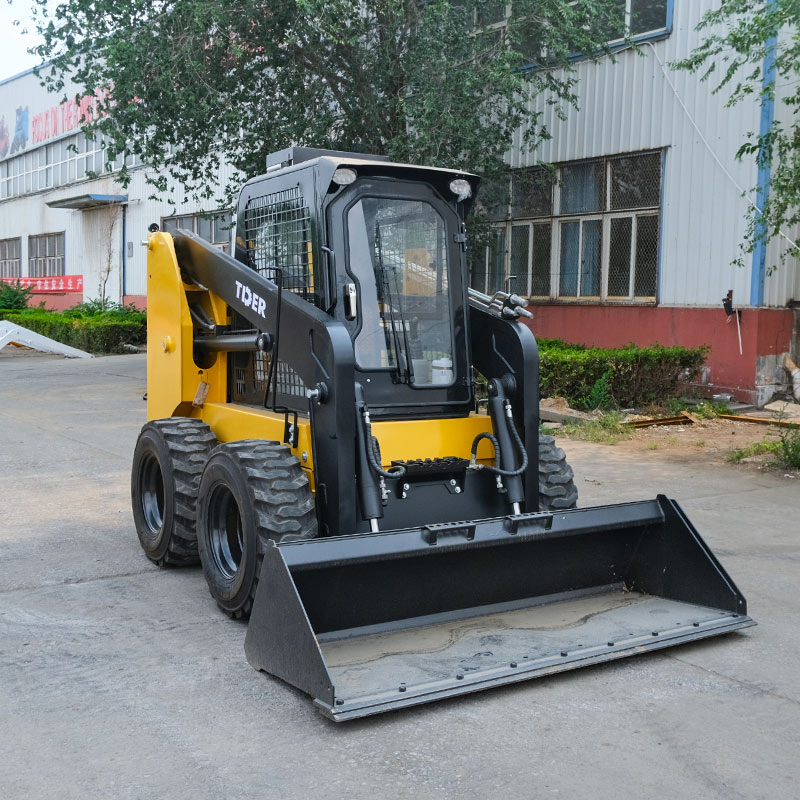

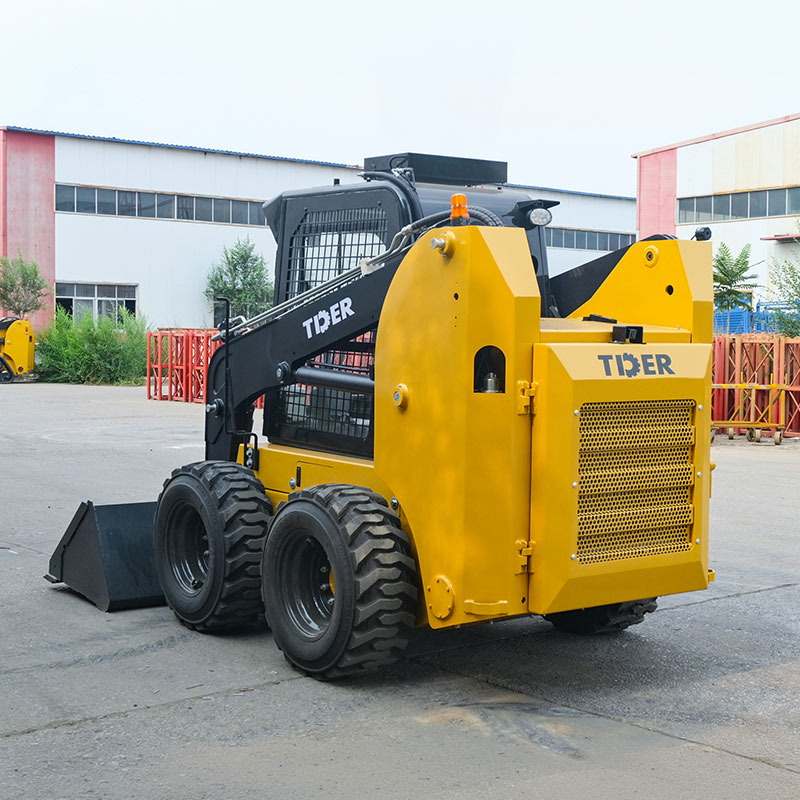

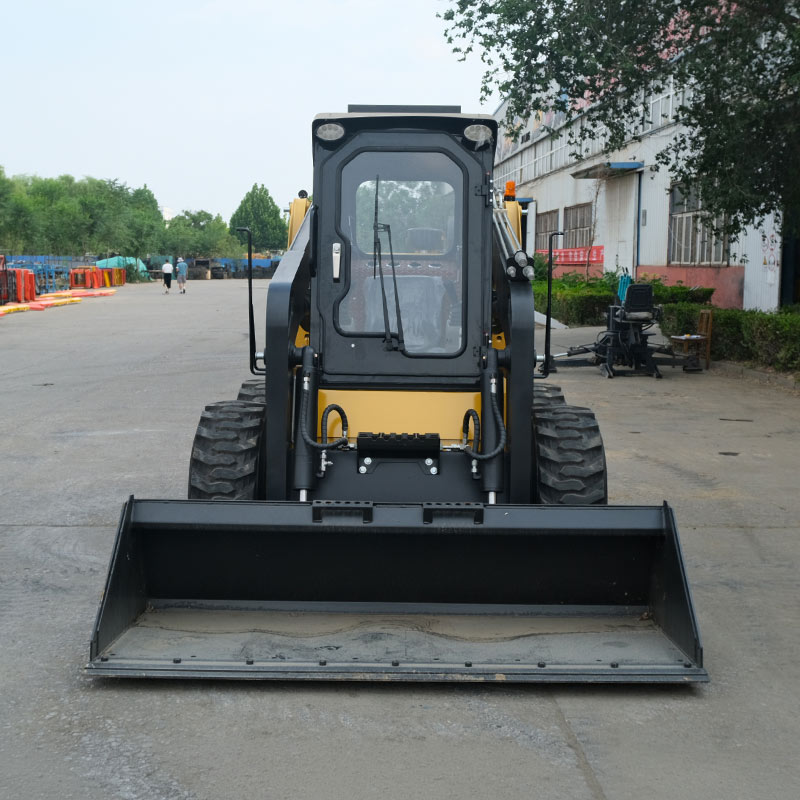

Product Showcase
