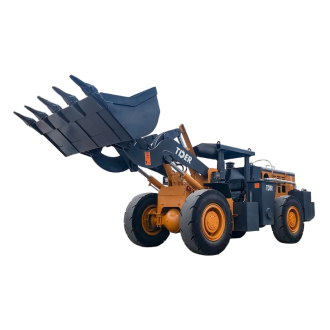

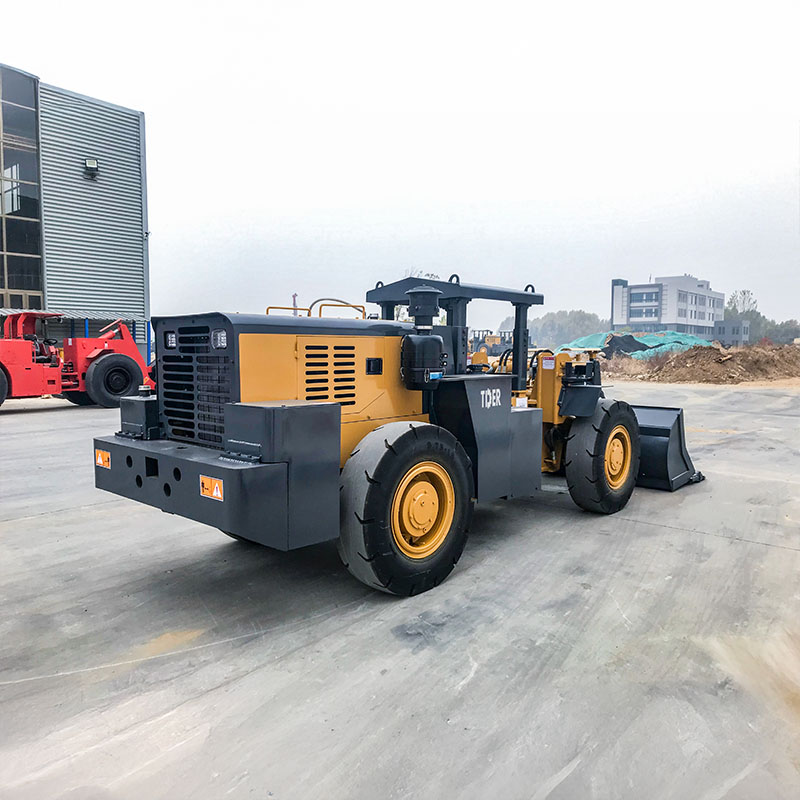

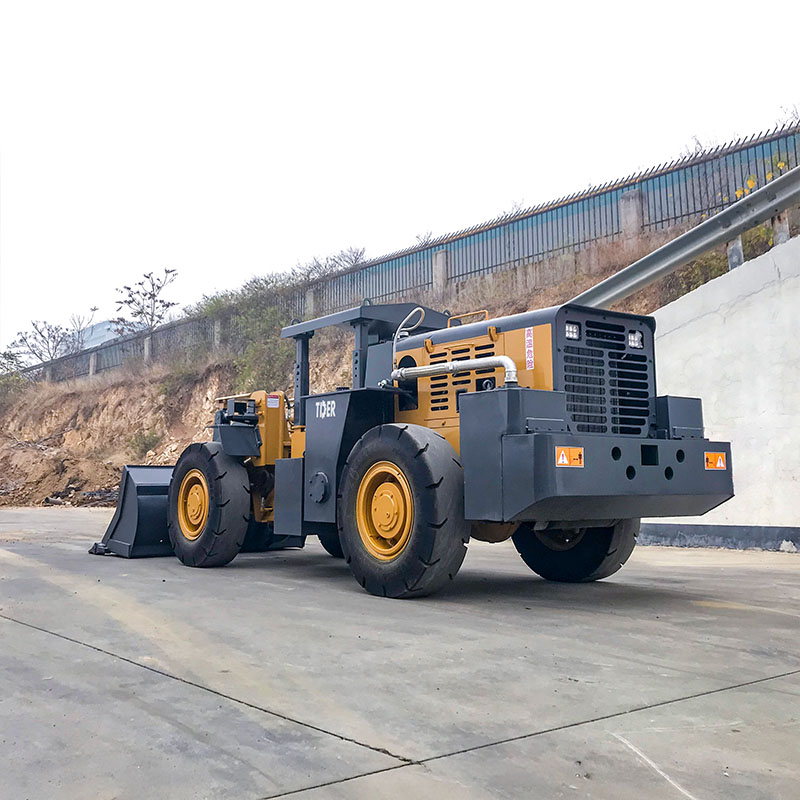

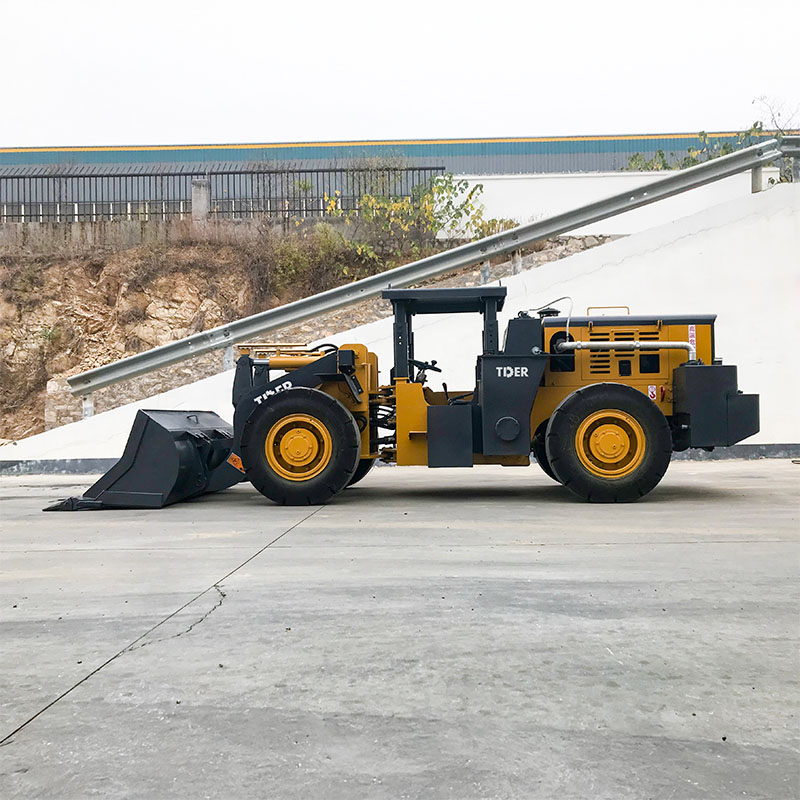

2 Ton Underground Loader
ZT920U
Features
Reinforced Heavy-Duty Double Boom Structure for Stable Loading
The reinforced double boom design improves lifting stability and load distribution, reducing forward tilt during bucket operation and enhancing durability under continuous heavy-impact underground loading conditions.
Optional Cummins Engine for Multi-Application Flexibility
Optional Cummins engine provides reliable low-speed high-torque output, ensuring stable performance in mining, road excavation, construction, and bulk material transport applications across different working environments.
Heavy-Duty Wet Brake Safety System
Multi-disc wet braking system provides stronger heat resistance and stable braking force, improving safety control during frequent stopping, downhill operation, and heavy-load handling in underground mining environments.
Specifications
| Bucket Capacity | m³ | 1 |
| Rated Load | t | 2 |
| Operating Weight | t | 6.5 |
| Speed | km/h | 0-19 |
| Forward Gear | km/h | I0-6.5Ⅱ0-19 |
| Reverse Gear | km/h | I0-6 Ⅱ0-18 |
| Grade Ability | ° | 15° |
| Overall Dimension (L×W×H) | mm | 5580×1830×2000 |
| Turning Radius (Inner side) | mm | 3350(Inner side) |
| Turning Radius (Outside) | mm | 5400(Outside) |
| Min. Ground Clearance | mm | 320 |
| Wheel Base | mm | 2450 |
| Wheel Tread | mm | 1440 |
| Max. Dumping Height | mm | 1930 |
| Dumping Reach | mm | 830 |
| Engine Model | - | Dongfanghong (YTO) LR4A3LR22/0735 |
| Rated Power | kW | 73.5 |
| Tire Model | - | 16/70-20 or 9.75-18 |
