Name: 800kg Compact Road Roller with Hydraulic Oil Cooler
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Steering Wheel Control with Hydraulic Assistance

The TR08C features a steering wheel control system with hydraulic-assisted steering, allowing operators to change direction smoothly without manual steering effort. This design improves handling precision and makes the machine easier to operate during continuous compaction work.

Hydraulic Cooling System for Extended Working Performance

Equipped with a hydraulic oil air cooler, the TR08C improves heat dissipation efficiency during continuous operation. The cooling system helps maintain stable hydraulic performance, extends component service life, and supports longer working cycles in demanding environments.

Optimized Drum Configuration for Better Performance

The TR08C adopts a different-width drum configuration with a 700mm front steel drum and a 500mm rear steering drum. The wider front drum increases compaction coverage during operation, while the narrower rear drum improves maneuverability and turning flexibility, providing a practical balance between productivity and control.

Integrated Control Panel for Convenient Operation

The TR08C is equipped with a multifunction control instrument panel and one-button operation functions, allowing operators to monitor machine conditions and control key functions more conveniently. The intuitive layout improves working efficiency and reduces unnecessary operation steps.

LED Lighting for Extended Working Hours

The front-mounted LED headlights improve visibility during early morning, evening, or low-light construction operations. This feature allows the TR08C to maintain productivity beyond normal daylight working hours.

Specifications

Weight	Operating Weight	kg	800
	Static Line Load	N/cm	55
Dimensions	Working Width	mm	875
	Overall Length (Guard Folded / Upright)	mm	1550
	Overall Height (Guard Folded / Upright)	mm	1210
	Outer Turning Radius	mm	2300
	Front Drum Width	mm	700
	Rear Drum Width	mm	500
	Front Drum Diameter	mm	530
	Rear Drum Diameter	mm	425
	Wheel Track	mm	1110
Drive	Engine Brand	—	Honda	Loncin	Changfa	Changchai
	Engine Model	—	GX390	390FD	180F	178F
	Engine Type	—	Gasoline, 4-Stroke	Gasoline, Air-Cooled	Diesel, 4-Stroke	Air-Cooled 4-Stroke
	Number of Cylinders	—	1	1	1	1
	Output Power	kW	9.7	9.7	4.8	4.4
	Rated Speed	rpm	3600	2400	3600	3600
	Electrical System	V	12
	Drive System	—	Bidirectional Hydraulic Drive with Chain Transmission
Travel Characteristics	Travel Speed	km/h	0-6
	Theoretical Gradeability	%	30
Brake	Working Brake	—	Variable Displacement Piston Pump
Steering	Steering Method	—	Mechanical Steering
	Steering System	—	Rear Wheel Steering
Vibration System	Vibrating Drum	—	Front Drum
	Drive Form	—	Mechanical Transmission
	Vibration Frequency	Hz	70
	Vibration Amplitude	mm	0.5
	Exciting Force	kN	30
Sprinkler System	Sprinkler Type	—	Gravity Shower
Capacity	Hydraulic Oil Capacity	L	12
	Fuel Tank Capacity	L	6.5	6.5	3.5	2.7
	Water Tank Capacity	L	18

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

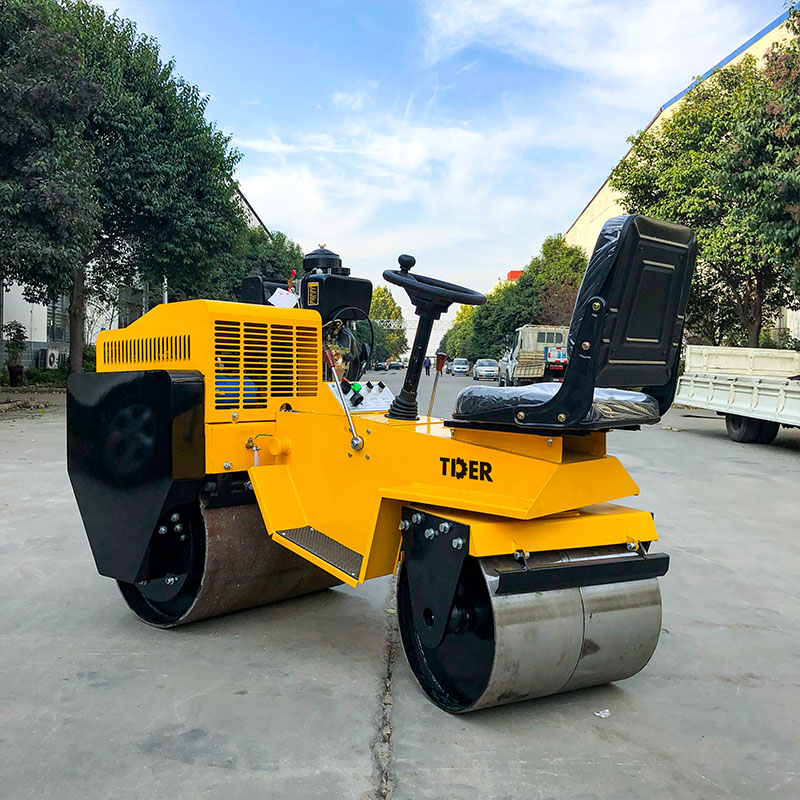

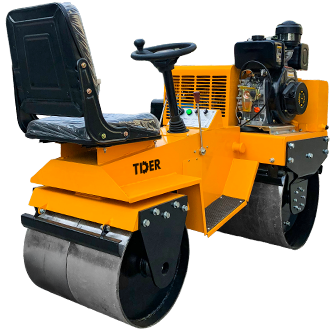

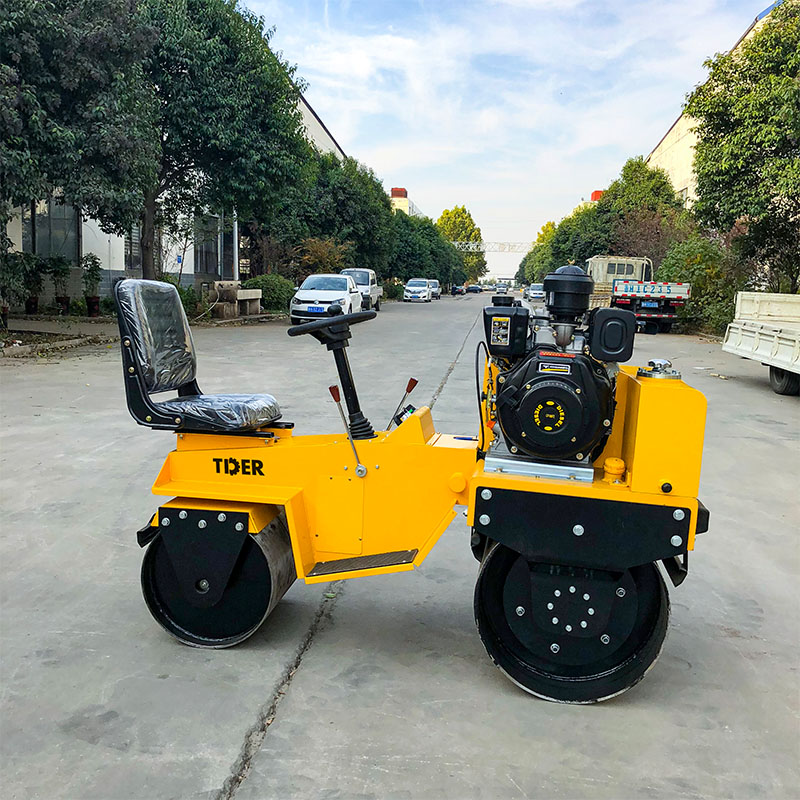

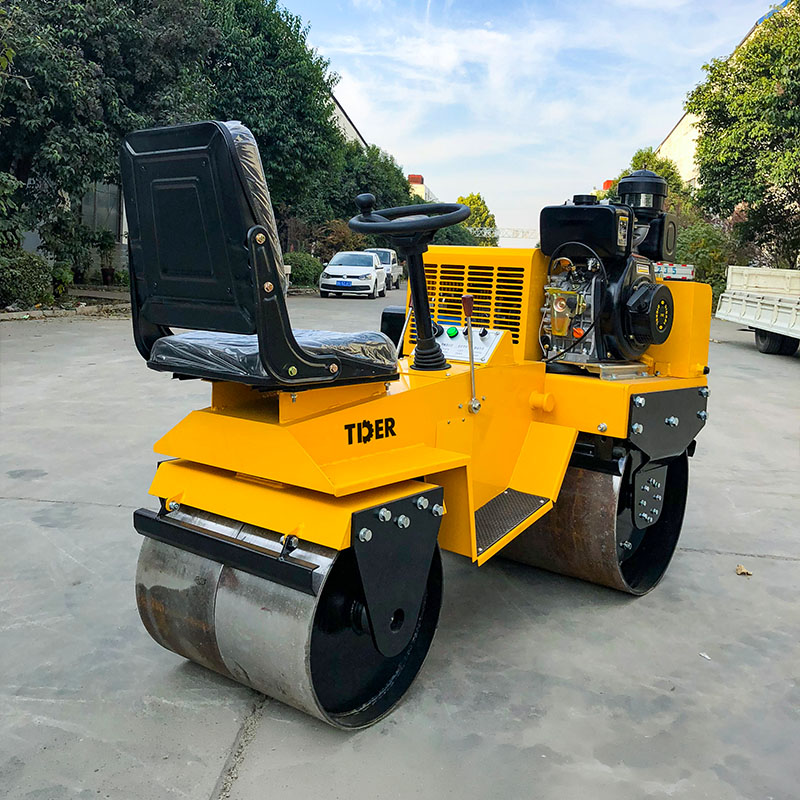

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
