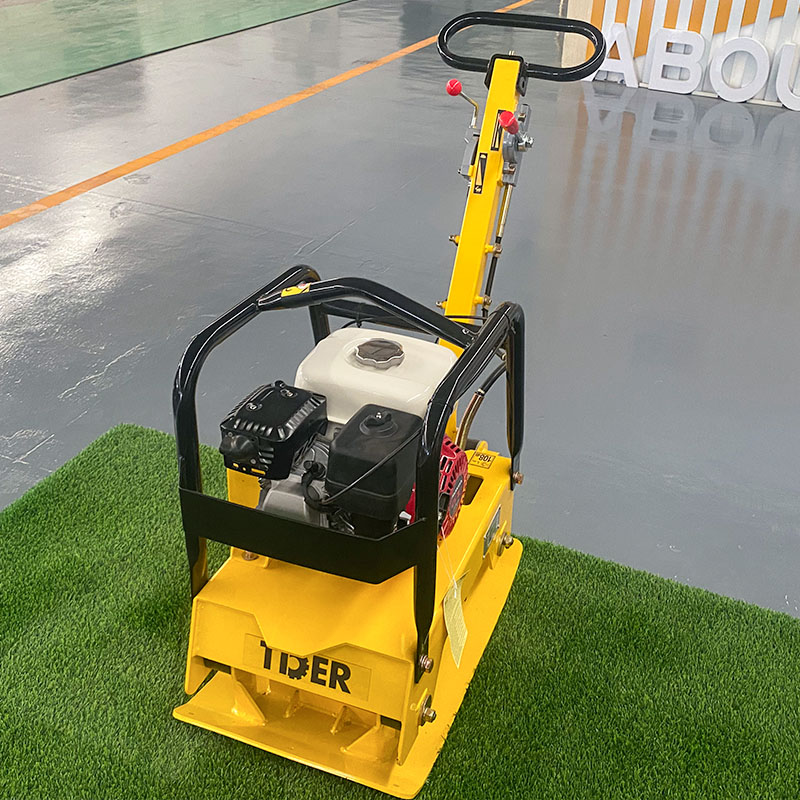

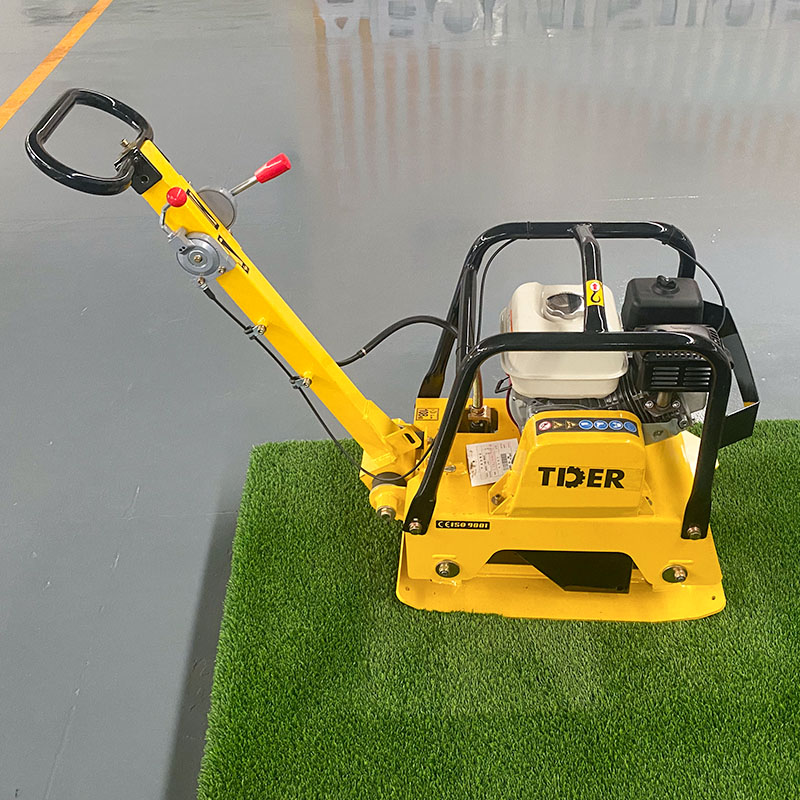

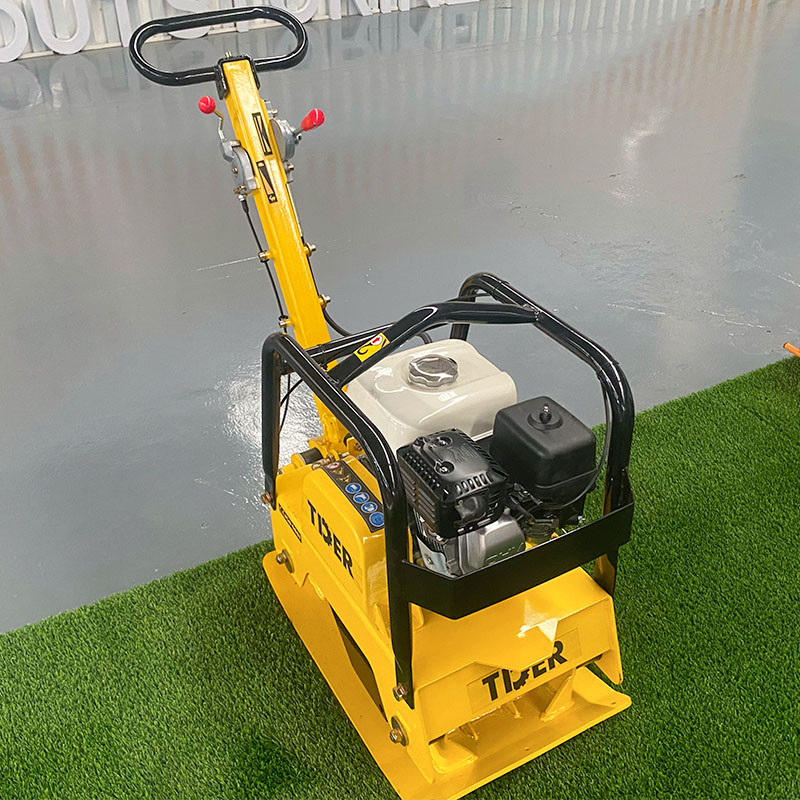

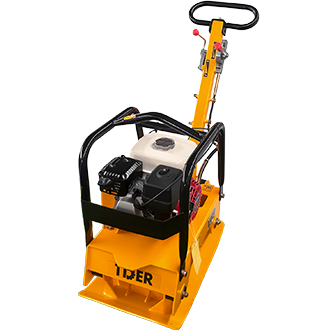

Vibratory Plate
TRP125
Features
Easy Turning With Responsive Handling
The TRP125 combines excellent turning performance with responsive handling, making it easy for operators to change direction and position the machine during compaction work. Its well-balanced design also helps maintain low horizontal resistance for smoother movement across the working surface.
Honda Gasoline Engine For Dependable Performance
Equipped with a Honda gasoline engine as standard, the TRP125 provides dependable power for daily compaction work. The proven engine configuration offers a practical combination of performance, easy operation and long-term reliability.
Full-Width Water Spray For Asphalt Compaction
The integrated spray system provides reliable water coverage across the full width of the base plate, helping prevent asphalt from sticking during compaction. Efficient water distribution reduces unnecessary water consumption and means less frequent refilling during operation.
Low Hand-Arm Vibration For Greater Operator Comfort
The TRP125 is designed to minimize the operator's daily exposure to vibration. Reduced vibration transmitted through the guide handle helps make extended compaction work more comfortable and supports more controlled machine handling throughout the working day.
Specifications
| Engine Brand | — | HONDA |
| Engine Model | — | GX160 |
| Engine Type | — | Single-Cylinder, Air-Cooled, Four-Stroke |
| Number of Cylinders | — | 1 |
| Engine Power | hp | 5.5 |
| Operating Weight | kg | 125 |
| Excitation Frequency | Hz | 72 |
| Exciting Force | kN | 25 |
| Compaction Depth | cm | 30 |
| Travel Speed | m/min | 28 |
| Working Efficiency | m²/h | 400 |
| Plate Size | cm | 62 × 40 |
| Working Dimensions | cm | 120 × 40 × 93 |
*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.
Product Showcase
Why Choose TDER?
20+ Years of Expertise
158 Countries Served
42,000㎡ of Advanced Production
Over $91M+ Annual Sales
