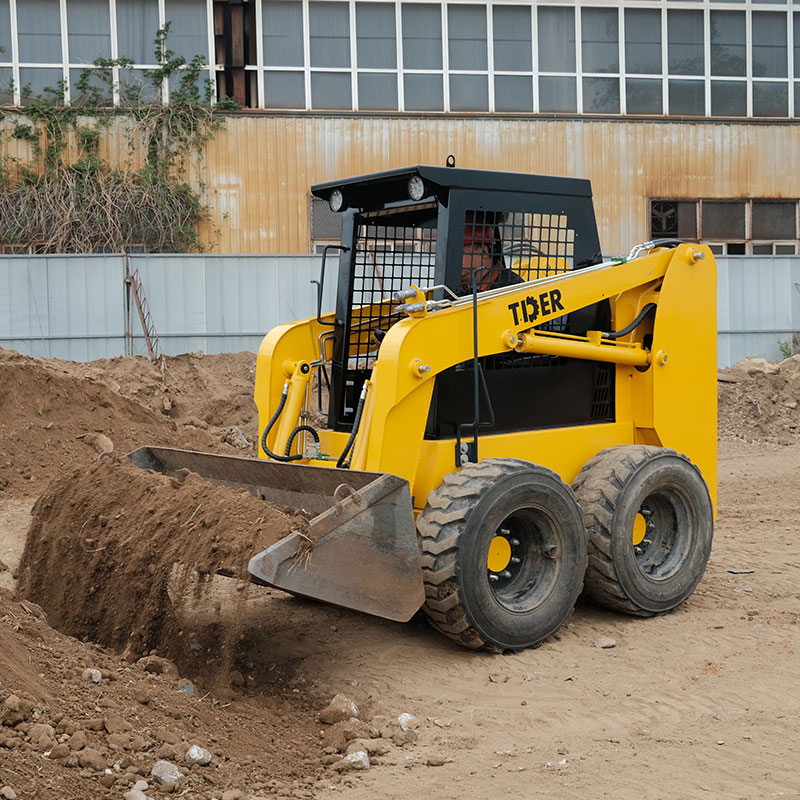

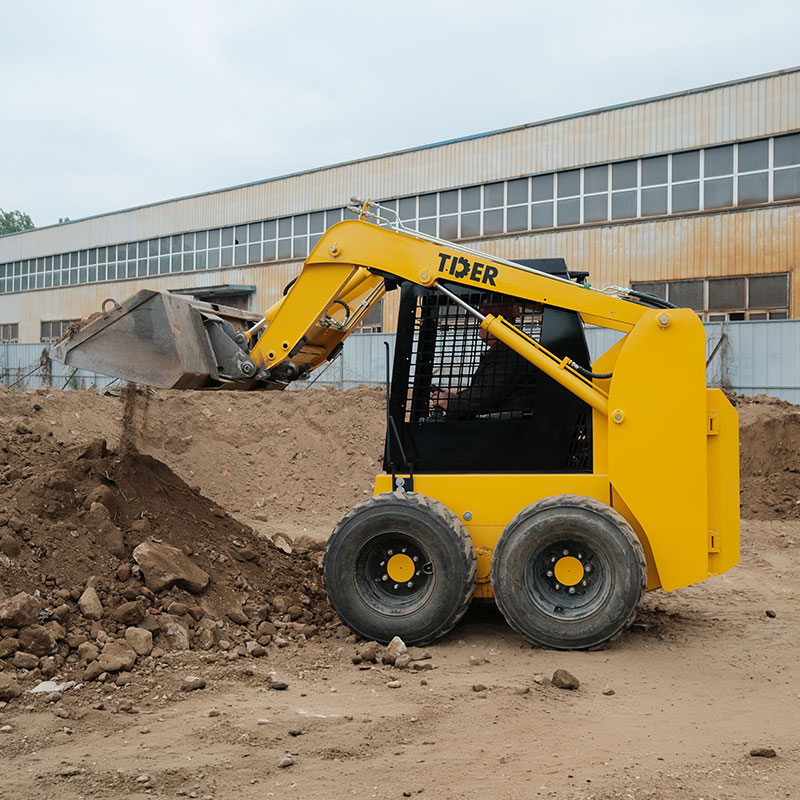

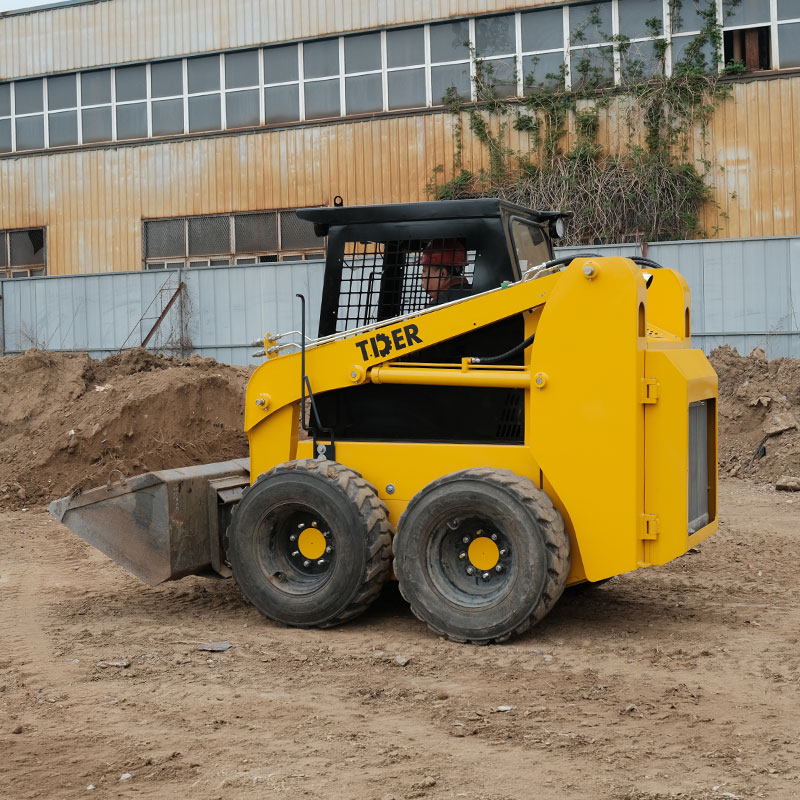

700kg Skid Steer Loader

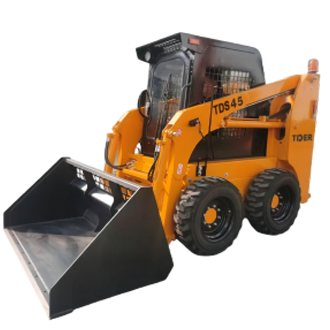

TDS45
Features
Danfoss Hydraulic Drive System for Stable High-Load Performance
Equipped with Danfoss motors and Danfoss pump system, combined with an Italian HB valve system, the machine delivers stable hydraulic power transmission and consistent driving force under heavy load conditions. This improves traction stability and operational reliability during continuous pushing, loading, and attachment-driven work cycles.
Reinforced Tire & Track Expansion Options for Tough Terrain
In addition to Advance brand 10-16.5 tires, the machine supports optional rubber track and steel track over-tire systems, significantly improving traction and stability in soft ground, muddy sites, and high-slip environments. This expands the machine’s usability from standard job sites to more challenging terrain conditions.
Improved Visibility & Simple Operator Layout
TDS45 features an open cab design with an optimized operator position, providing better visibility and easier machine control during daily working conditions. Standard LED lighting further improves safety during night operation.
Universal Quick Coupler for Fast Attachment Switching
The international quick coupler system is compatible with Bobcat and other major skid steer attachment standards, enabling fast and easy attachment changes, reducing operator effort and improving overall job site efficiency.
Specifications
| Operating Load | Kg | 700 |
| Max Speed | Km/H | 12 |
| Rated Flux | L/Min | 62.5 |
| High Flow Flux | L/Min | / |
| Tire Model | 10-16.5 | |
| Self Weight Bucket | Kg | 3000 |
| Bucket Capacity | M³ | 0.4 |
| Overall Operating Height | mm | 3980 |
| Hheight To Top Of Cab | mm | 2140 |
| Without Bucket Length | mm | 2640 |
| Overall Length With Bucket | mm | 3420 |
| Dumping Height | mm | 2380 |
| Width | mm | 1720 |
| Bucket Width | mm | 1740 |
| Height To Bottom Of Level Bucket | mm | 2913 |
| Dumping Angle At Maximum Height | ° | 40 |
| Height To Bucket Hinge Pin | mm | 3080 |
| Dumping Reach | mm | 700 |
| Rollback Of Bucket On Ground | ° | 30 |
| Rollback Of Bucket At Full Height | ° | 104 |
| Wheelbase | mm | 991 |
| Ground Clearance | mm | 185 |
| Angle Of Departure | ° | 20 |
| Front Turning Radius Without Bucket | mm | 1168 |
| Front Tuning Radius | mm | 1958 |
| Rear Tuning Radius | mm | 1630 |
| Rear Axle To Bumper | mm | 1108 |
| Tread Width | mm | 1450 |
| Engine | Xinchai C490 | |
| Rated Power | Kw | 36.7 |
| Fuel Tank Capacity | L | 70 |
