Name: 7 Ton Electric Wheel Loader for Heavy-Duty Mining and Construction
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

310kWh CATL Battery System for Heavy-Duty Electric Operation

Powered by a dual-circuit CATL lithium battery system with 310.66kWh capacity, the ZT970EV provides a large energy reserve for high-capacity loading applications. The high-voltage battery platform supports stable operation for demanding construction, mining support, and industrial material handling tasks.

Advanced Three-Motor Electric Architecture for Enhanced Efficiency

The ZT970EV adopts an advanced three-motor electric architecture, providing independent power distribution for travel and working functions. Compared with conventional two-motor systems, the three-motor configuration eliminates the need for a traditional gearbox and enables more direct power transmission through independent axle drive. This highly integrated electric drivetrain improves energy efficiency, response speed, and operational reliability during high-capacity loading applications.

Reinforced Articulated Structure for High-Capacity Loading

The ZT970EV adopts a reinforced structural platform integrating a heavy-duty frame and upgraded drive axle system. The optimized chassis strength and enhanced load-bearing drivetrain improve stability, torque transmission, and durability during continuous high-capacity loading operations. This integrated design enables reliable performance in demanding applications such as bulk material handling, construction, and industrial yards.

Large Bucket Capacity for Higher Productivity

With a 4.2–4.5m³ toothed bucket and 3.752m unloading height, the ZT970EV increases material volume per cycle, improving loading efficiency in quarry, mining support, bulk material yards, and large construction applications.

Dual-Gun Fast Charging for Large-Capacity Battery Systems

The dual-gun fast charging system improves charging efficiency for the high-capacity battery pack, reducing downtime between operating cycles and supporting continuous heavy-duty applications.

Specifications

Rated Load		kg	7000
Bucket Capacity		m³	4.2–4.5
Operating Weight		kg	25000
Rated Power		kW	510
Dumping Height		mm	3752
Dumping Reach		mm	1479
Wheelbase		mm	3700
Wheel Tread		mm	2300
Max. Traction Force		kN	195
Max. Breakout Force		kN	210
Total Cycle Time		s	9.7
Lifting Time		s	5.8
Dumping Time		s	3.5
Max. Climbing Angle		°	28
Turning Angle		°	40
Forward Gear I / II		km/h	18 / 36
Reverse Gear I		km/h	18 / 36
Overall Dimensions (L × W × H)		mm	9782 × 3007 × 3587
Service Brake		-	Air-over-oil, Clamp Disc Type
Hand Brake		-	Pneumatic Control, Clamp Disc Type
Air Conditioning System		-	Electric Heating and Cooling
System Voltage		V	DC 24
Tire Model		-	26.5-25
Battery Life		h	5–7
Charging Time		min	60
Power Battery System	Battery Type	-	Lithium Battery
	Rated Capacity	Ah	608
	Energy Storage Capacity	kWh	350
	Nominal Voltage	V	576
Working Hydraulic System	Type	-	Double Pump Confluence
Working Hydraulic System	Operation Method	-	Pilot Control

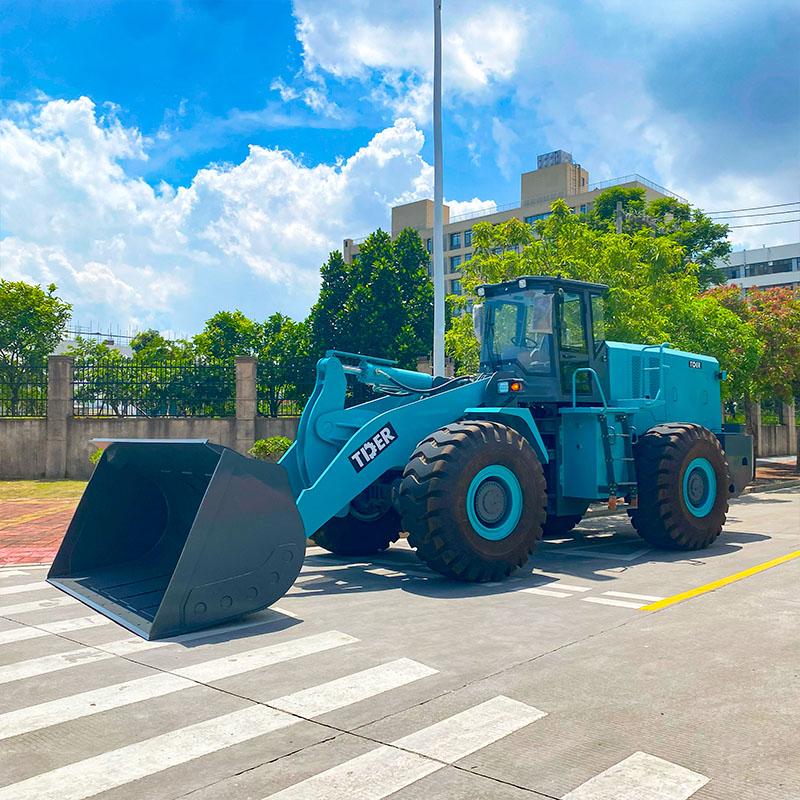

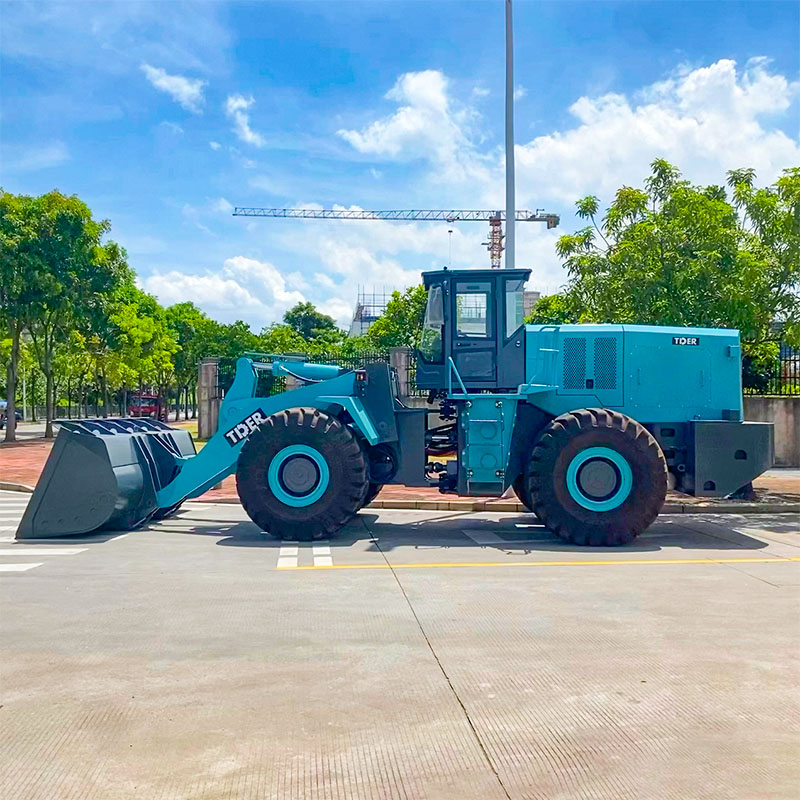

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
