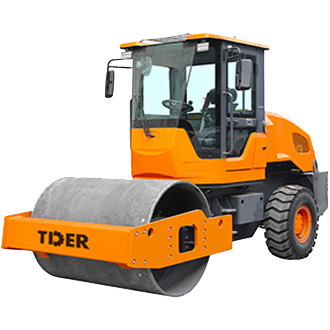

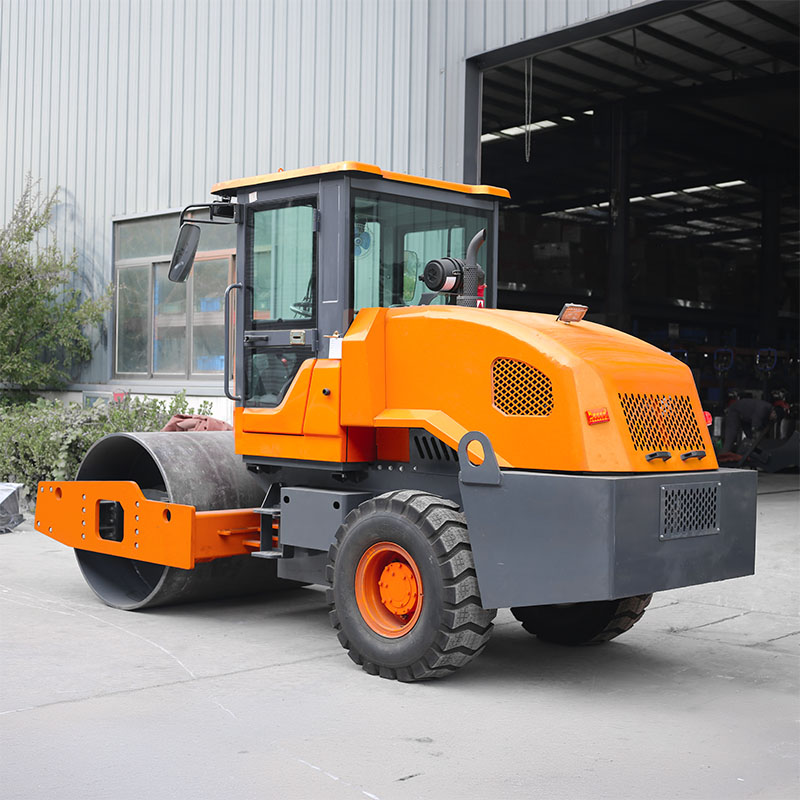

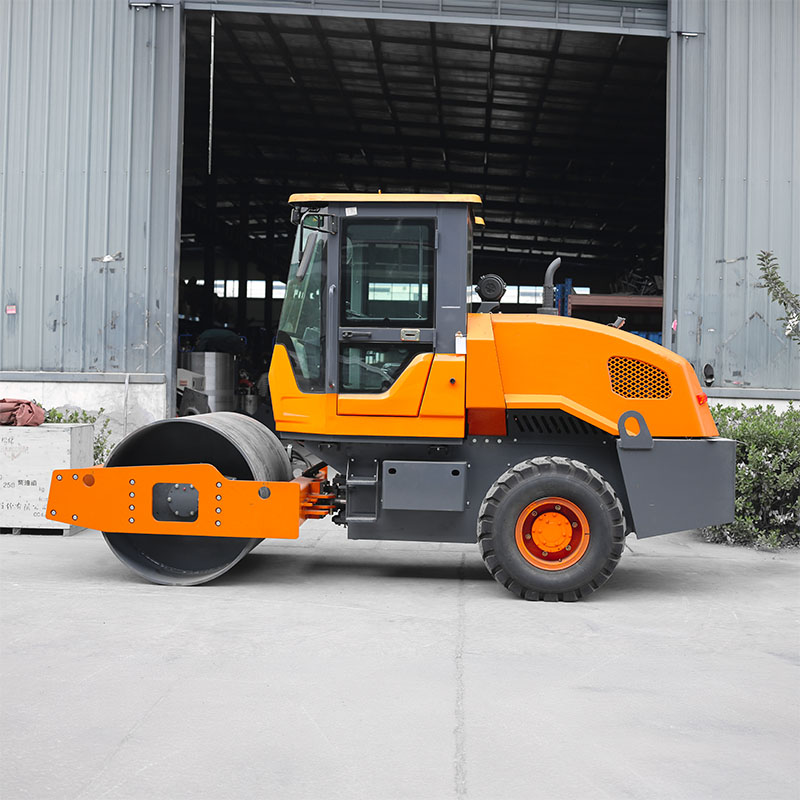

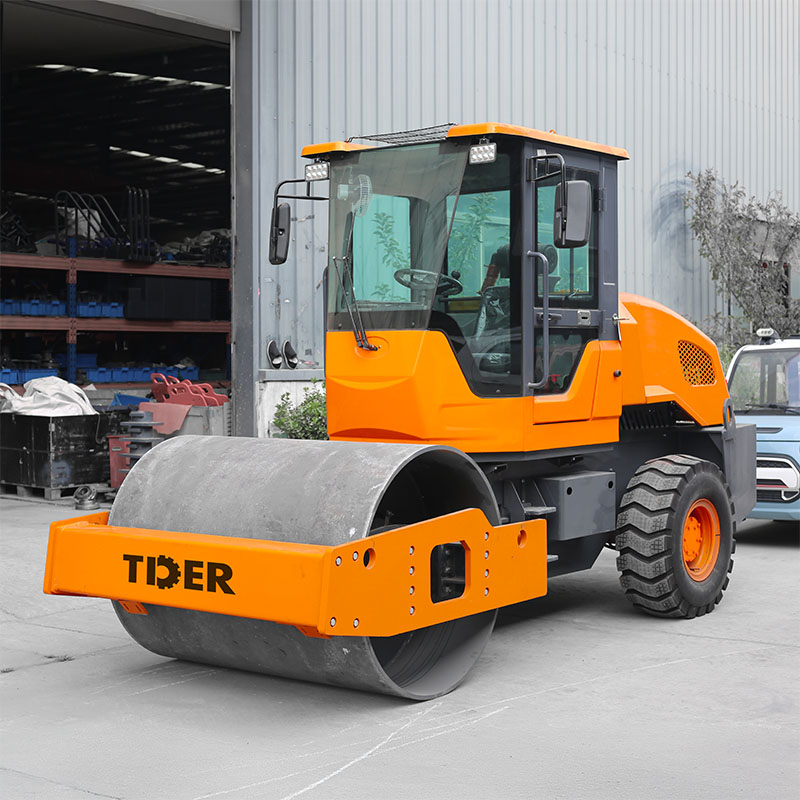

Name: 6 Ton Single Drum Roller with XCMG Hydraulics
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Torque Converter Rear-Wheel Drive for Direct Power Delivery

The TR60 uses a torque converter and transmission to drive the rear axle and two pneumatic tires. Without a separate travel motor, the powertrain has a straightforward mechanical layout that delivers engine power directly to the rear wheels.

Large Front Drum for Broad Compaction Coverage

The 1,450 mm wide and 1,060 mm diameter front steel drum provides a wide working surface while maintaining a large rolling diameter. This allows the TR60 to cover more road surface with each pass and maintain stable contact during compaction.

XCMG Hydraulic Components for Proven System Support

The TR60 uses XCMG hydraulic components, including the vibration motor and hydraulic pump. XCMG is a well-established construction machinery manufacturer, giving customers a recognized brand within the machine's hydraulic and vibration system.

Front-Drum Hydraulic Vibration for Focused Compaction

Hydraulic vibration is applied directly to the front steel drum, while the rear pneumatic tires provide propulsion. This gives the machine a clear working division between front-drum compaction and rear-wheel driving.

Air-Over-Oil Braking for Integrated Road Operation

The TR60 is equipped with an air-over-oil braking system, working with its rear axle and torque-converter drivetrain. This provides a dedicated braking system for a machine designed around rear-wheel propulsion.

Enclosed Cab for a More Protected Working Environment

The standard cab provides an enclosed operator station rather than an open platform. This gives the TR60 a more protected working environment during outdoor road construction and maintenance operations.

Specifications

Travel	Maximum Travel Speed	km/h	0–8
	Gradeability	%	30
	Minimum Turning Radius	mm	5200
Compaction	Static Line Load	N/cm	240
	Nominal Amplitude	mm	0.5
	Vibration Frequency	Hz	60
	Exciting Force	kN	75
Hydraulic System	Hydraulic Oil Tank Capacity	L	60
Working	Drive Type	—	Rear-Wheel Drive
	Vibration Type	—	Hydraulic Vibration
	Steering Type	—	Hydraulic Steering
Weight	Net Weight	kg	5120
Weight	Operating Weight	kg	6000
Engine	Engine Model	—	CHANGCHAI 490
	Engine Type	—	Diesel, 4-Cylinder, Water-Cooled
	Output Power	hp / rpm	49 / 2400
	Fuel Tank Capacity	L	68
	Emission Options	—	China Stage III / Stage IV / EPA / Euro V
	Optional Engines	—	CHANGCHAI 490 / Yanmar 386
	Other Engine Options	—	Available upon request
Dimensions	Front Steel Drum Width	mm	1450
	Front Steel Drum Diameter	mm	1060
	Overall Length	mm	4560
	Overall Width	mm	1650
	Overall Height	mm	2300
	Wheelbase	mm	2350
	Overall Dimensions	mm	4560 × 1650 × 2300

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
