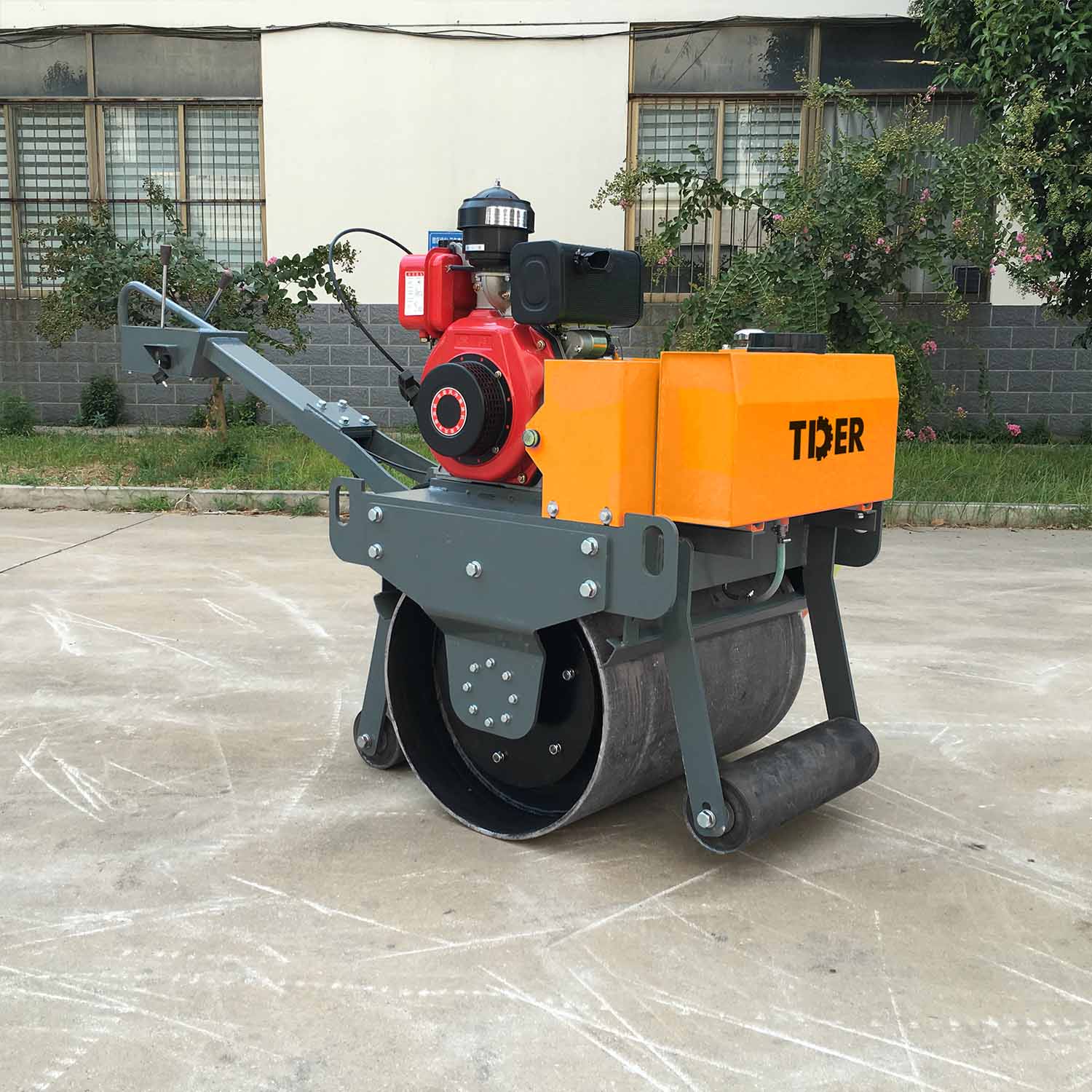

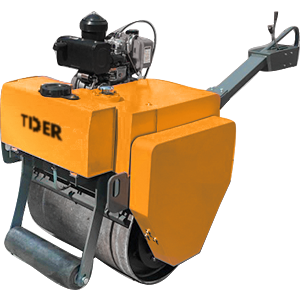

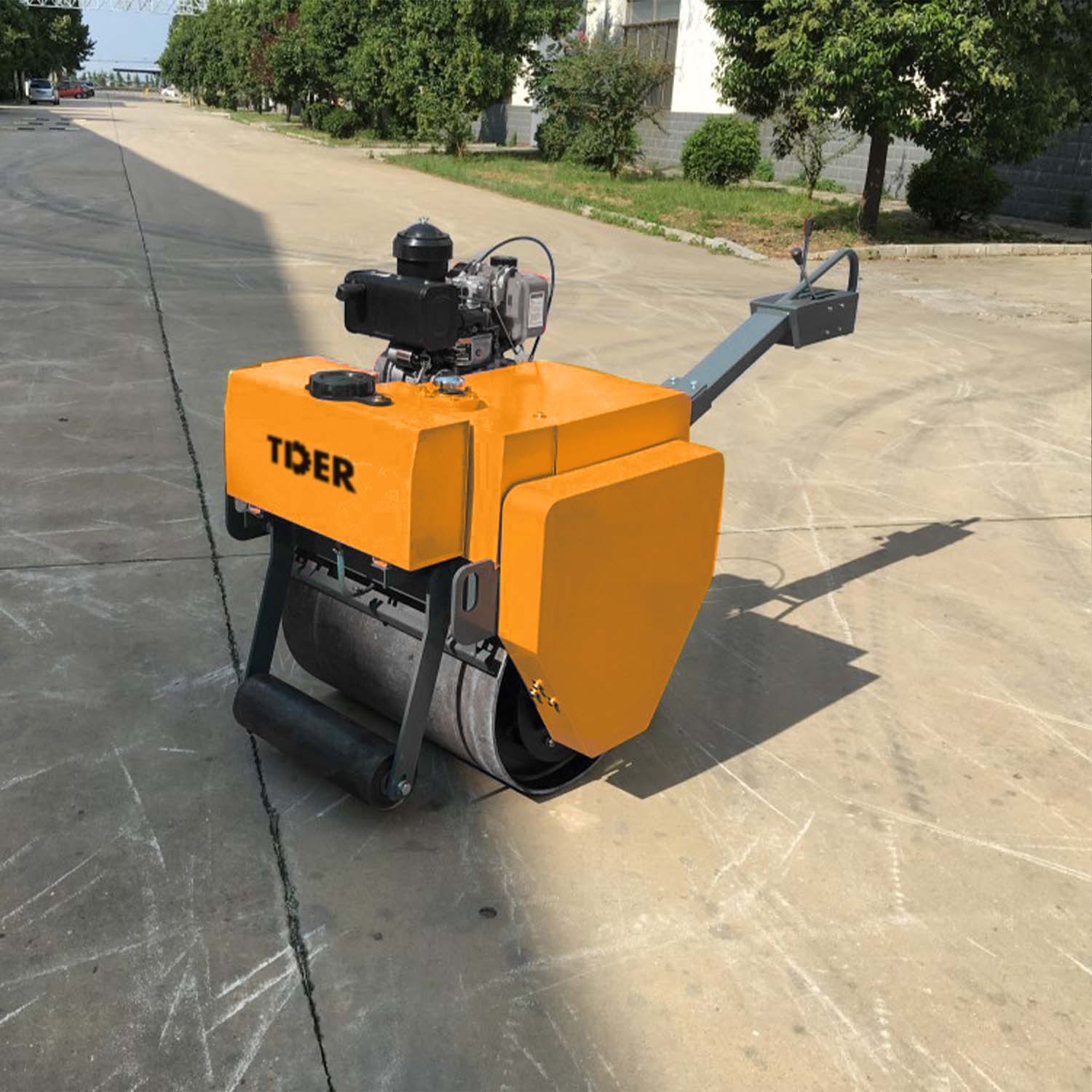

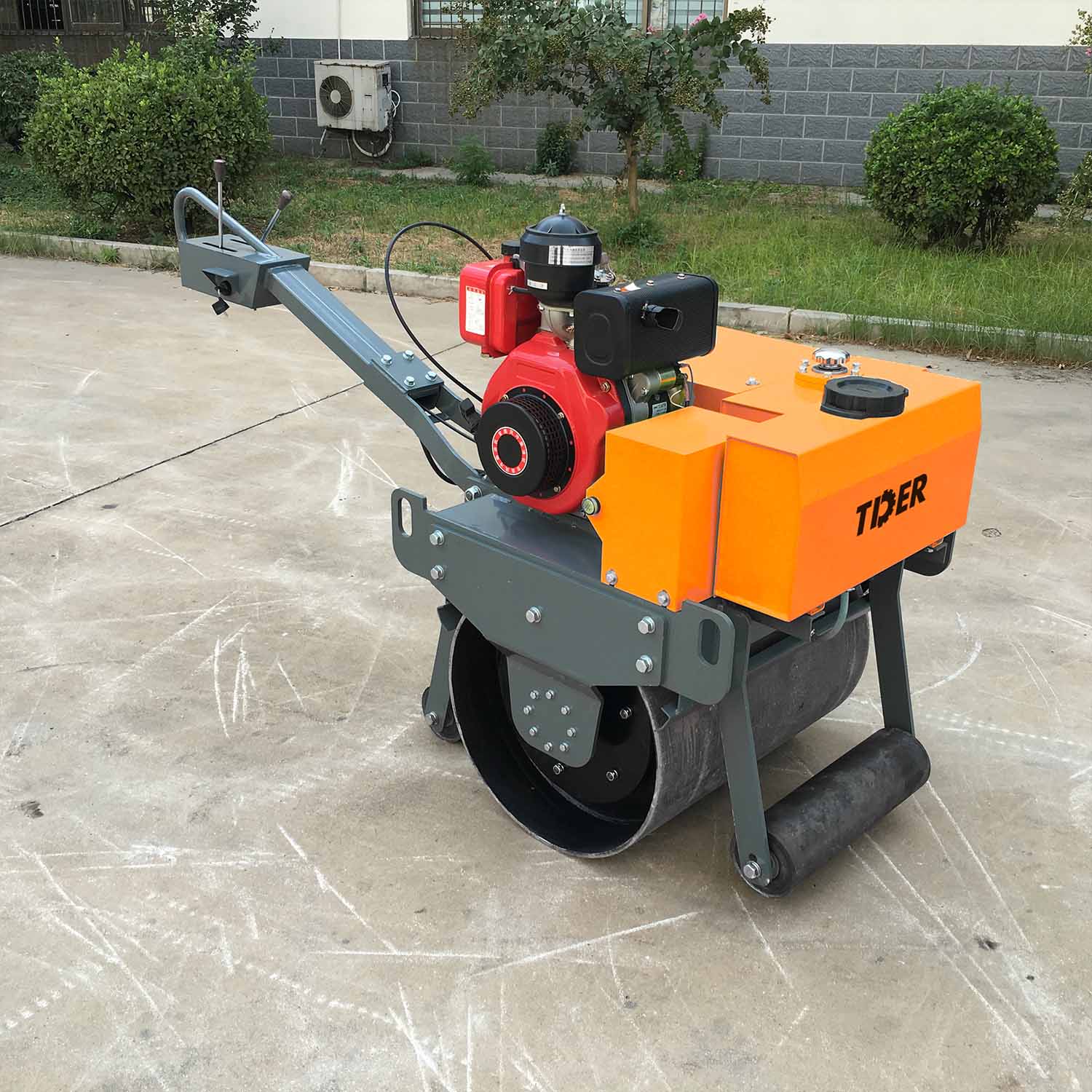

Name: 550kg Walk Behind Single Drum Vibratory Roller
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Compact Design for Confined Work Areas

The TR055 is designed for applications where working space is limited. Its compact single drum structure and small turning radius allow operators to work efficiently around narrow paths, edges, and restricted construction areas where larger equipment is difficult to access.

Mechanical Drive System with Simplified Reliability

Adopting a mechanical transmission system with single drum drive, the TR055 features a simple and durable power transfer structure. Combined with high-quality hydraulic components, the machine provides stable working performance with reduced system complexity.

Extended Handle Design for Easier Steering Control

The extended handle improves leverage during direction adjustment, making steering more convenient and reducing operator effort during operation. The ergonomic design helps operators maintain better control throughout daily compaction tasks.

Specifications

Dimensions	Overall Length	mm	2150
	Overall Width	mm	880
	Overall Height	mm	1870
	Package Dimensions	mm	1200 × 920 × 1920
Drum	Drum Type	—	Single Drum
	Drum Width	mm	700
	Drum Diameter	mm	530
Weight	Operating Weight	kg	550
Compaction Performance	Static Line Load	N/cm	45
	Vibration Frequency	Hz	70
	Vibration Amplitude	mm	0.6
	Exciting Force	kN	30
Engine	Engine Brand	—	Honda
	Engine Model	—	GX270
	Engine Type	—	Gasoline, 4-Stroke
	Number of Cylinders	—	1
	Output Power	kW	6.7
	Rated Speed	rpm	3600
Water Sprinkling System	Sprinkler Type	—	Gravity Shower
Capacities	Hydraulic Oil Capacity	L	1.1
	Fuel Tank Capacity	L	6.5
	Water Tank Capacity	L	15

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
