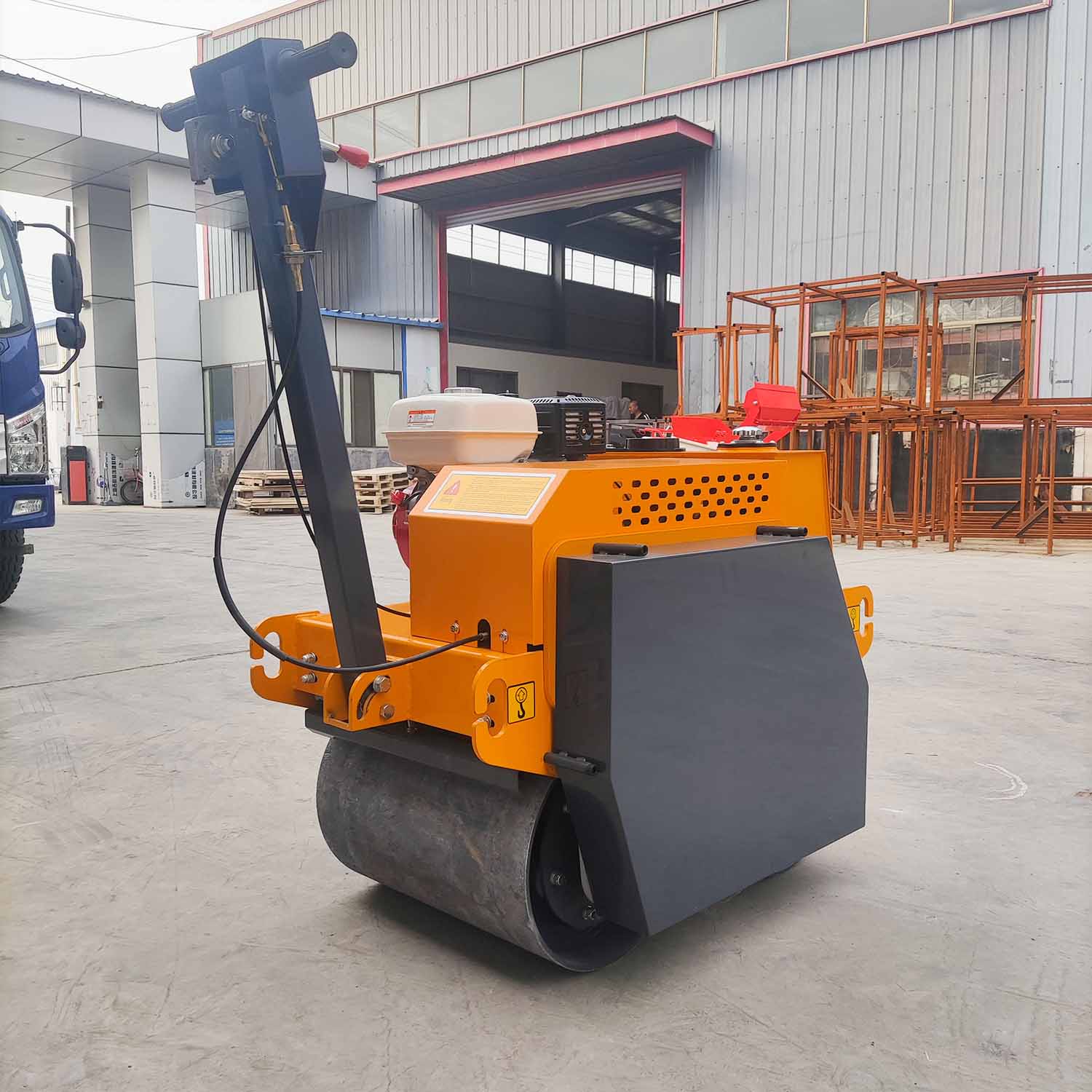

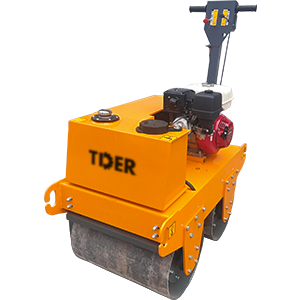

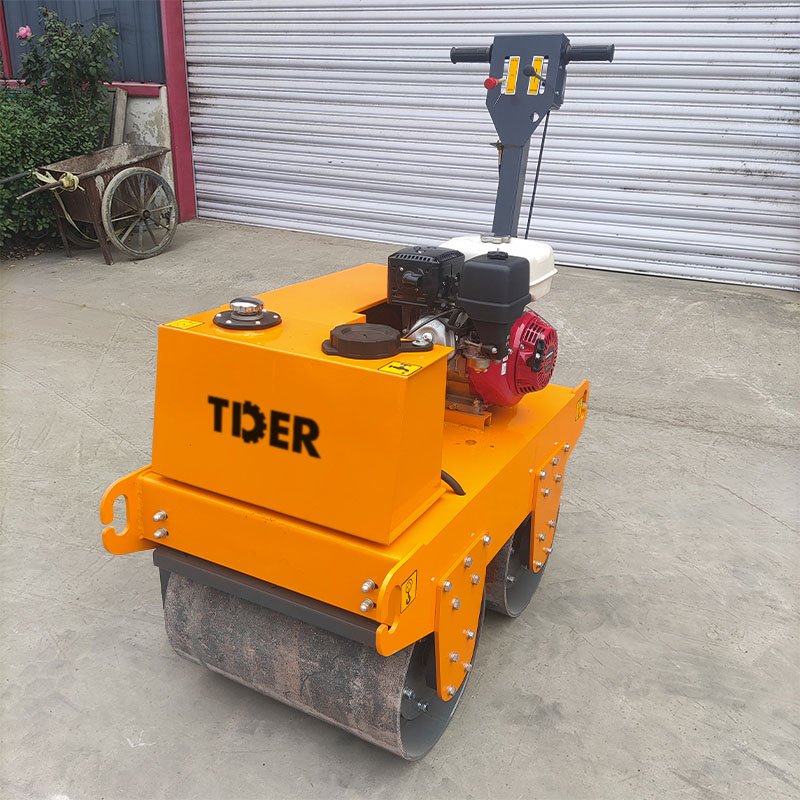

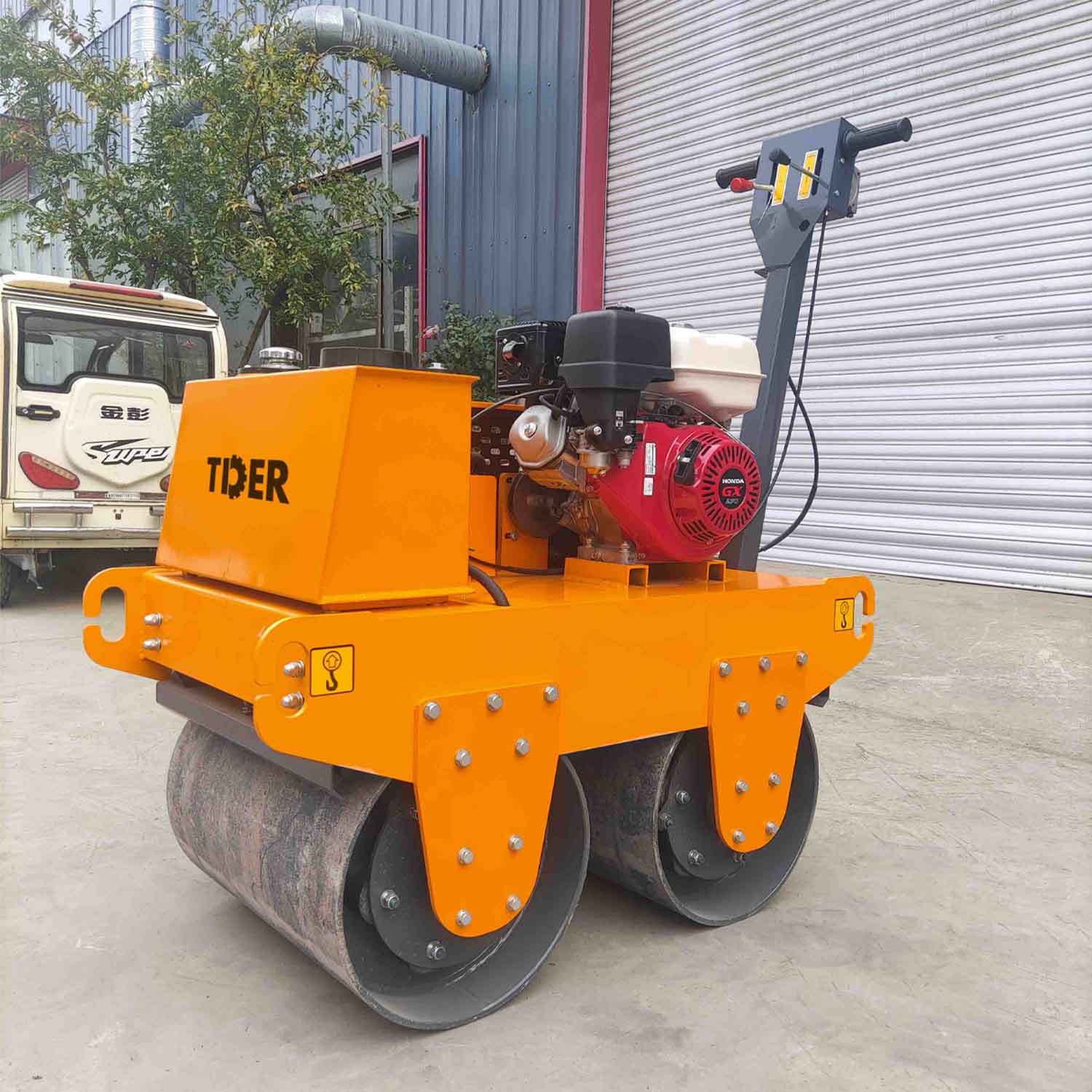

500kg Walk Behind Road Roller
TR05-II
Features
Dual Drum Hydraulic Drive for Stable Traction and Control
The TR05-II features a hydraulic dual drum drive system that delivers smooth power transmission and reliable traction during operation. The dual steel drum configuration improves machine balance and directional stability, allowing operators to achieve controlled movement and consistent performance across different working surfaces.
Dual Drum Vibration for Uniform Compaction Performance
Equipped with an automatic dual drum vibration system, the TR05-II provides 20kN × 2 centrifugal force and a 75Hz vibration frequency to achieve effective compaction results. The dual vibration design helps distribute compaction force evenly across asphalt, gravel, and soil foundations.
Ergonomic Adjustable Handle for Operator Comfort
The TR05-II is equipped with a flat gear adjustment mechanism on the armrest, allowing operators of different heights to adjust the handle position easily. This ergonomic design improves operating comfort and reduces fatigue during extended compaction tasks.
Specifications
| Travel System | Travel Speed | km/h | 0-6 |
| Gradeability | % | 30 | |
| Drive System | — | Hydraulic Double Drum Drive with Chain Transmission | |
| Engine | Engine Model | — | Honda GX270 Gasoline Engine |
| Engine Type | — | Gasoline Engine, Air-Cooled 4-Stroke | |
| Rated Power | hp/rpm | 9 / 3600 | |
| Optional Engines | — | Changfa 178 / Changchai R180 / Koop 178 / Briggs & Stratton (Other engines available upon request) | |
| Compaction Performance | Exciting Force | kN | 20 kN (Each Drum) |
| Nominal Amplitude | mm | 0.5 | |
| Vibration Frequency | Hz | 75 | |
| Vibration Type | — | Centrifugal Clutch + Dual Drum Belt-Driven Vibration | |
| Capacity | Fuel Tank Capacity | L | 3.5 |
| Water Tank Capacity | L | 20 | |
| Water Tank Material | — | Steel Water Tank (Standard) | |
| Hydraulic Oil Tank Capacity | L | 10 | |
| Working Specifications | Drum Width | mm | 600 |
| Drum Diameter | mm | 426 | |
| Dimensions | Overall Length (Handle Folded) | mm | 2450 |
| Overall Width | mm | 780 | |
| Overall Height (Handle Raised) | mm | 1520 | |
| Weight | Net Weight | kg | 480 |
| Operating Weight | kg | 510 | |
| Packaging | Fumigation-Free Wooden Case Package | mm | 1380 × 830 × 1300 |
| Steel Frame Stackable Package | mm | 1380 × 830 × 2260 |
*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.
