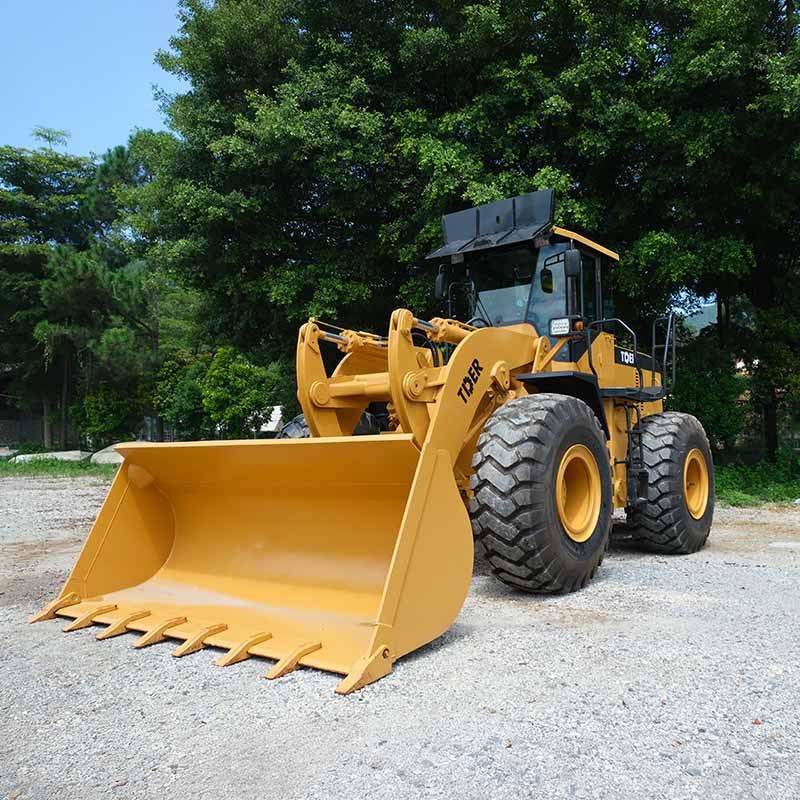

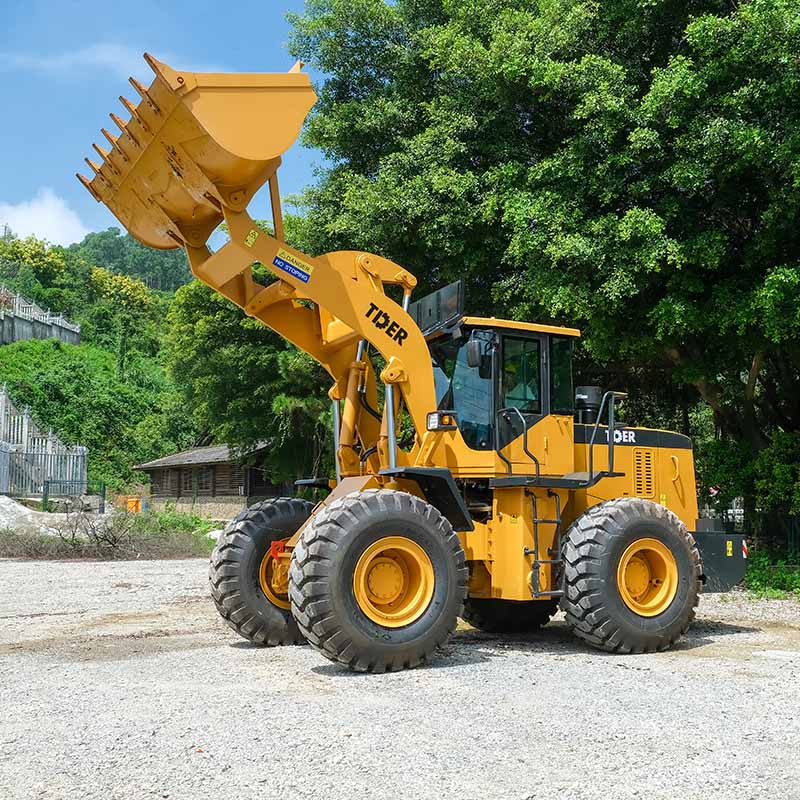

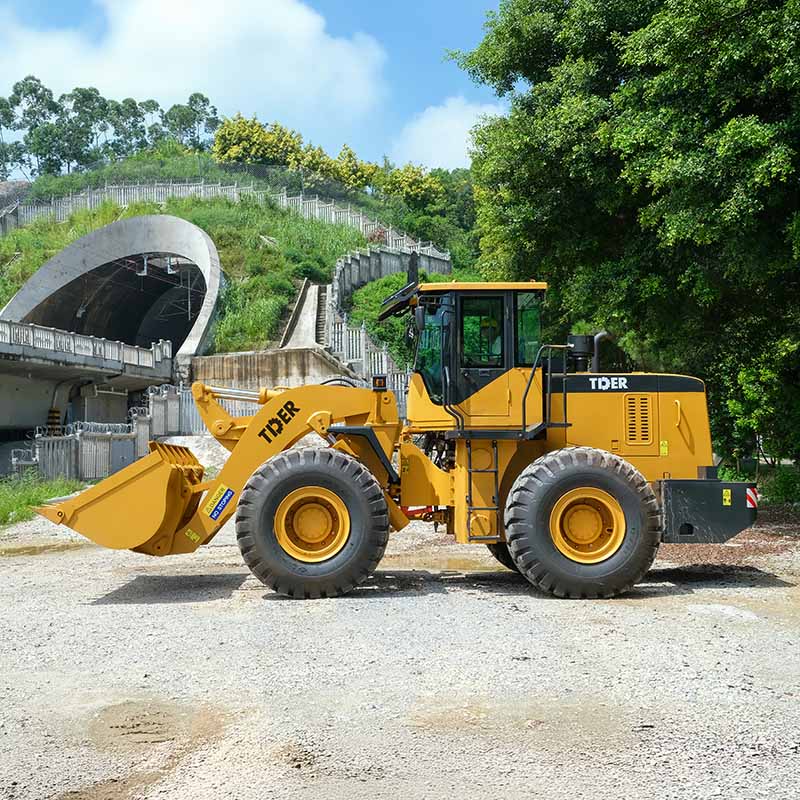

5 Ton Wheel Loader
ZT955
Features
Enhanced Maneuverability with Short Wheelbase Design
TDER ZT906 offers flexible engine choices including Cummins, Weichai, Kubota, Yanmar, and Fiat, all available with EPA and Euro V compliant configurations. Customers can select the most suitable engine based on different regional emission standards and working requirements worldwide, ensuring maximum compliance, efficiency, and operational flexibility.
Stable Heavy-Duty Lifting Performance with Double Boom Structure
Combined with a double boom structural system, the machine enhances lifting stability and load distribution during heavy-duty operations, ensuring safe and efficient material handling without performance loss.
Premium Brand Tire System
Equipped with Advance brand 23.5-25 heavy-duty tires, providing excellent load-bearing capacity, wear resistance, and operational stability across a wide range of demanding working conditions such as construction sites, material yards, ports, and earthmoving applications.
Multi-Level Transmission Configuration for Different Working Needs
ZT955 is designed with a wide range of transmission configurations, from proven cost-effective Hangchi gearbox to advanced ZF WG180 electronic control system and domestic ZF-based 4WG200 series. This allows users to select the most suitable drivetrain solution according to operational intensity, budget considerations, and regional market requirements, ensuring optimal balance between performance and cost efficiency.
Stable Heavy-Duty Performance with Efficient Hydraulic Response
The machine is equipped with Jinan hydraulic pump system, Longgong control valves, and Longgong cylinders, combined with a reinforced chassis structure and floating bucket function, providing strong hydraulic output and consistent system stability under continuous load conditions.
Specifications
| Rated Load | kg | 5000 |
| Bucket Width | mm | 3000 |
| Bucket Capacity | m³ | 3 |
| Overall Dimension | mm | 7600*3000*3350 |
| Operating Weight | kg | 16500 |
| Max. Dumping Height | mm | 3180 |
| Max. Dumping Distance | mm | 1250 |
| Wheel Base | mm | 2760 |
| Wheel Tread | mm | 2250 |
| Engine | WeiChai | |
| Rated Power | kw | 162 |
| Rated Speed | r/min | 2200 |
| Tire Size | 23.5-25 |
