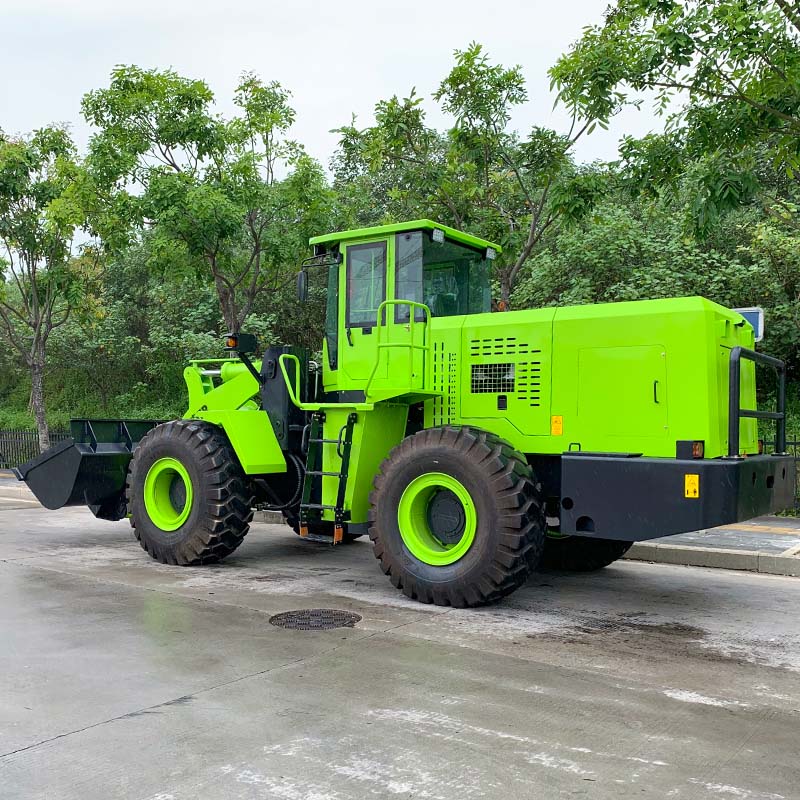

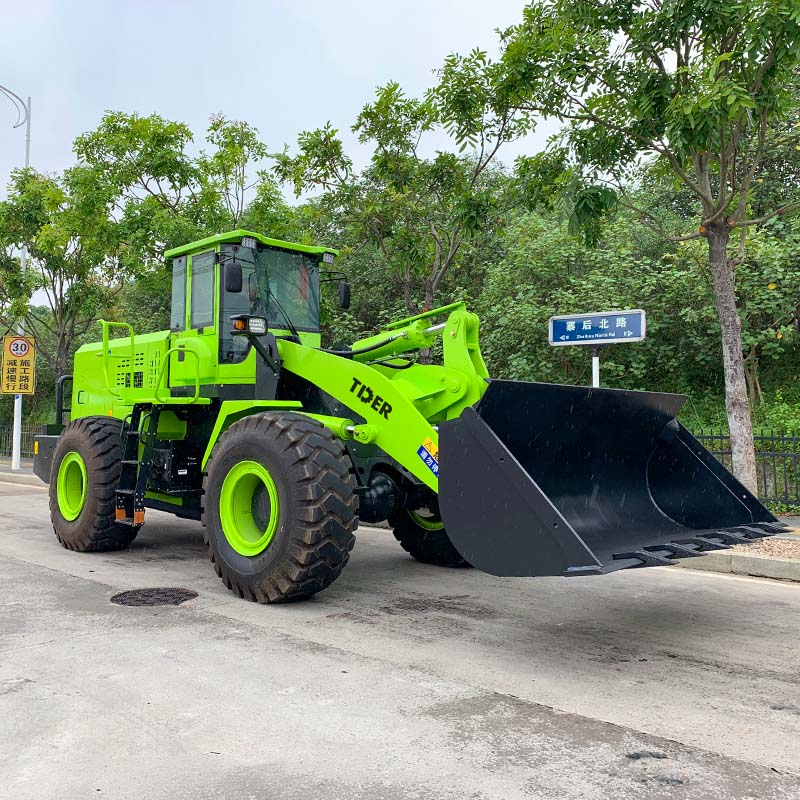

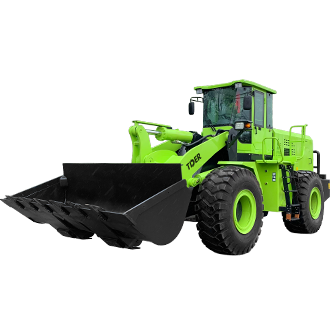

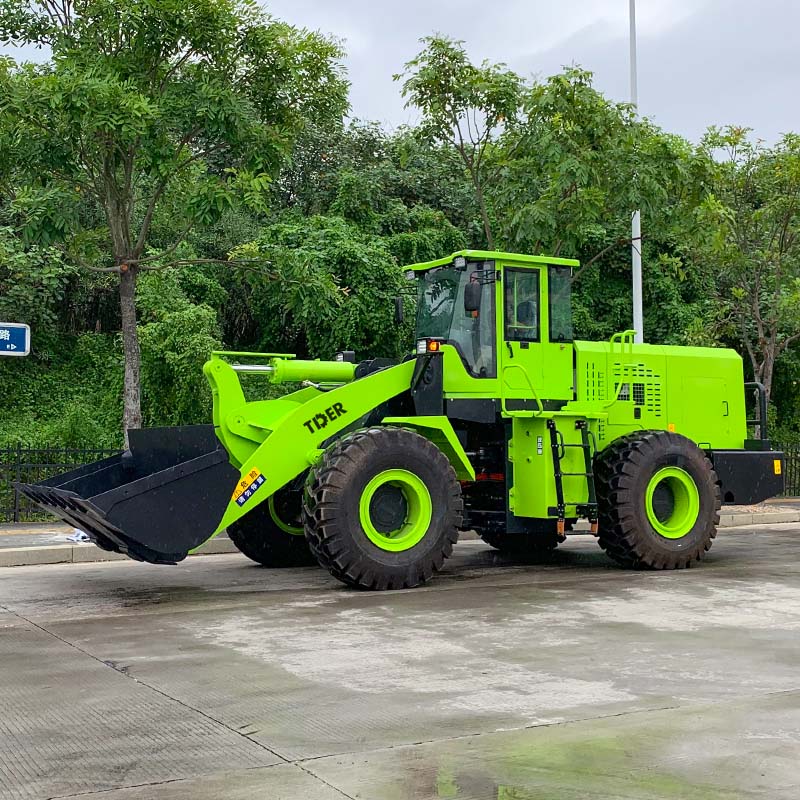

5.0 Ton Electric Loader
ZT950EV
Features
Third-Generation Switched Reluctance Motor System for Efficient Power Output
The ZT950EV adopts third-generation switched reluctance motor technology with independent electric drive and hydraulic power systems. The high-efficiency motor architecture delivers strong response, optimized energy conversion, and reliable performance during frequent loading cycles while reducing mechanical wear compared with traditional power systems.
Intelligent Electric Control Platform for Smarter Operation
The integrated vehicle control system improves energy management, operating efficiency, and machine response through intelligent power coordination. The electric architecture simplifies operation, reduces unnecessary energy consumption, and provides a safer and more comfortable working experience for operators during long-hour applications.
Low-Maintenance Pure Electric Platform with Zero Emission Operation
The pure electric power system eliminates traditional engine-related maintenance requirements while producing zero exhaust emissions and lower operating noise. The simplified drivetrain structure reduces routine service needs and helps operators achieve lower lifecycle operating costs in environmentally sensitive working environments.
Fast Charging Battery Solution for Higher Equipment Utilization
The large-capacity battery system supports convenient charging solutions to reduce downtime between working cycles. The optimized charging design helps maintain machine availability and allows operators to maximize productive operating hours throughout daily operations.
Specifications
| Rated Load | kg | 5000 | |
| Bucket Capacity | m³ | 3 | |
| Operating Weight | kg | 18500 | |
| Rated Power | kW | 270 | |
| Dumping Height | mm | 3350 | |
| Dumping Reach | mm | 1250 | |
| Wheelbase | mm | 3350 | |
| Wheel Tread | mm | 2250 | |
| Max. Traction Force | kN | 170 | |
| Max. Breakout Force | kN | 174 | |
| Total Cycle Time | s | 9.7 | |
| Lifting Time | s | 5.8 | |
| Dumping Time | s | 3.5 | |
| Max. Climbing Angle | ° | 28 | |
| Turning Angle | ° | 40 | |
| Forward Gear I / II | km/h | 18 / 36 | |
| Reverse Gear I | km/h | 18 / 36 | |
| Overall Dimensions (L × W × H) | mm | 8660 × 2960 × 3520 | |
| Drive Axles | - | Dry Bridge | |
| Service Brake | - | Gas-over-oil, Clamp Disc Type | |
| Hand Brake | - | Pneumatic Control, Clamp Type | |
| Air Conditioning System | - | Electric Heating and Cooling | |
| System Voltage | V | DC 24 | |
| Tire Model | - | 23.5-25 | |
| Battery Life | h | 4–5 | |
| Charging Time | min | 60 (300 kW Charging Pile) | |
| Power Battery System | Battery Type | - | Lithium Iron Phosphate Battery |
| Rated Capacity | - | 618V / 456Ah | |
| Energy Storage Capacity | kWh | 282 | |
| Nominal Voltage | V | 618 | |
| Working Hydraulic System | Type | - | Double Pump Confluence |
| Operation Method | - | Pilot Control | |
